Product ID: AK3212

AK3212 3.25" X 3/4" AK Single Groove V-Pulley

MFG: New Standard Power Transmission
MFG Part Number: AK32-3/4

Available Stock: 1
Selected accessories will also be added to cart
$11.17 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number AK3212
Bore 3/4"
Sheave Cross Section AK
Outside Diameter 3.25"
Pulley Diameter “A” 3.00"
Pulley Diameter “3L” 2.66"

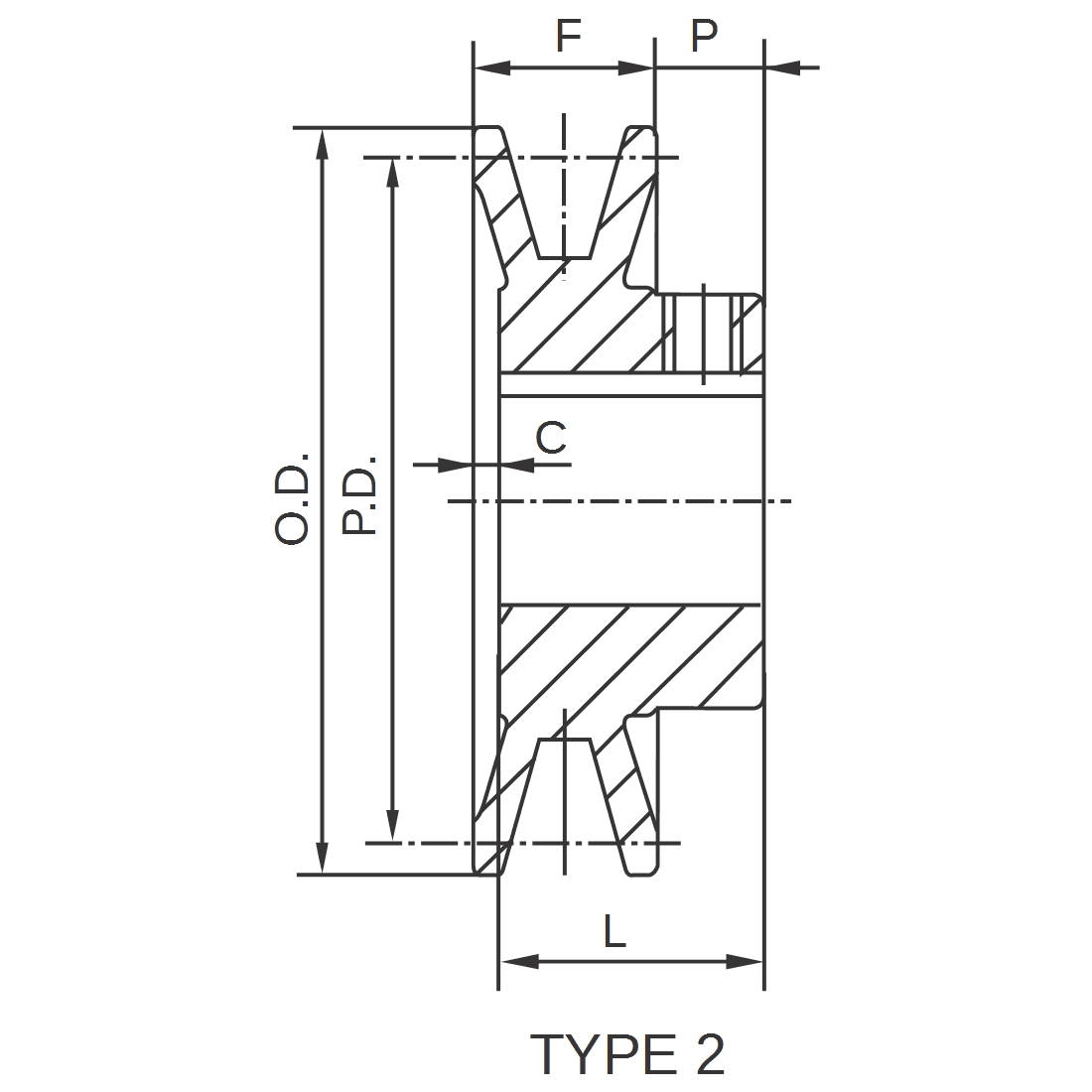

Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.8 lbs

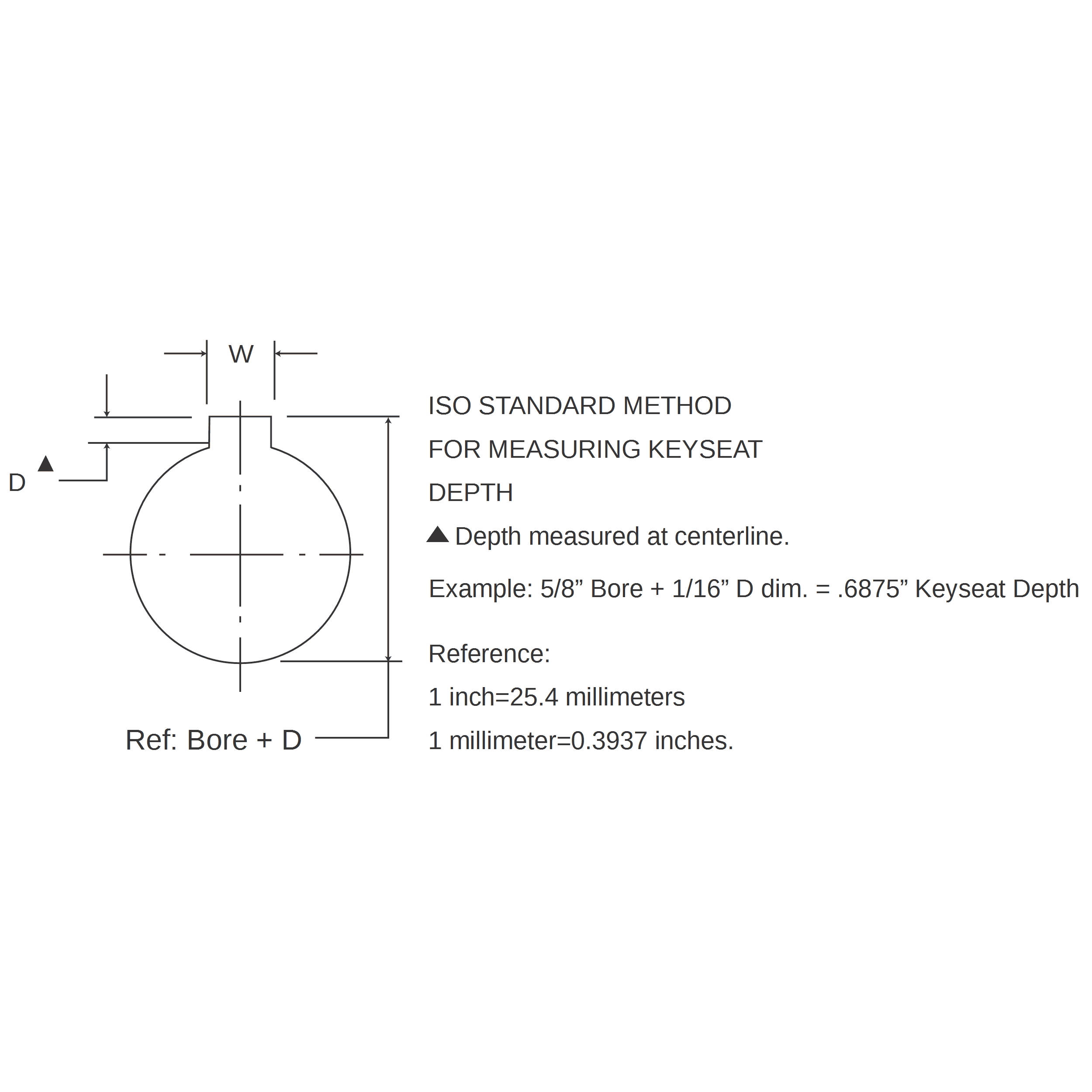

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
