/Products/Pulleys & Sheaves/AK Single Groove/AK3408 3.45" X 1/2" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK3408

AK3408 3.45" X 1/2" AK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: AK34X1/2

Available Stock: 2
Selected accessories will also be added to cart
$12.16 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Various
Part Number AK348
AK3408
AK34X1/2
Bore 1/2""

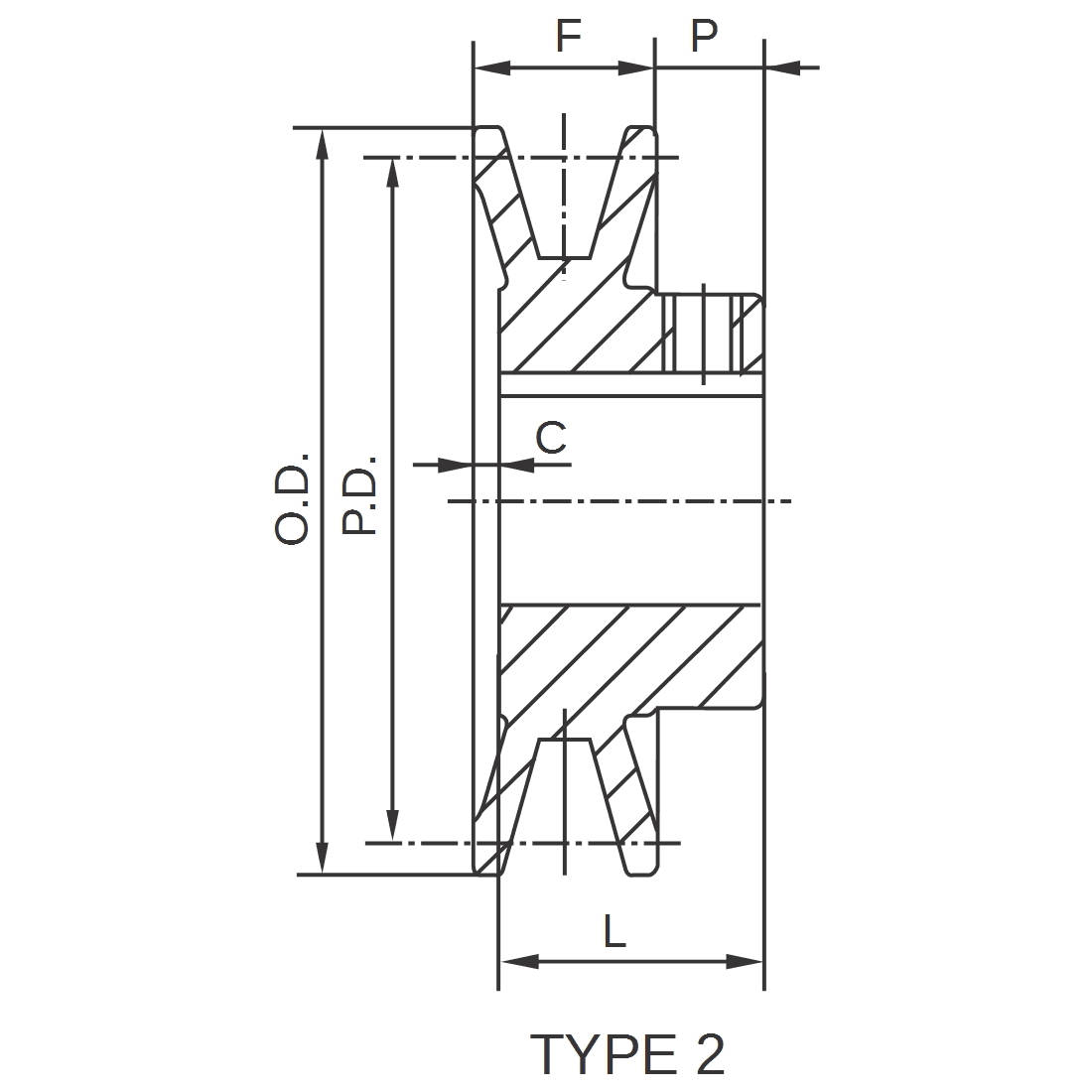

Sheave Cross Section AK
Outside Diameter 3.45"
Pulley Diameter “A” 3.20"
Pulley Diameter “3L” 2.86"
Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.9 lbs
Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
