Product ID: AK3410

AK3410 AMEC 3.45" x 5/8" AK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: AK34X5/8

Temporarily out of stock
Selected accessories will also be added to cart
$19.79 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number AK3410

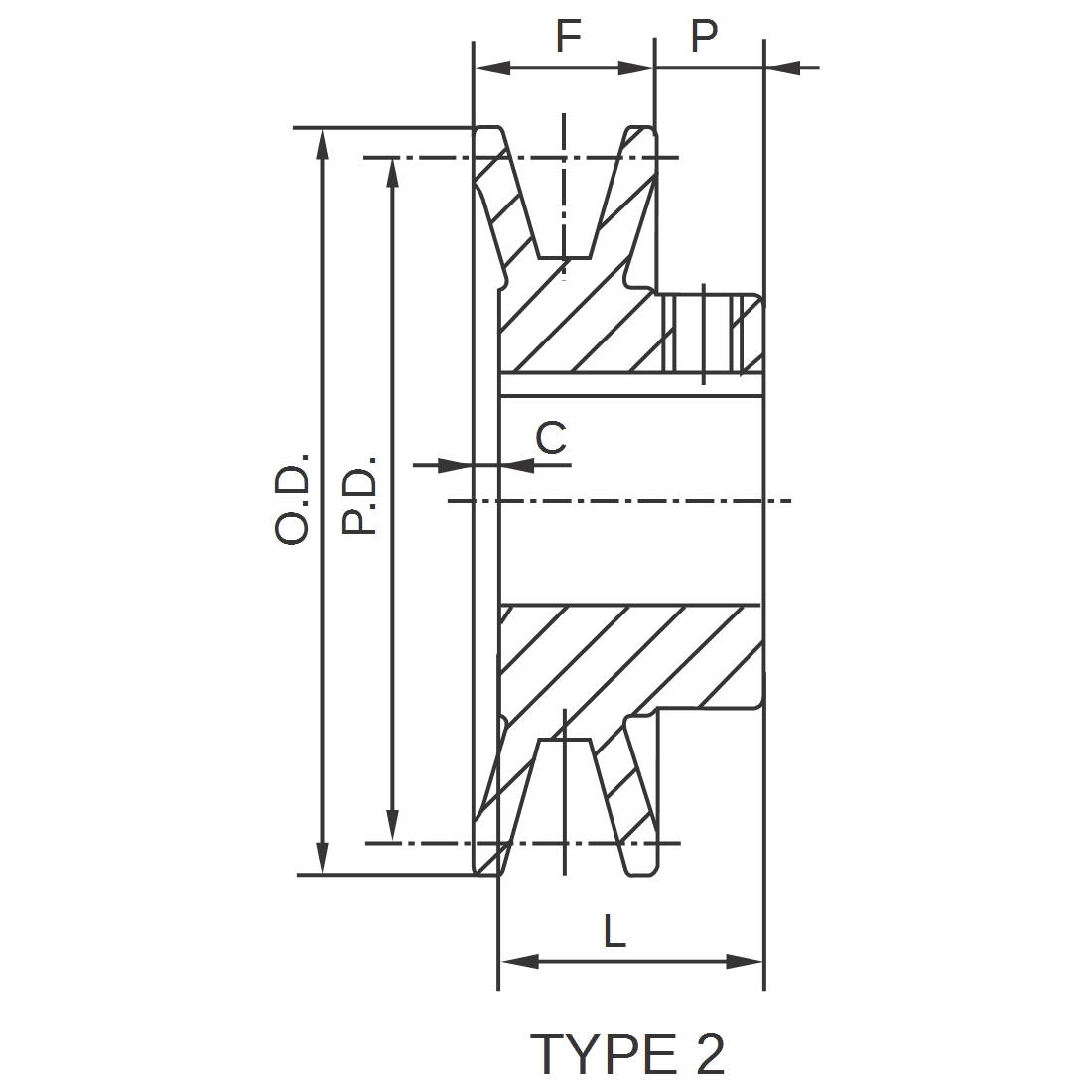

Bore 5/8"
Sheave Cross Section AK
Outside Diameter 3.45"
Pulley Diameter “A” 3.20"
Pulley Diameter “3L” 2.86"
Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.9 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin
