Product ID: AK3414

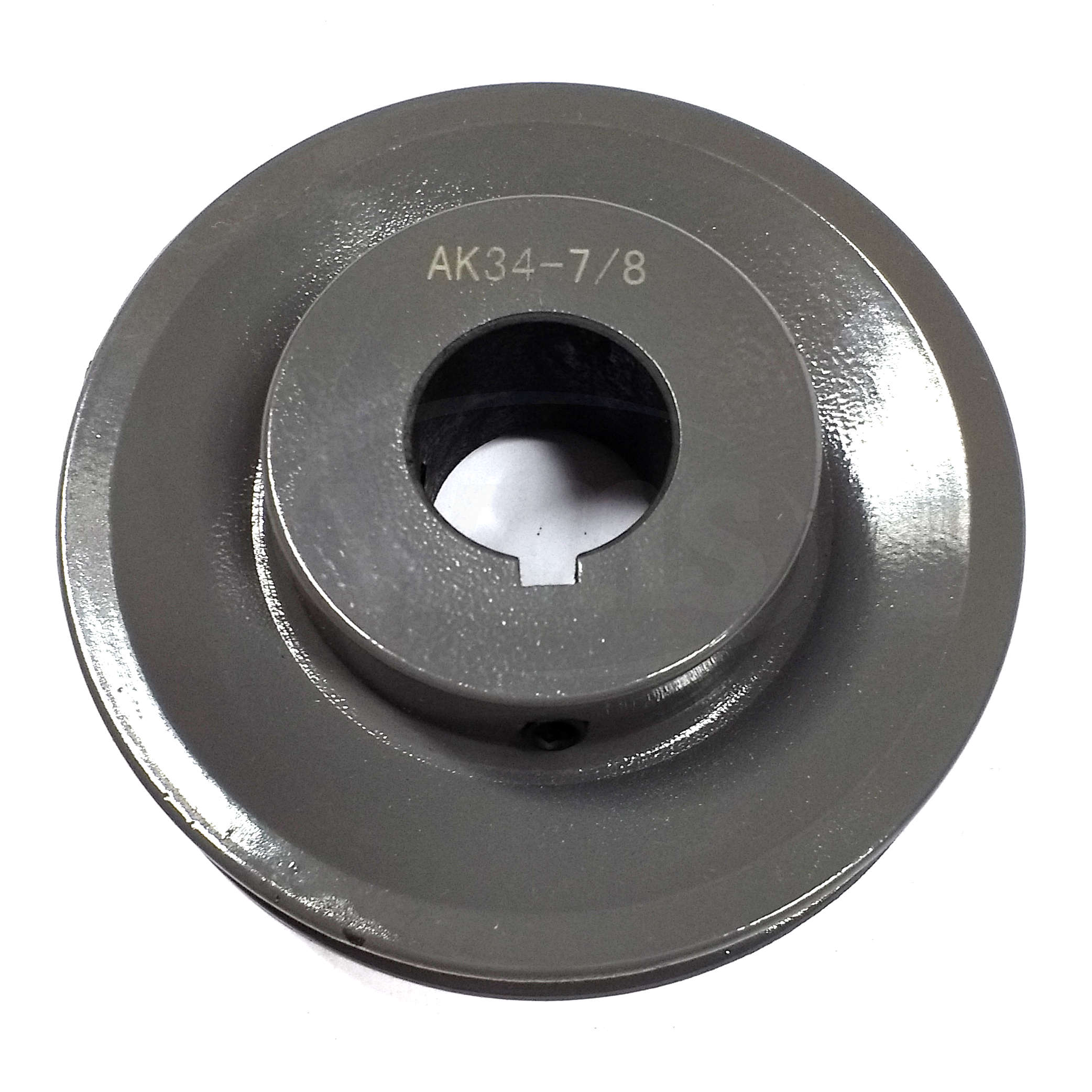

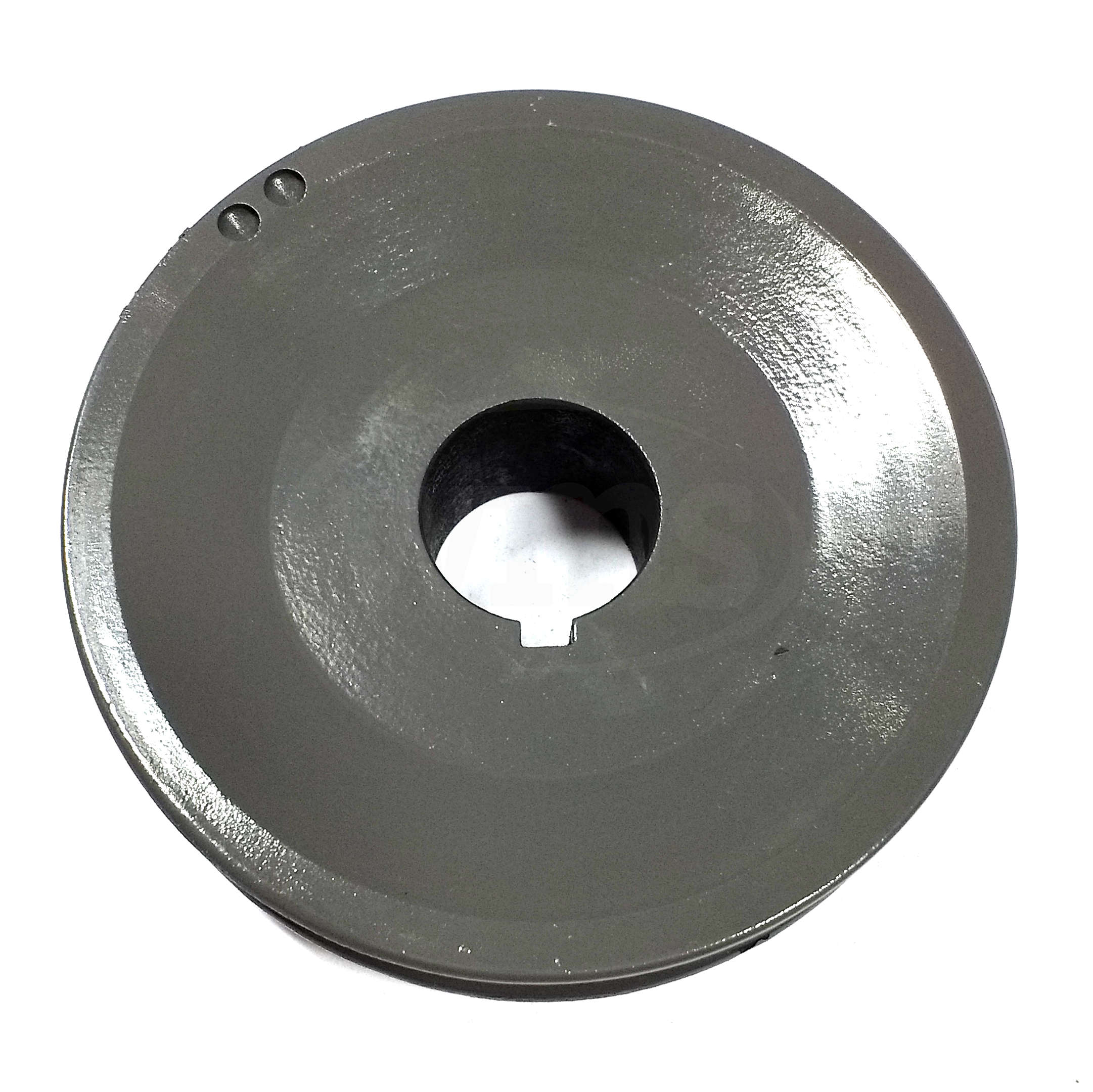

AK3414 3.45" X 7/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK34X7/8

Temporarily out of stock
Selected accessories will also be added to cart
$13.98 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number AK3414
Bore 7/8"
Sheave Cross Section AK
Outside Diameter 3.45"
Pulley Diameter “A” 3.20"
Pulley Diameter “3L” 2.86"
Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.9 lbs

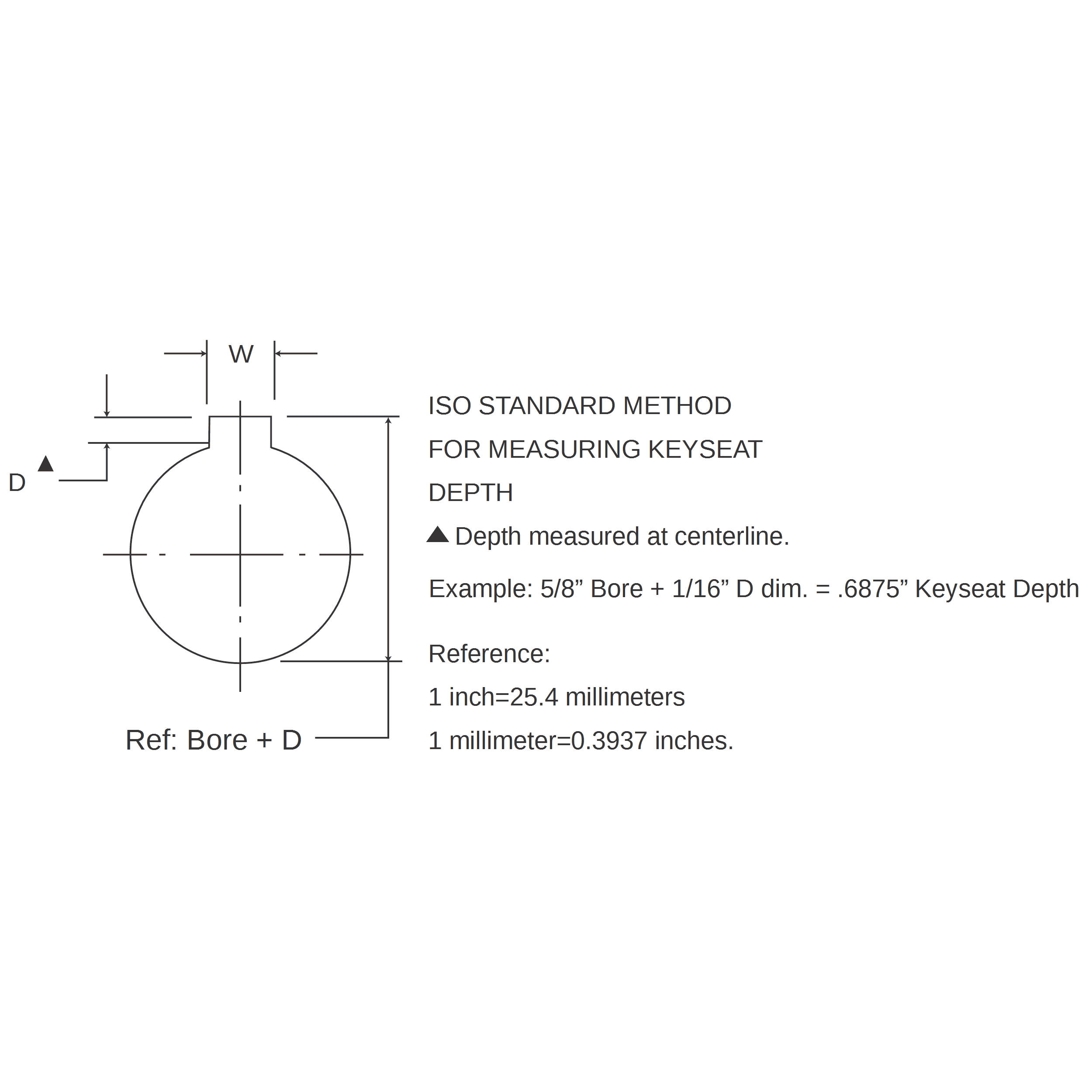

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin China
UPC 624832030372
