Product ID: AK3908

AK3908 3.75" X 1/2" AK Single Groove V-Pulley

Selected accessories will also be added to cart
$5.60 / Each
Quantity:

Available Stock: 3

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number AK398
AK3908
AK39X1/2
Bore 1/2"

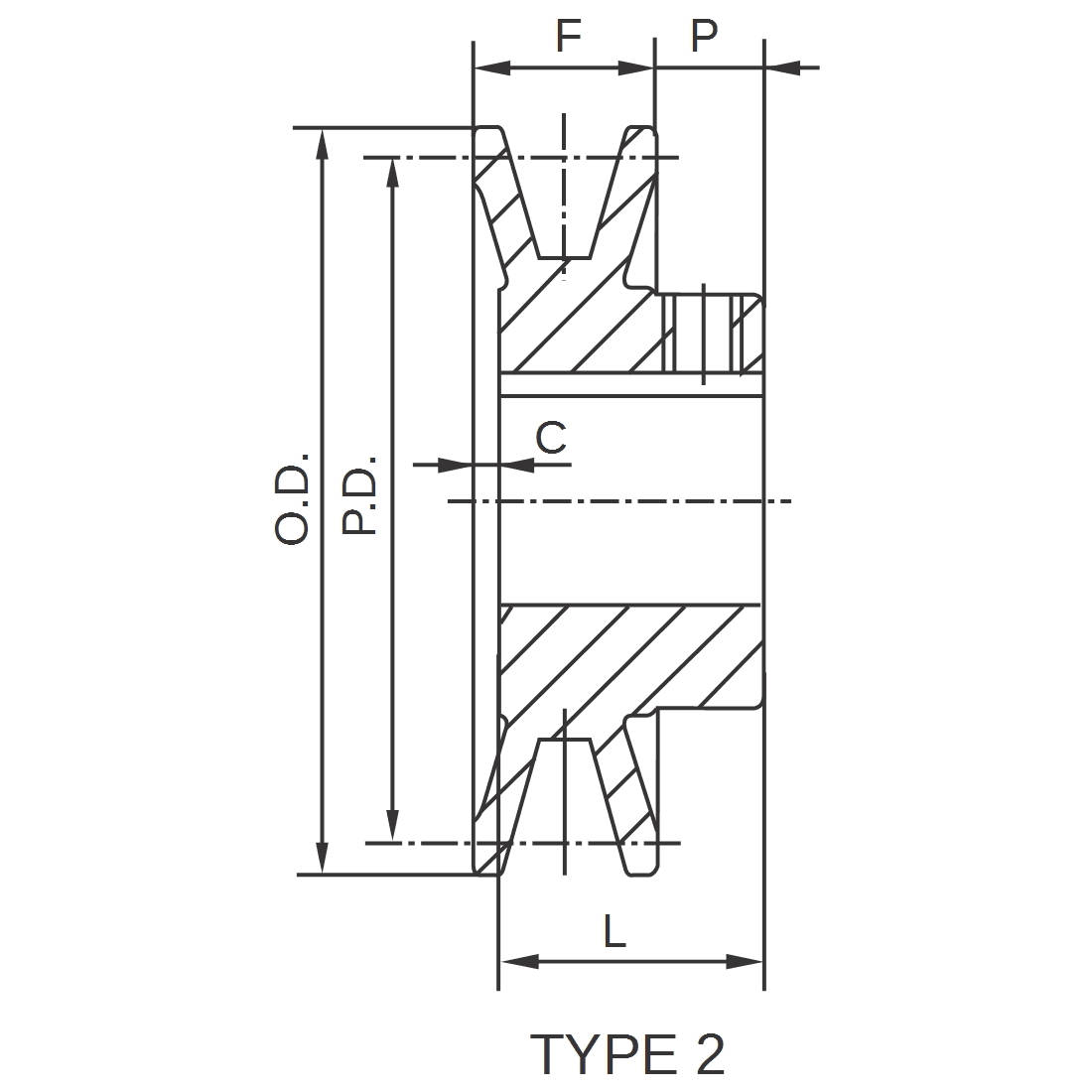

Sheave Cross Section AK
Outside Diameter 3.75"
Pulley Diameter “A” 3.50"
Pulley Diameter “3L” 3.16"
Type 2
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 1.4 lbs

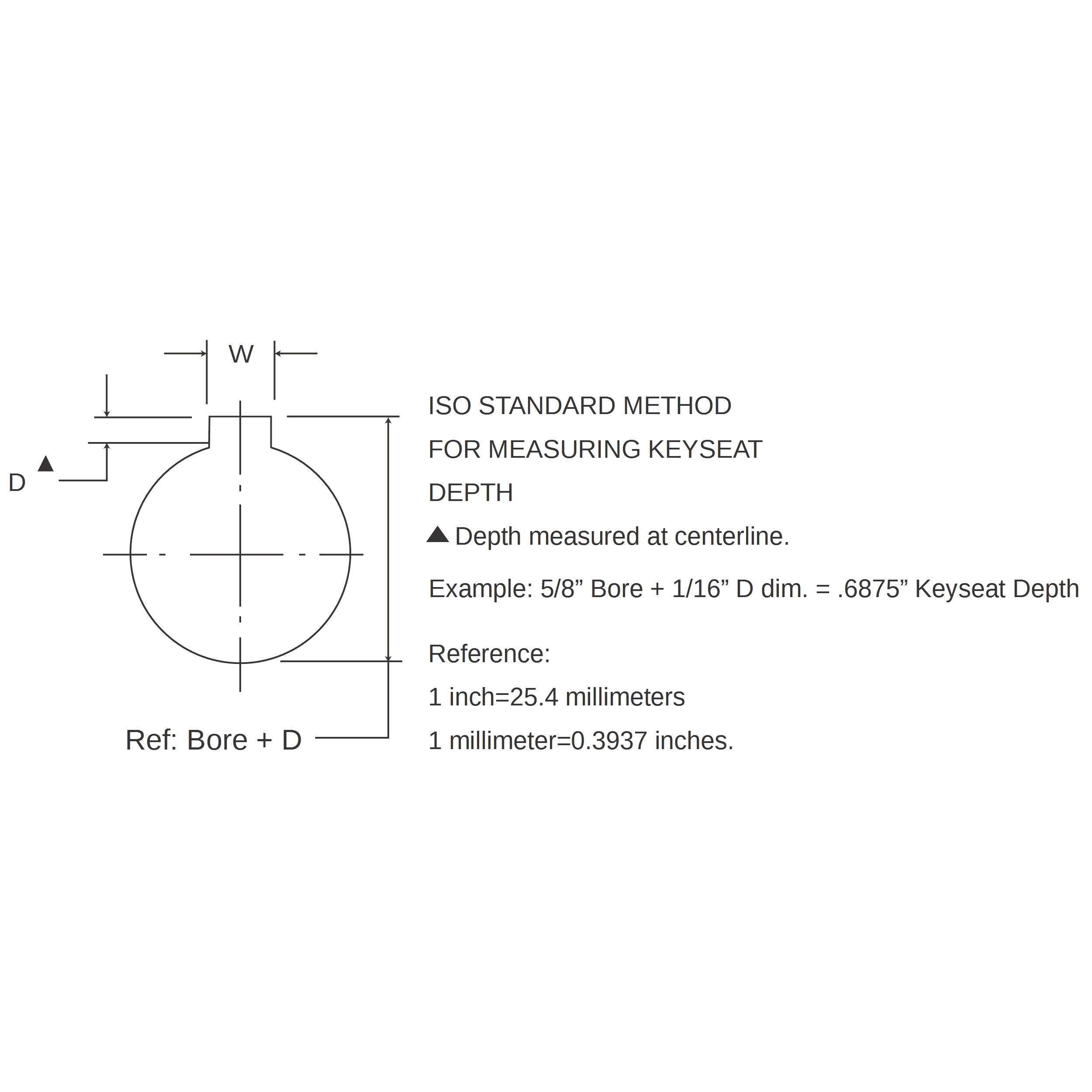

Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
