/Products/Pulleys & Sheaves/AK Single Groove/AK3910 3.75" X 5/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK3910

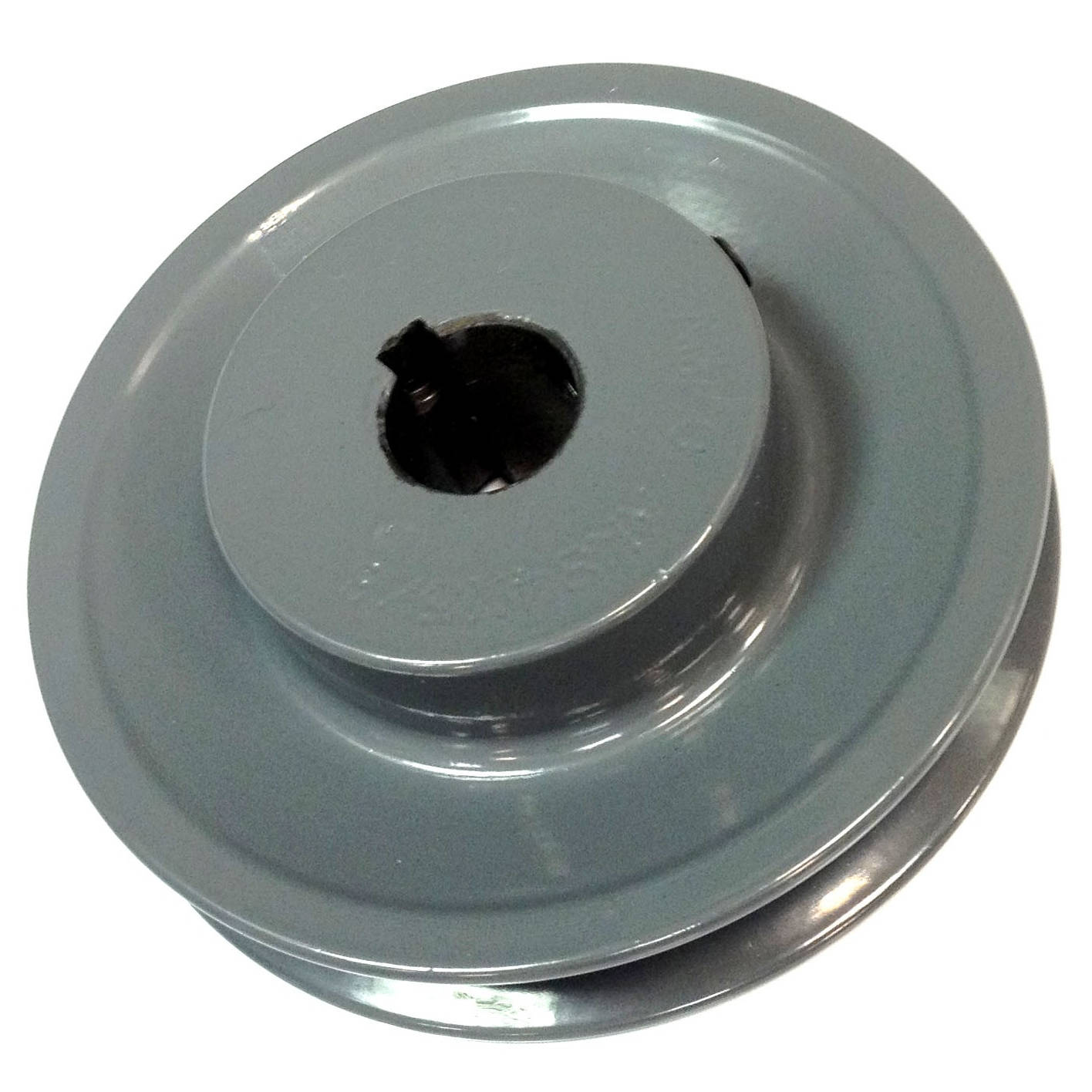

AK3910 3.75" X 5/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK39X5/8

Available Stock: 7
Selected accessories will also be added to cart
$22.96 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number AK3910
Bore 5/8"
Sheave Cross Section AK
Outside Diameter 3.75"

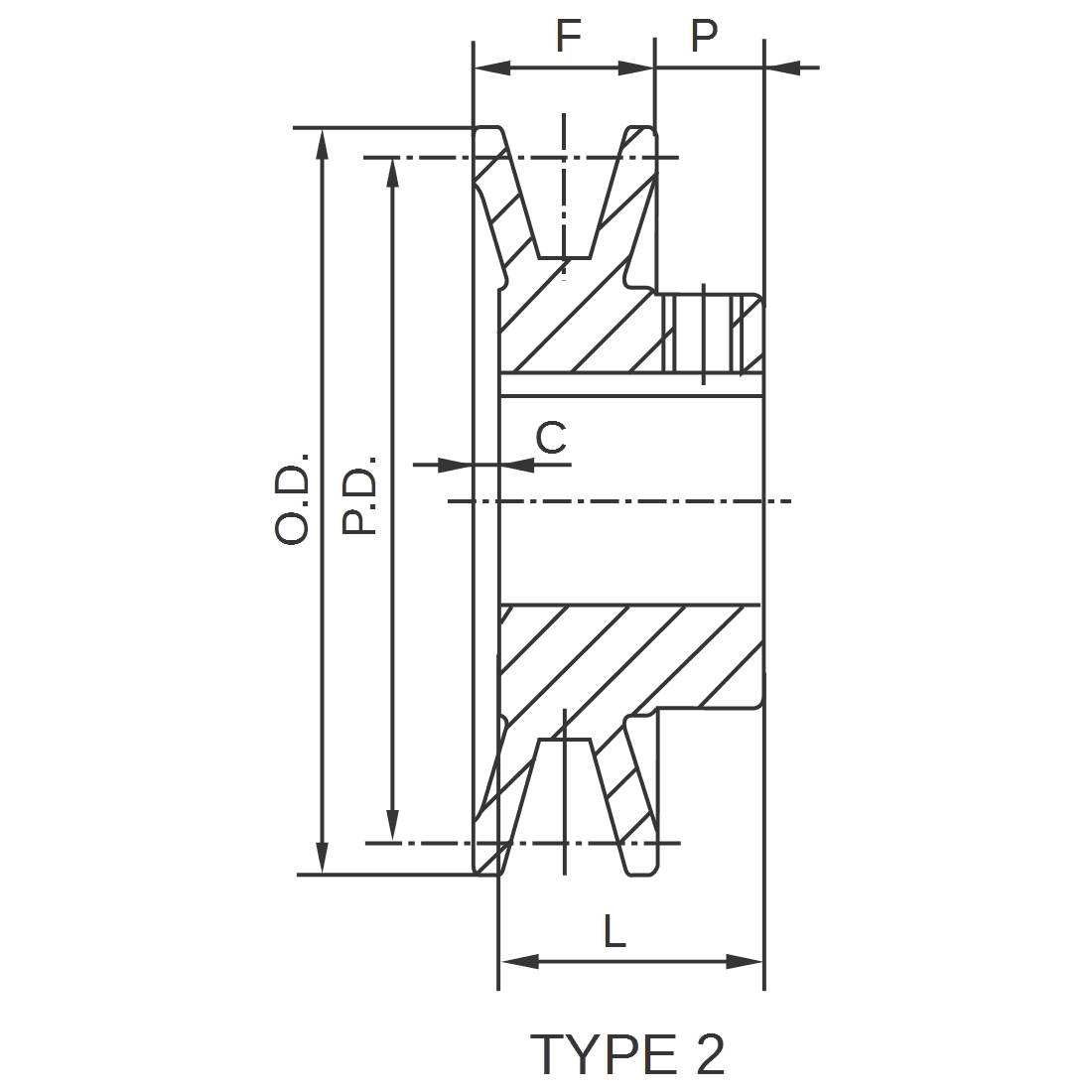

Pulley Diameter “A” 3.50"
Pulley Diameter “3L” 3.16"
Type 2
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 1.4 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin China
UPC 624832030396
