/Products/Pulleys & Sheaves/AK Single Groove/AK3914 3.75" X 7/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK3914

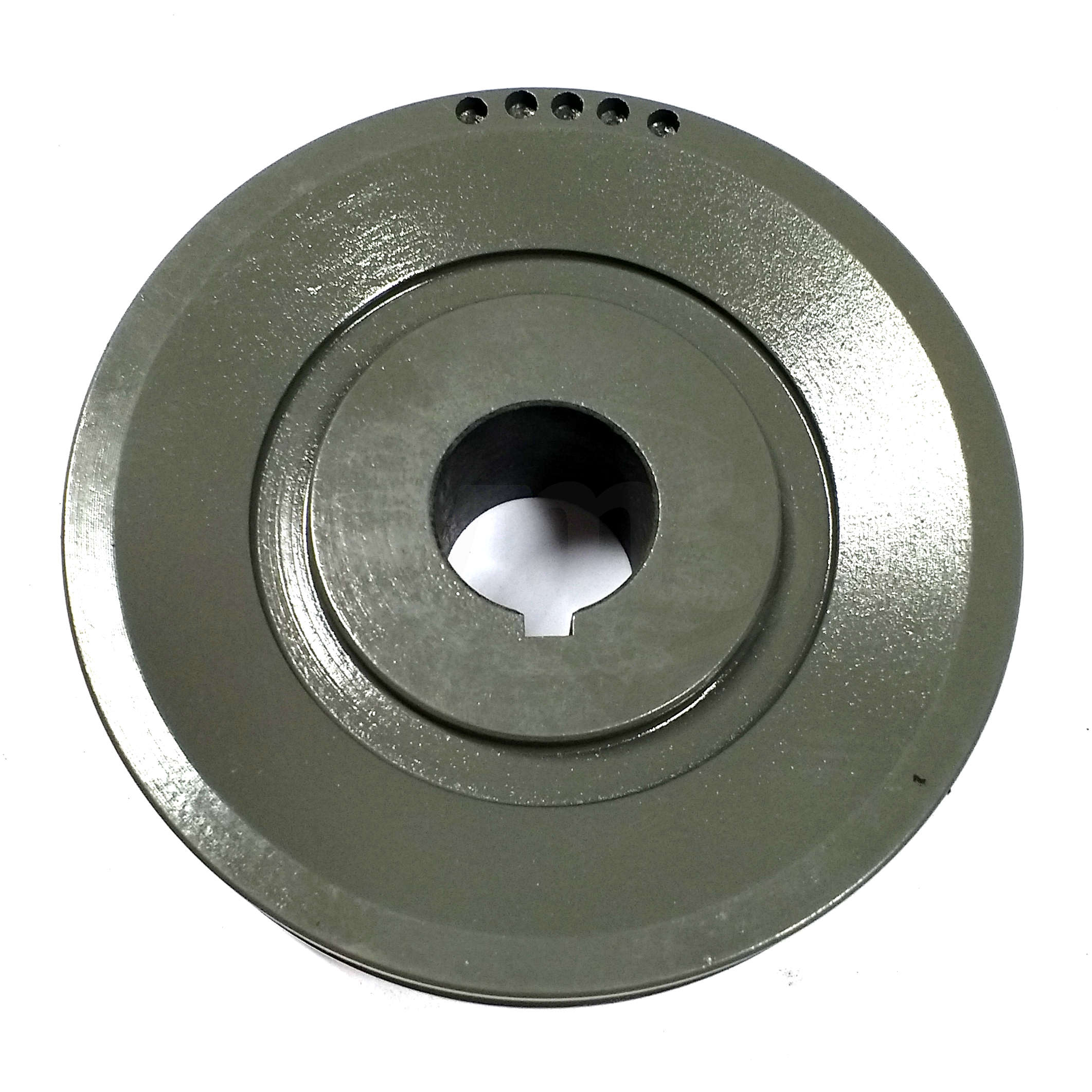

AK3914 3.75" X 7/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK39X7/8

Available Stock: 3
Selected accessories will also be added to cart
$16.22 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967

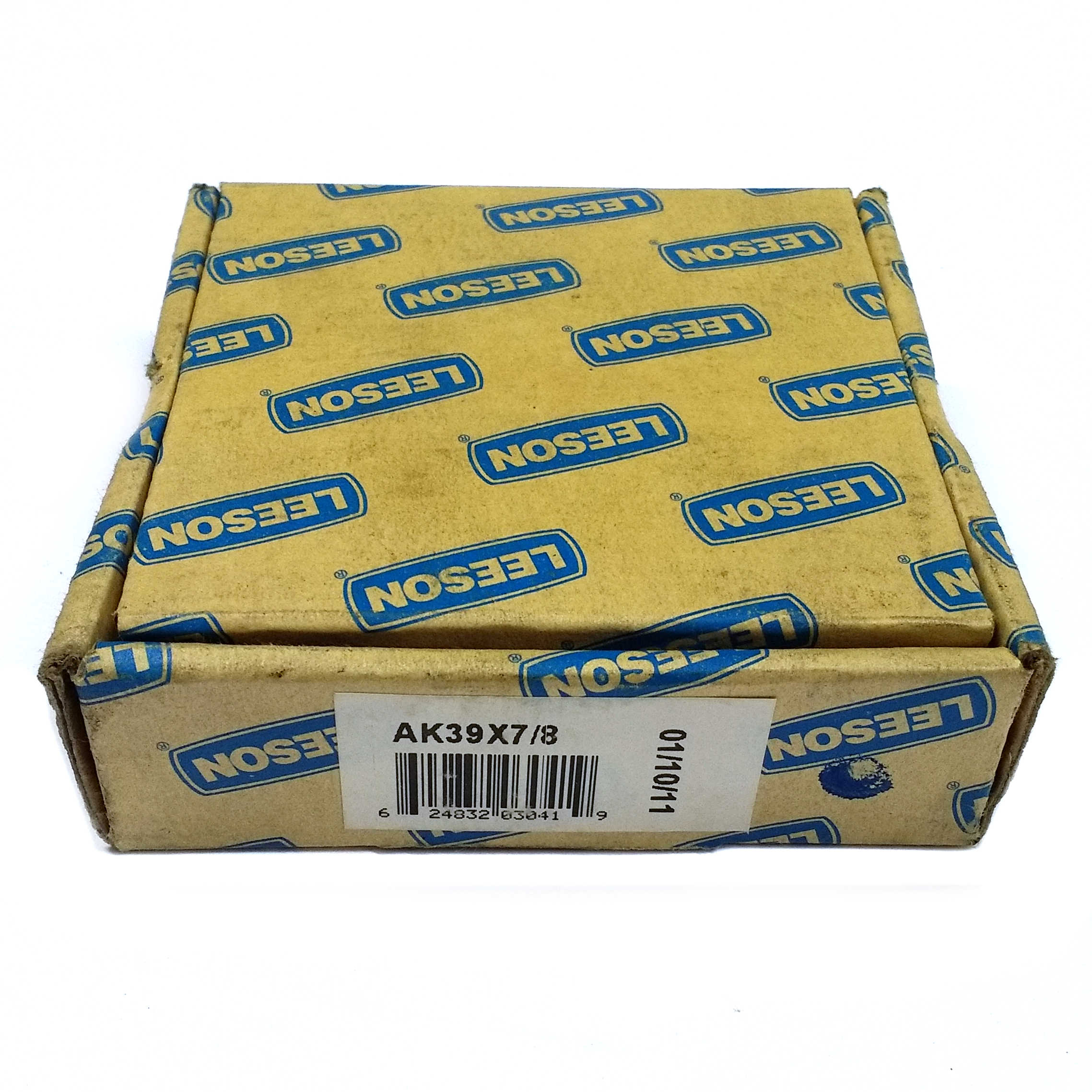

• Individually packaged
Brand Leeson
Part Number AK39x7/8
AK3914
Bore 7/8"
Sheave Cross Section AK
Outside Diameter 3.75"
Pulley Diameter “A” 3.50"
Pulley Diameter “3L” 3.16"
Type 2
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 1.4 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin China
UPC 624832030419
