/Products/Pulleys & Sheaves/AK Single Groove/AK4114 3.95" X 7/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK4114

AK4114 3.95" X 7/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK41X7/8

Available Stock: 1
Selected accessories will also be added to cart
$17.34 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Various
Part Number AK4114
AK41X7/8
Bore 7/8"
Sheave Cross Section AK
Outside Diameter 3.95"
Pulley Diameter “A” 3.70"
Pulley Diameter “3L” 3.36"

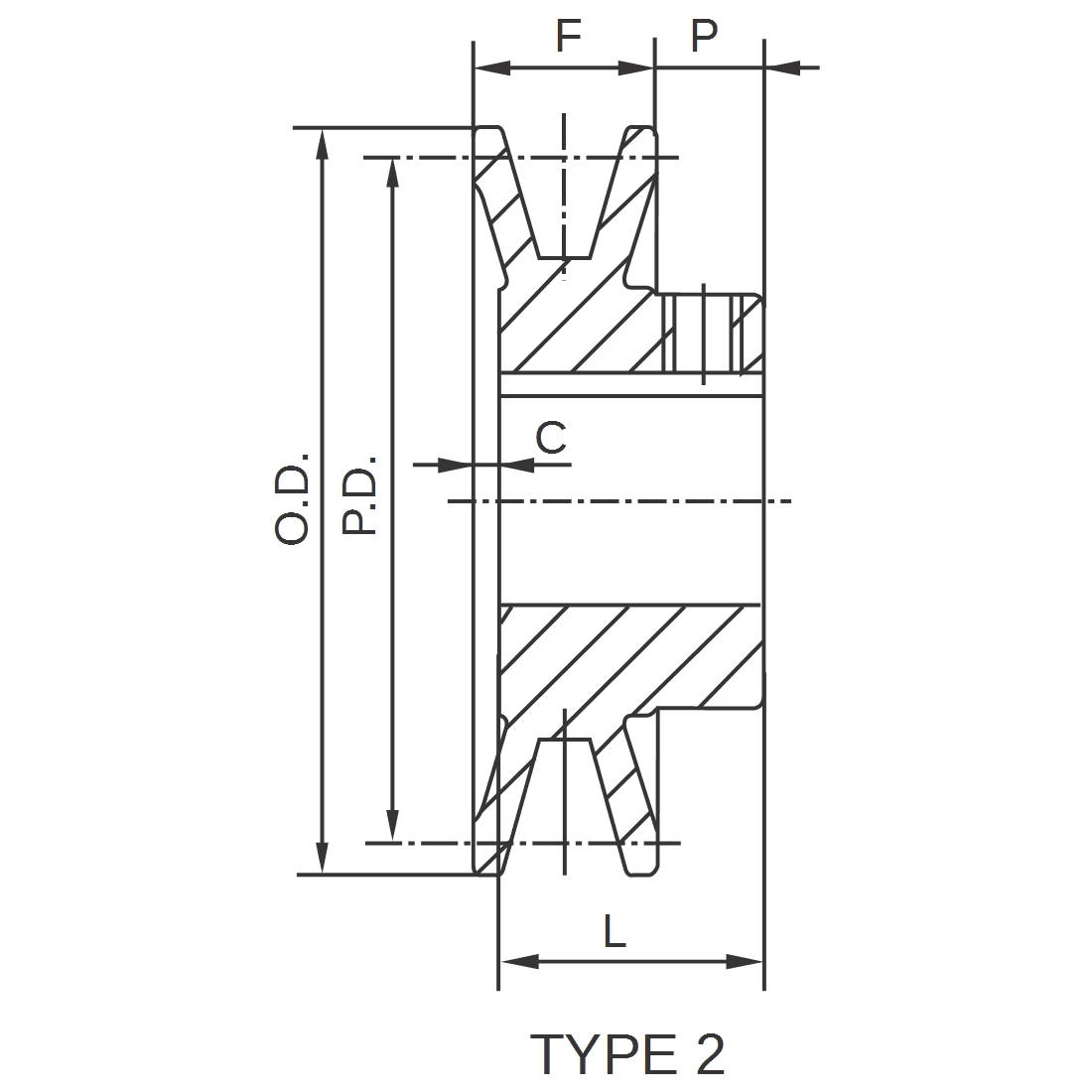

Type 2
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 1.5 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
