/Products/Pulleys & Sheaves/AK Single Groove/AK4116 3.95" X 1" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK4116

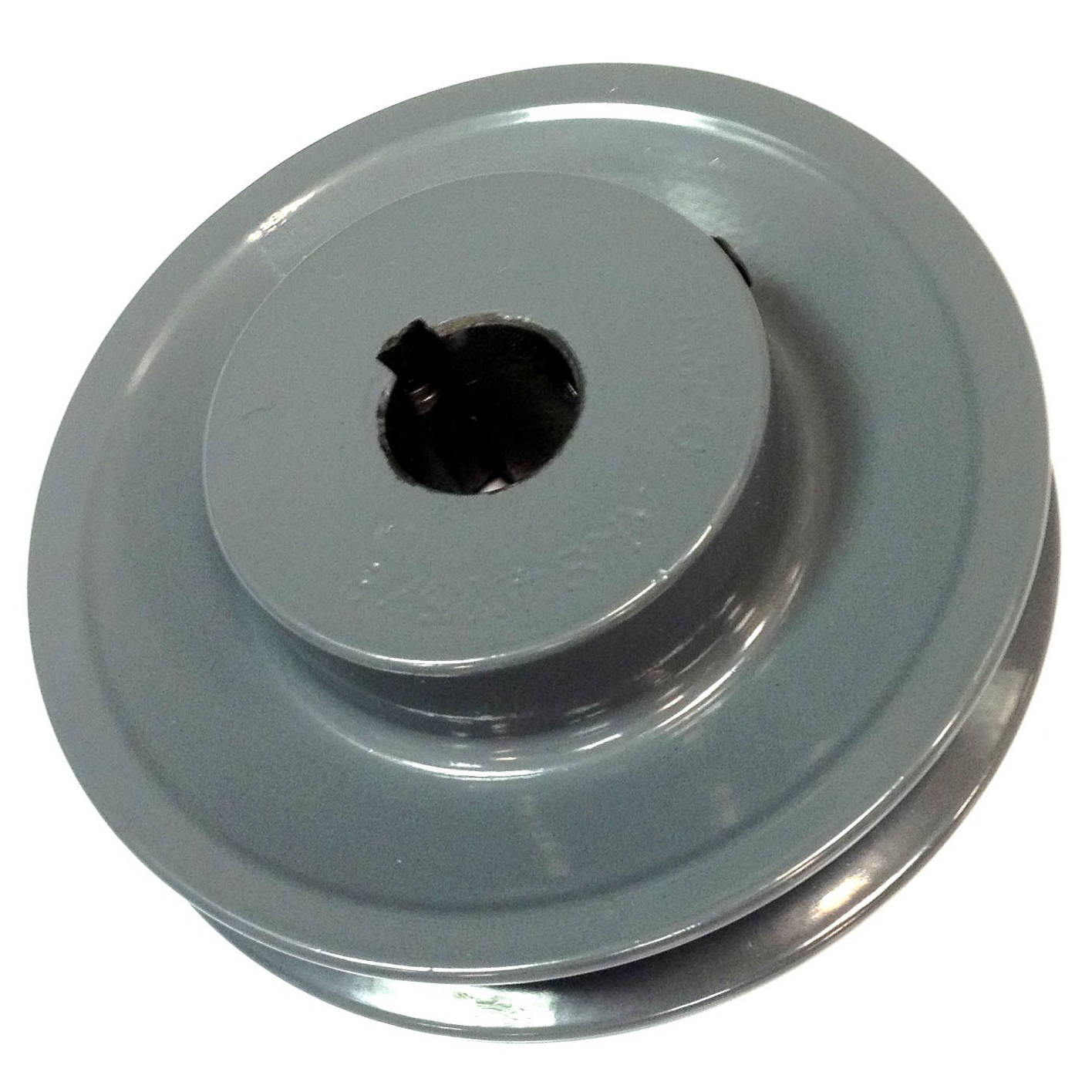

AK4116 3.95" X 1" AK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: AK41X1

Available Stock: 2
Selected accessories will also be added to cart
$9.81 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Various
Part Number AK4116
AK41X1
Bore 1"
Sheave Cross Section AK
Outside Diameter 3.95"
Pulley Diameter “A” 3.70"
Pulley Diameter “3L” 3.36"

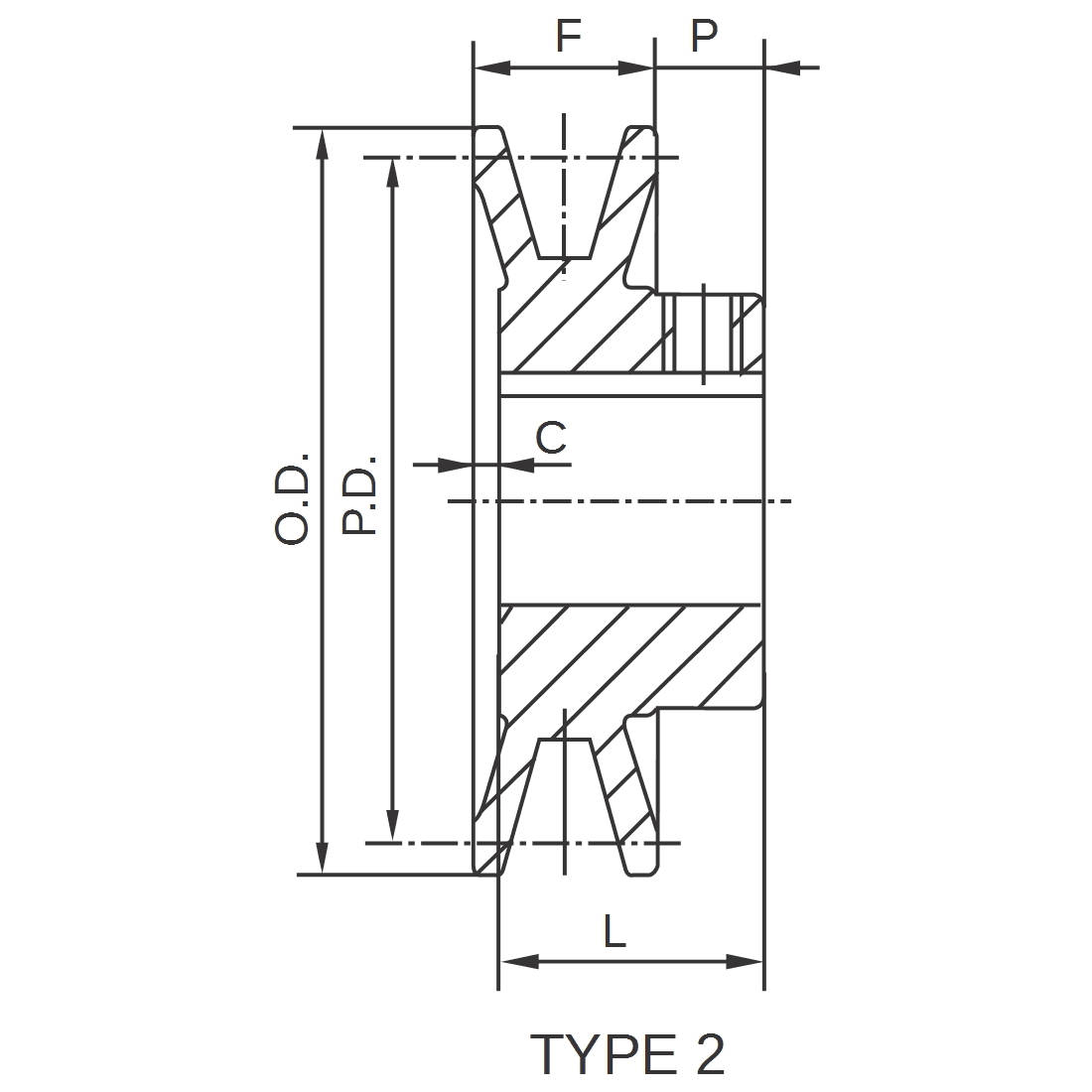

Type 2
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 1.5 lbs
Keyseat (WxD) 1/4" x 1/8"
Set Screw(s) Yes, 2
Country of Origin Various
