/Products/Pulleys & Sheaves/AK Single Groove/AK4610 AMEC 4.45"X 5/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK4610

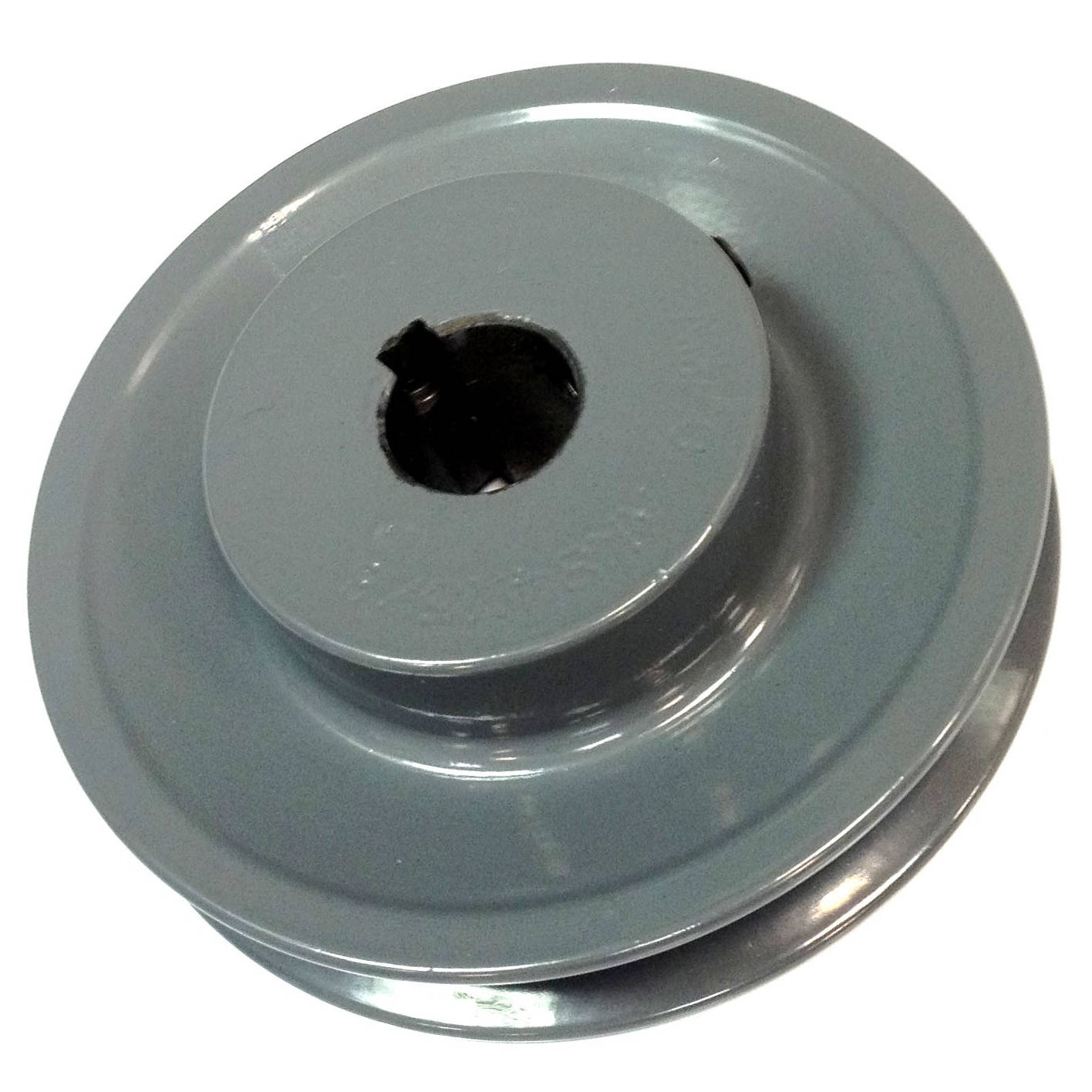

AK4610 AMEC 4.45"X 5/8" AK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: AK46X5/8

Available Stock: 4
Selected accessories will also be added to cart
$20.16 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number AK46x5/8
AK4610
Bore 5/8"
Sheave Cross Section AK
Outside Diameter 4.45"
Pulley Diameter “A” 4.20"
Pulley Diameter “3L” 3.86"
Type 2
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 1.6 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw Yes, 2
Country of Origin China
