Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged

Brand	Various
Part Number	AK5108 AK51X1/2
Bore	1/2"
Sheave Cross Section	AK
Outside Diameter	4.95"
Pulley Diameter “A”	4.70"
Pulley Diameter “3L”	4.36"

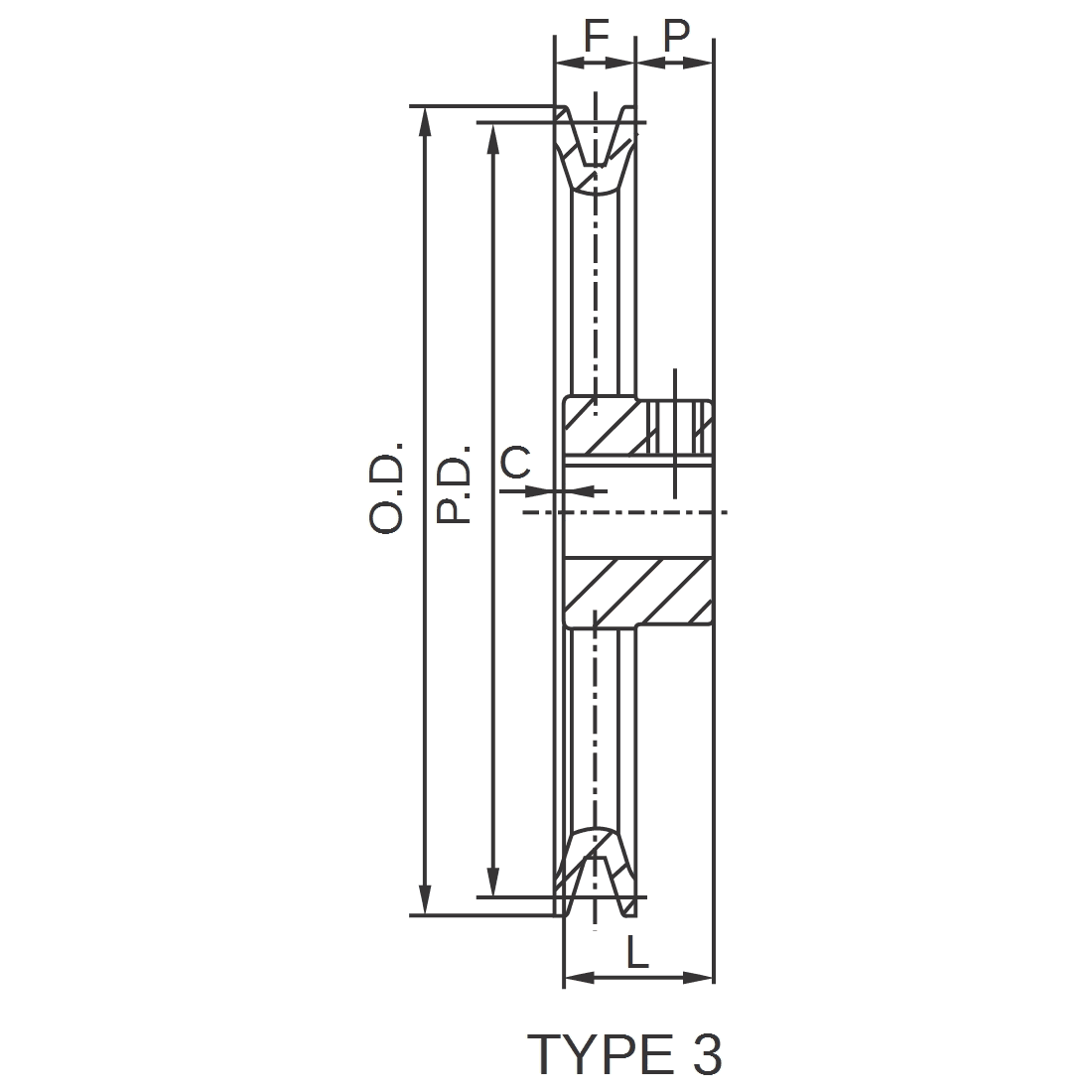

Type	3
Pulley Width “F”	3/4"
Dimension “L”	1-5/32"
Dimension “P”	15/32"
Recess Depth “C”	1/16"
Approximate Weight	1.7 lbs
Keyseat (WxD)	None
Set Screw(s)	Yes, 2
Country of Origin	Various
