/Products/Pulleys & Sheaves/AK Single Groove/AK5112 4.95" X 73/4" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK5112

NEW!

AK5112 4.95" X 73/4" AK Single Groove V-Pulley

Temporarily out of stock
Selected accessories will also be added to cart
$25.70 / Each

Specifications

? Manufactured in high quality grey cast iron
? Finished bore with H7 precision
? Keyway and set screws in accordance with USAS. B. 17.1-1967
? Individually packaged
Brand Various
Part Number AK5114
AK51X7/8
Bore 7/8"

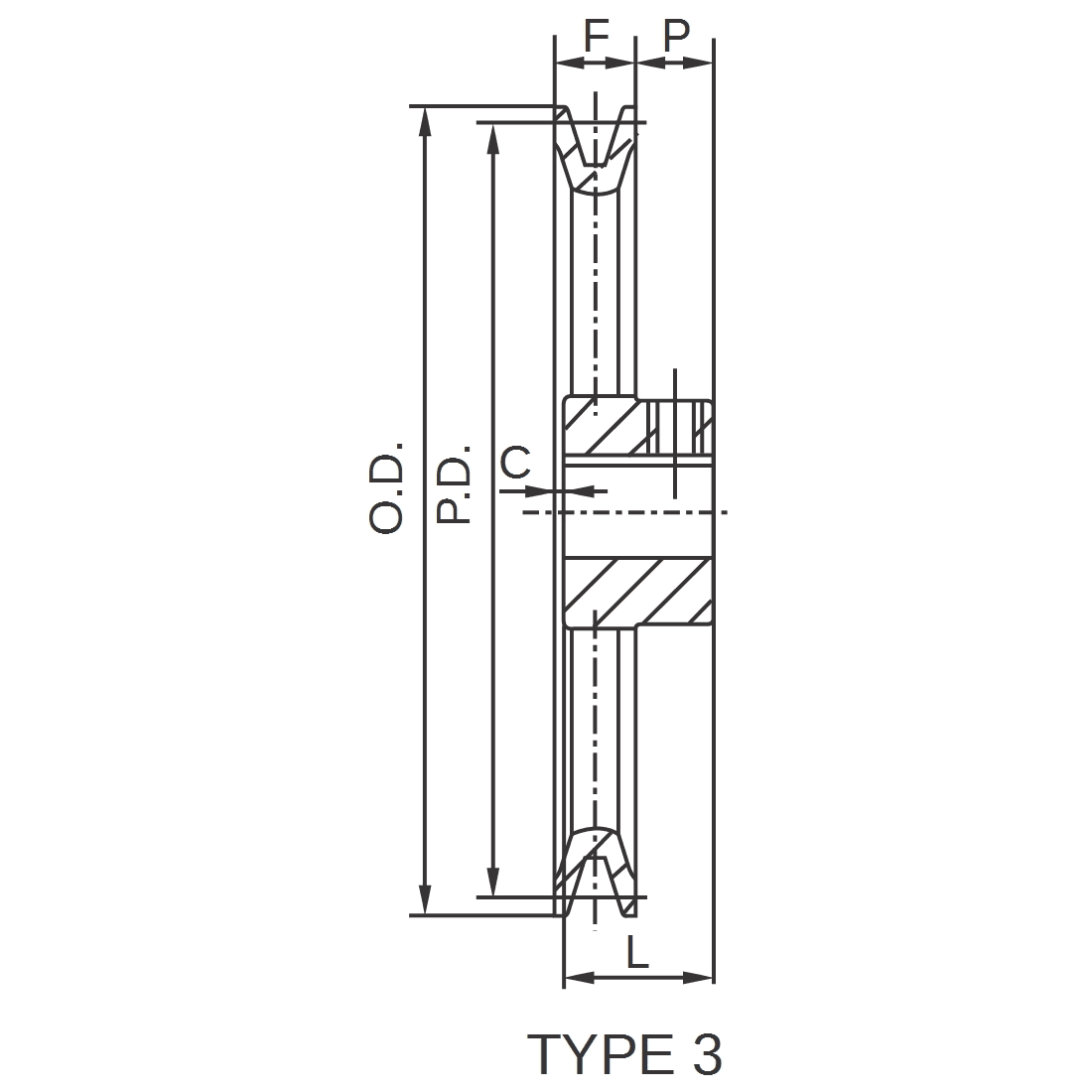

Sheave Cross Section AK
Outside Diameter 4.95"
Pulley Diameter ?A? 4.70"
Pulley Diameter ?3L? 4.36"
Type 3
Pulley Width ?F? 3/4"
Dimension ?L? 1-5/32"
Dimension ?P? 15/32"
Recess Depth ?C? 1/16"
Approximate Weight 1.7 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
