/Products/Pulleys & Sheaves/AK Single Groove/AK5114 4.95" X 7/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK5114

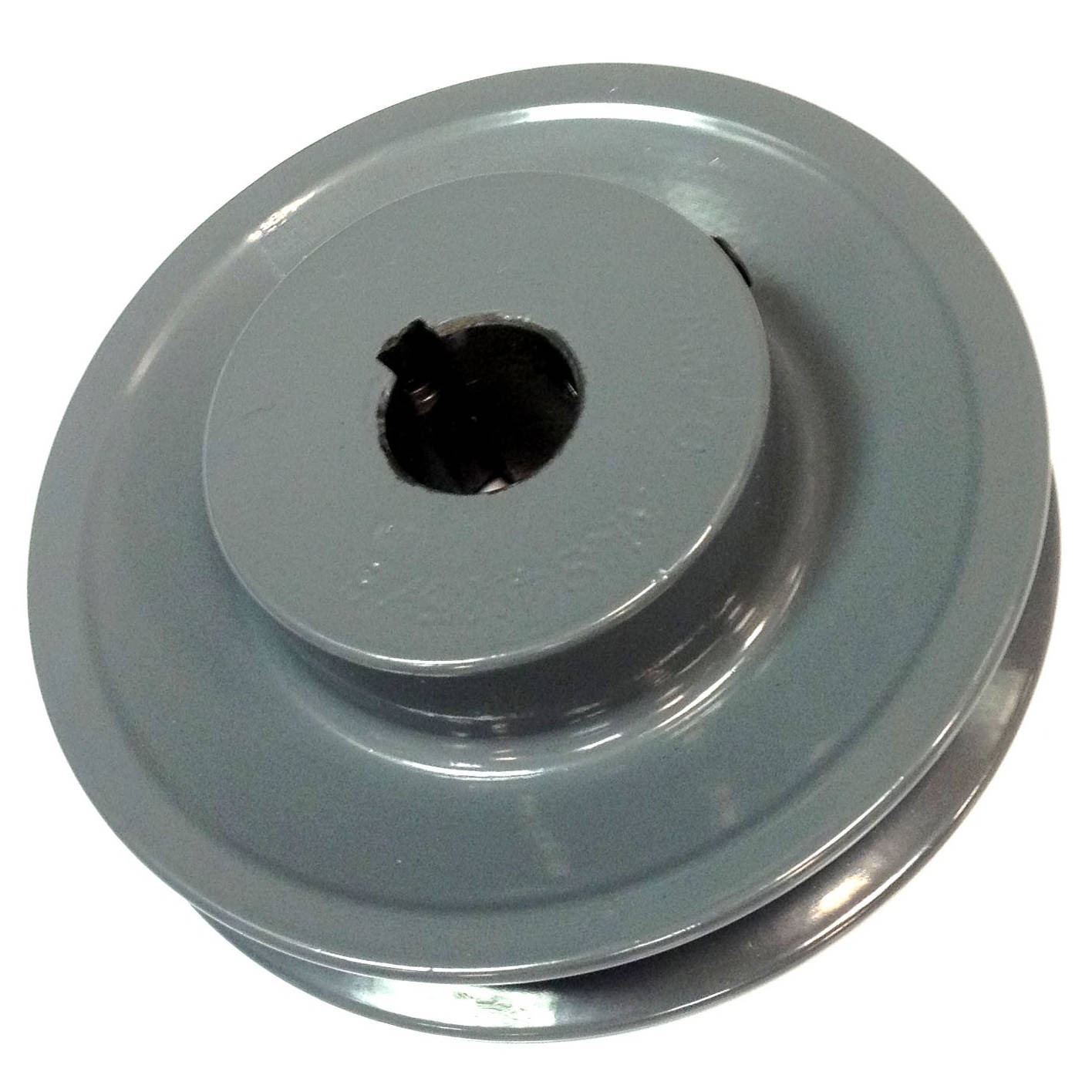

AK5114 4.95" X 7/8" AK Single Groove V-Pulley

Available Stock: 1
Selected accessories will also be added to cart
$13.98 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number AK5114
AK51X7/8
Bore 7/8"

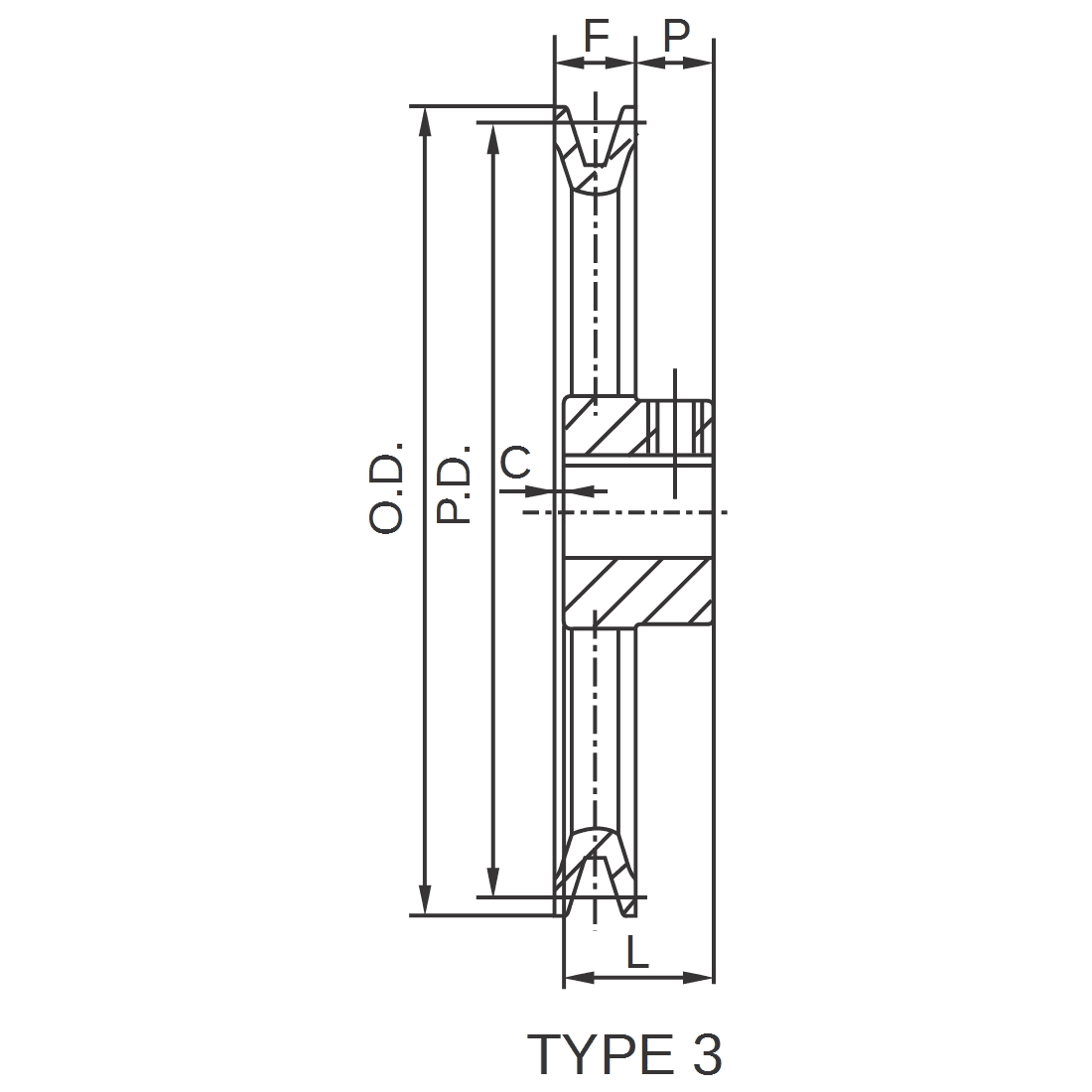

Sheave Cross Section AK
Outside Diameter 4.95"
Pulley Diameter “A” 4.70"
Pulley Diameter “3L” 4.36"
Type 3
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 1.7 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
