/Products/Pulleys & Sheaves/AK Single Groove/AK6110 5.95" X 5/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK6110

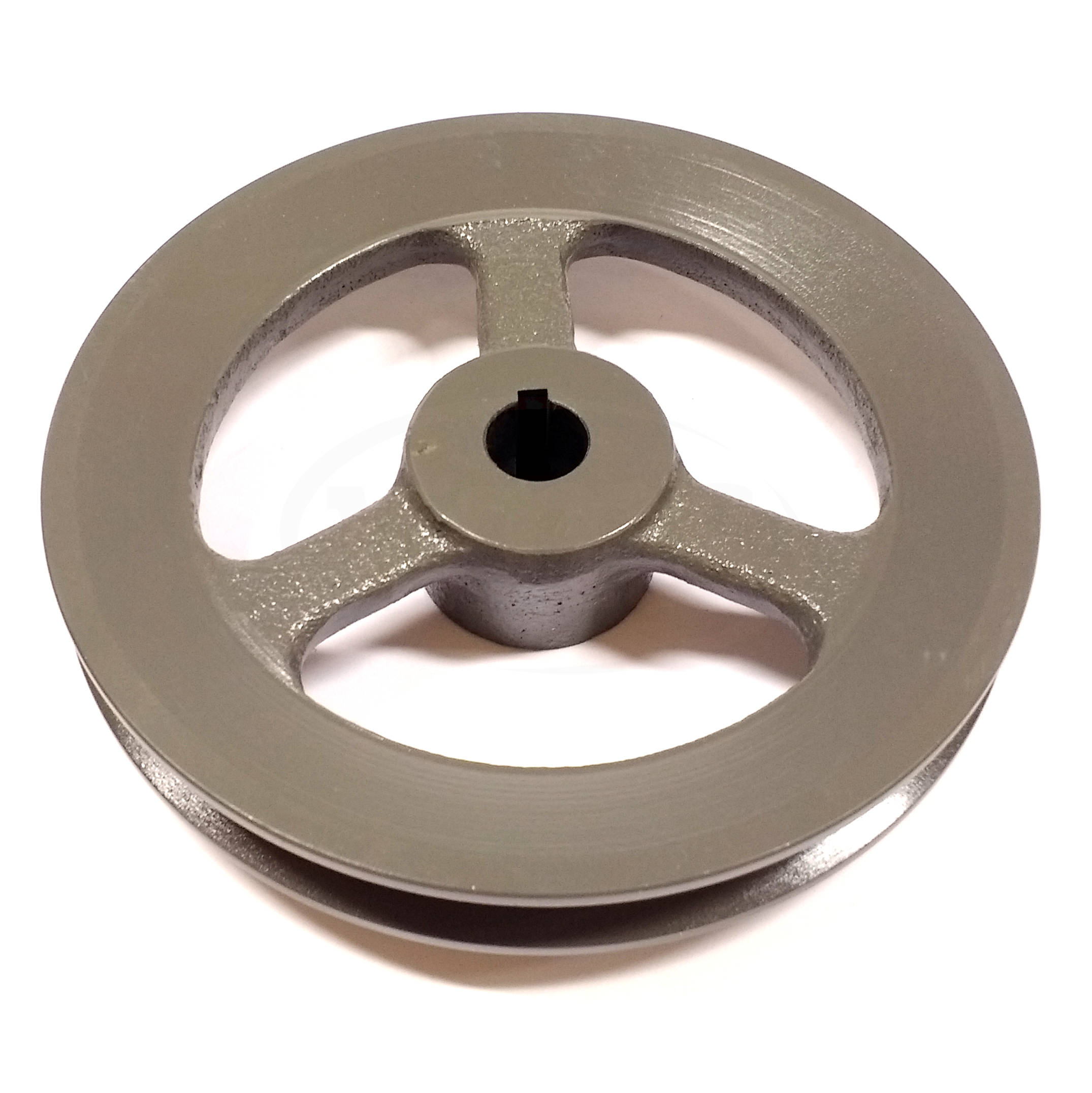

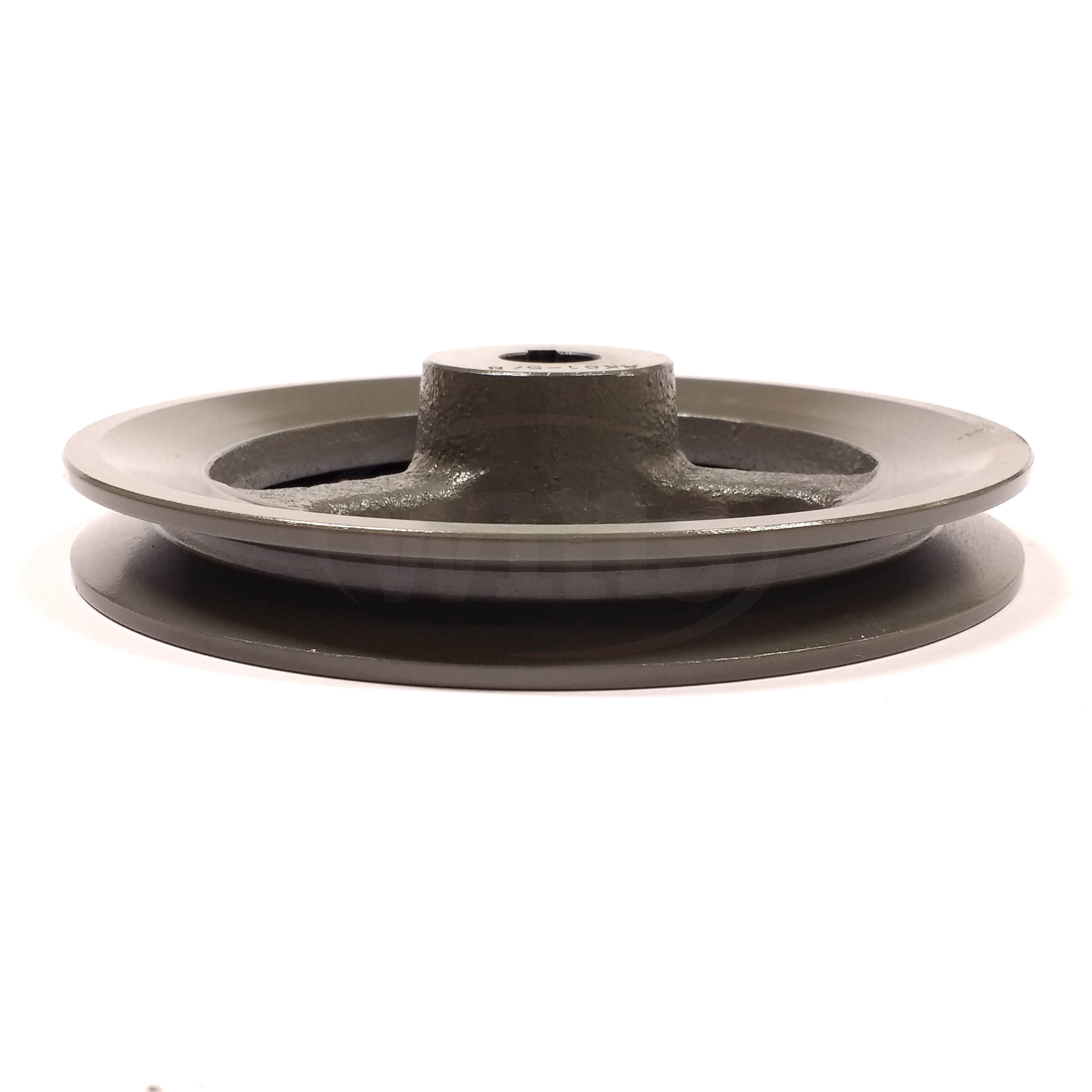

AK6110 5.95" X 5/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK61X5/8

Available Stock: 1
Selected accessories will also be added to cart
$23.33 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967

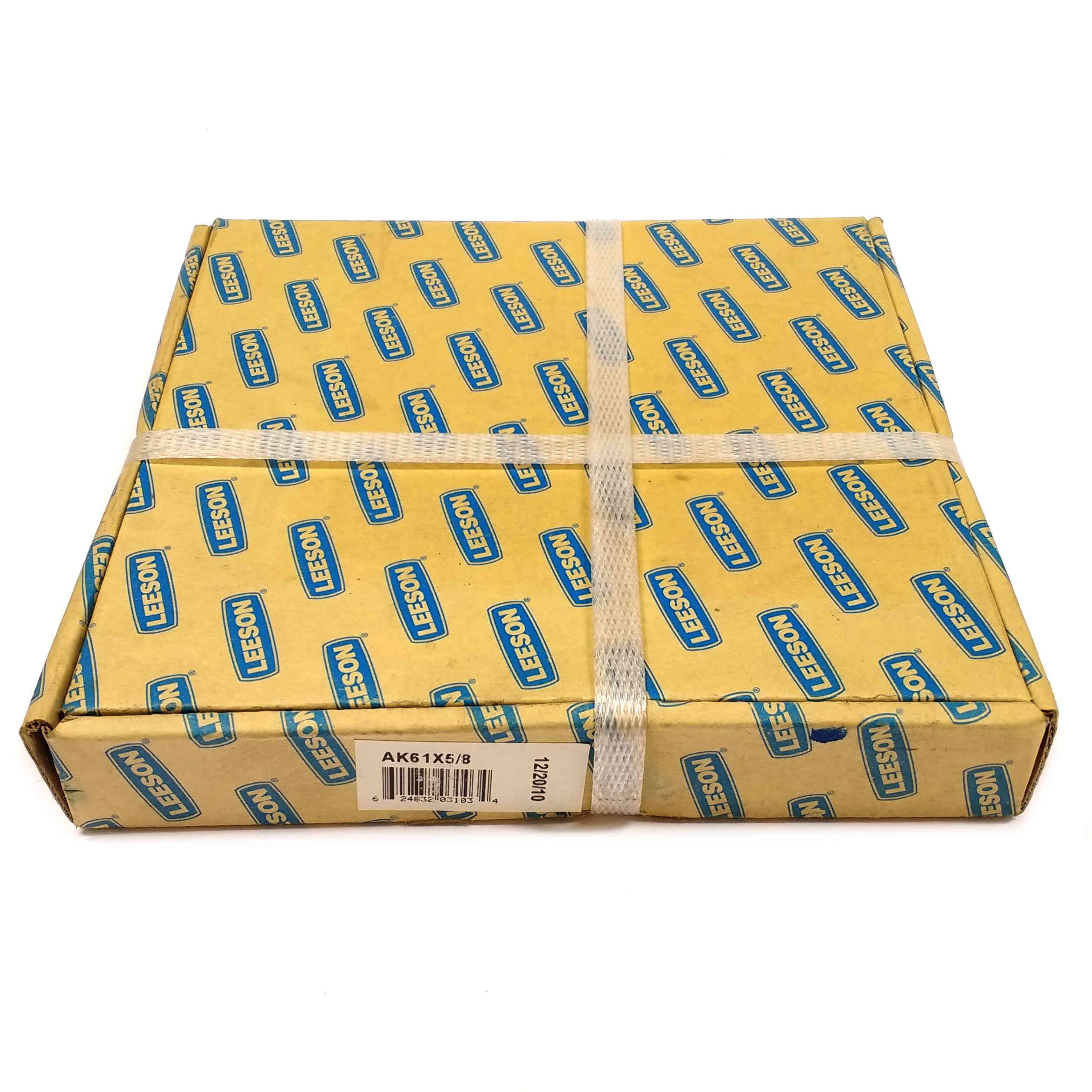

• Individually packaged
Brand Leeson
Part Number AK61x5/8
AK6110
Bore 5/8"

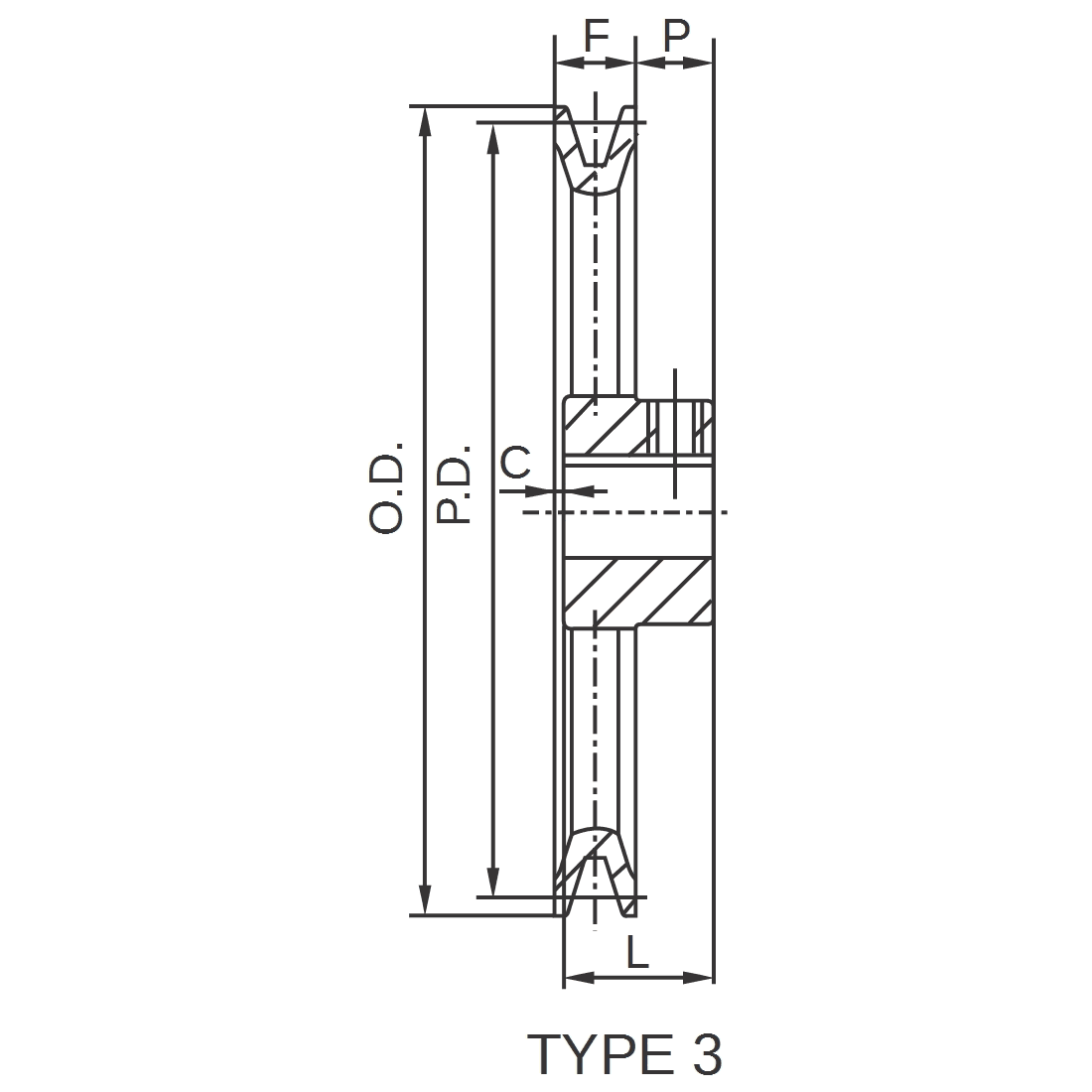

Sheave Cross Section AK
Outside Diameter 5.95"
Pulley Diameter “A” 5.70"
Pulley Diameter “3L” 5.36"
Type 3
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 2.1 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw Yes, 2
Country of Origin China
