Product ID: AK6114

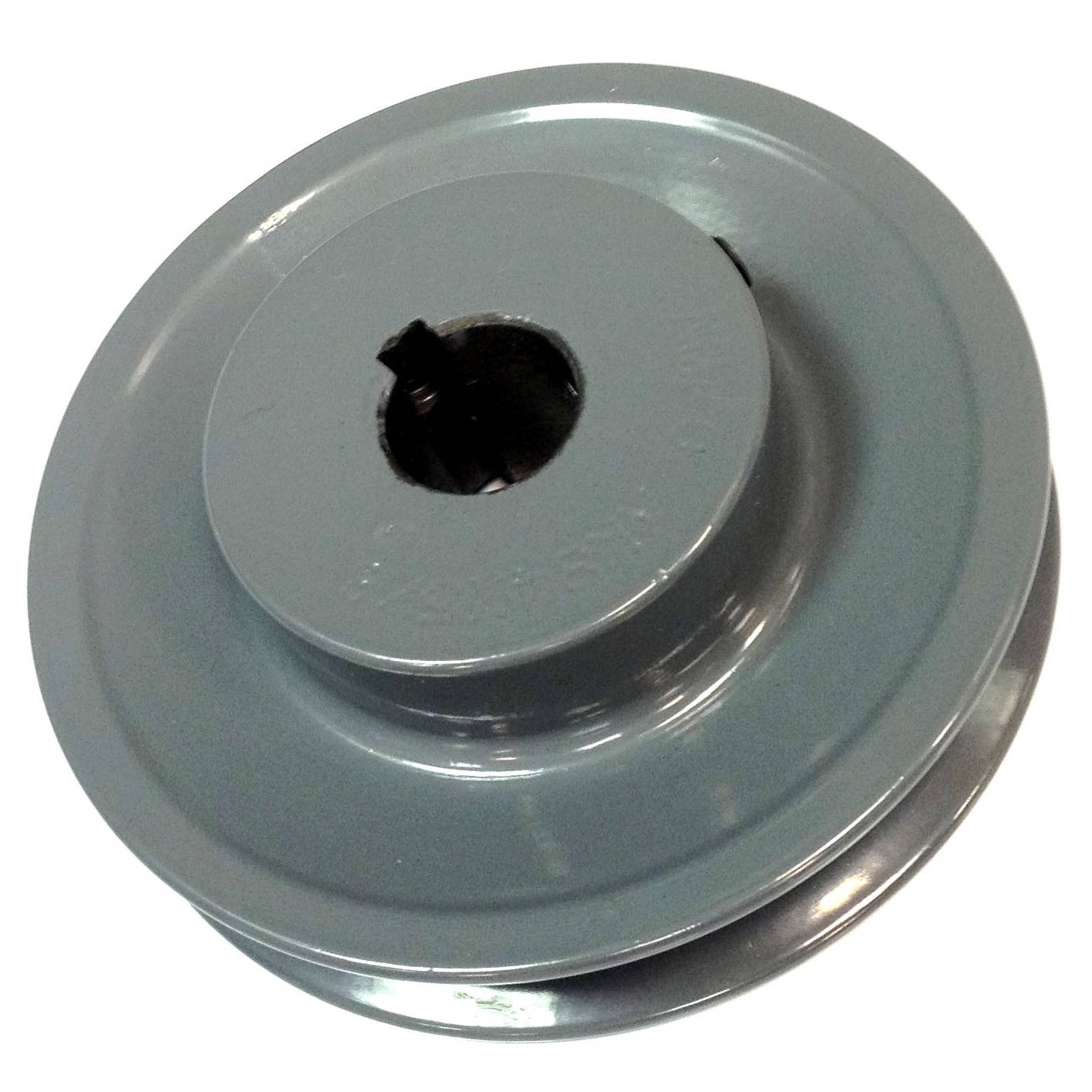

AK6114 5.95" X 7/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK61X7/8

Available Stock: 2
Selected accessories will also be added to cart
$25.74 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Various
Part Number AK6114
AK61X7/8
Bore 7/8"
Sheave Cross Section AK
Outside Diameter 5.95"
Pulley Diameter “A” 5.70"
Pulley Diameter “3L” 5.36"

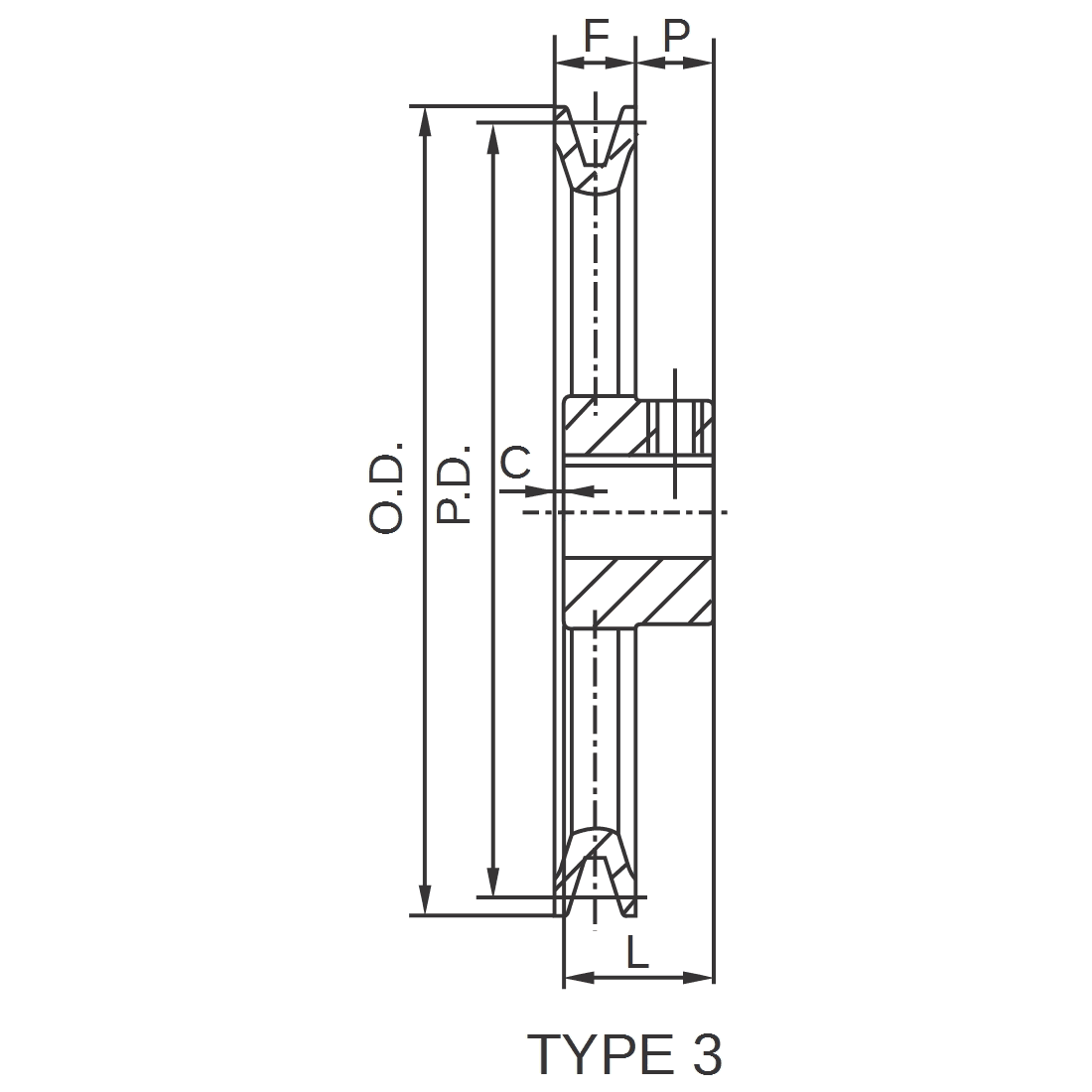

Type 3
Pulley Width “F” 3/4"
Dimension “L” 1-5/32"
Dimension “P” 15/32"
Recess Depth “C” 1/16"
Approximate Weight 2.1 lbs

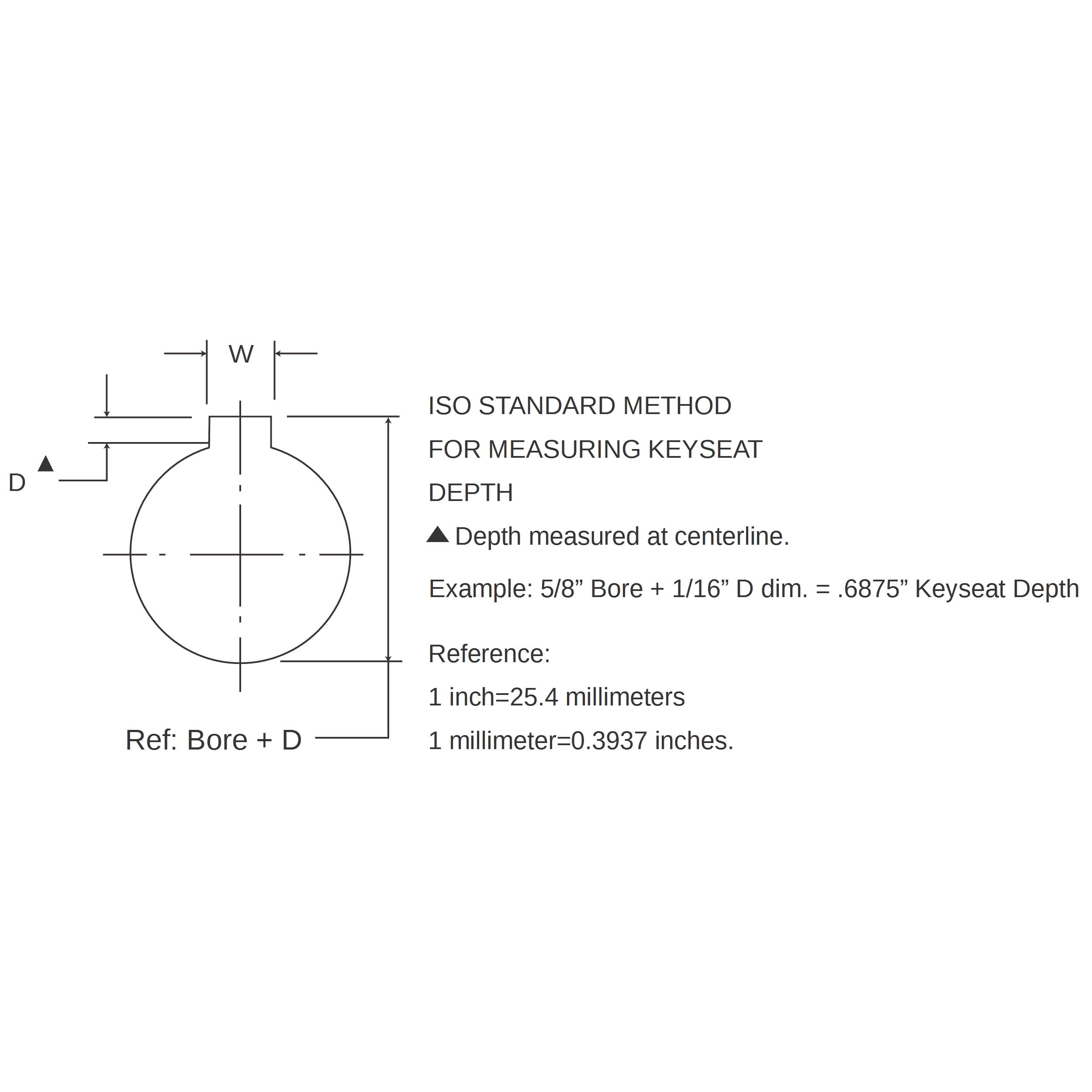

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
