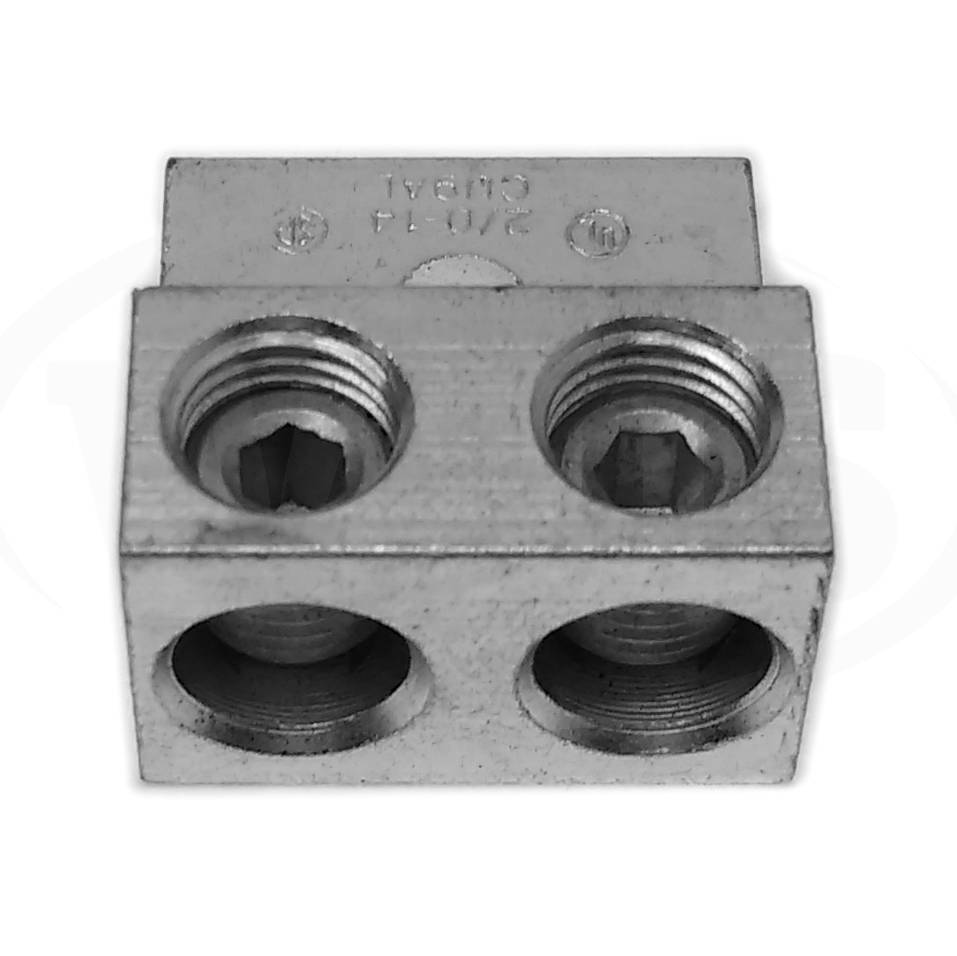

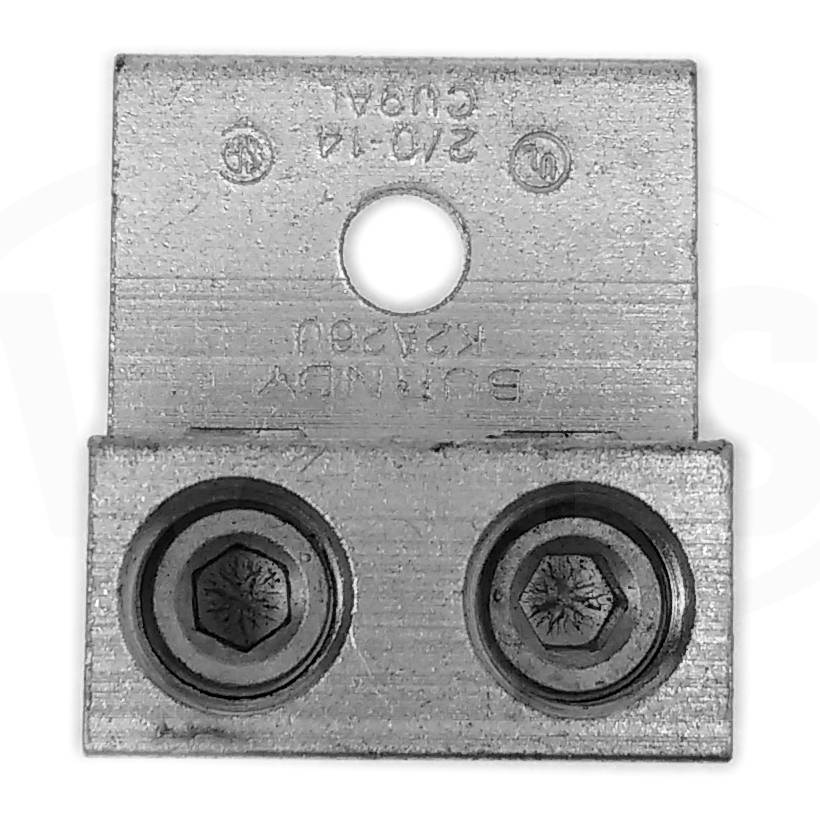

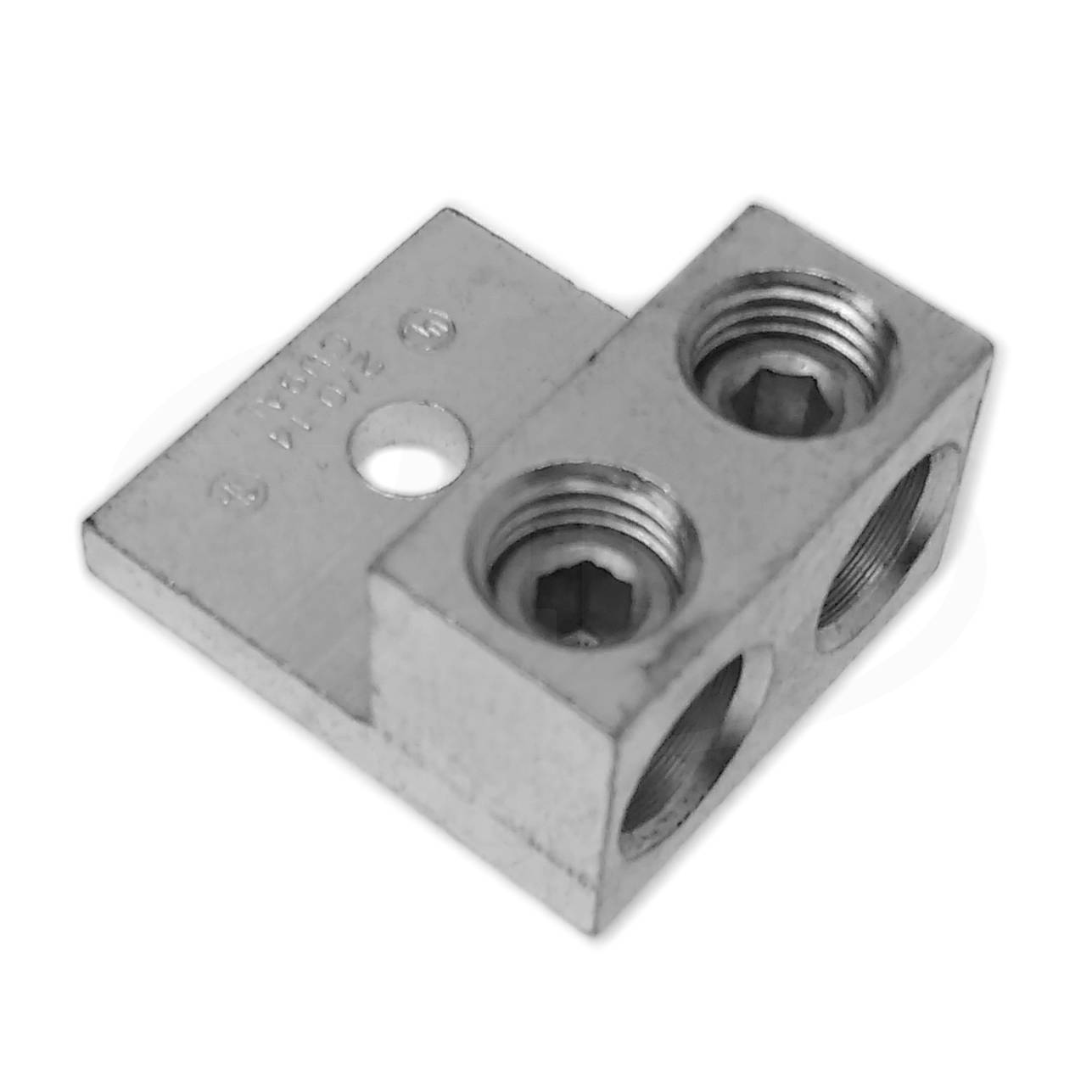

AU-2/0 Aluminum Universal Terminal Lug, 1/4" Eye

Product ID: AU-2/0

MFG: Burndy LLC (Hubbell)
MFG Part Number: K2A26U

Available Stock: 33
Selected accessories will also be added to cart
$5.10 / Each
Quantity:
Burndy K2A26U, 2 Conductors
Dimensional
 Width (in) 1.25
 Length (in) 1.47
 Bolt Hole Size (in) 0.25
 Thickness 0.19
 D - in 0.81
 Pad Width (in) 1.27
 N (in) 0.44
General
 Number of Conductors 2
 Number of Holes 1
 Product Description Aluminum Universal Terminal, 2 Conductor, 1 Hole, 14-2/0 AWG (Str), 1/4" Stud, 2 Screws, Al/Cu Rated, Tin Plated
Conductor(s)
 Aluminum Size (Range) 14 SIR- 2/0 STR
 Copper Solid Size (Range) N/A
 Copper Stranded (Range) 14 AWG-2/0 AWG
Physical
 Installation Torque 120
 Type of Plating Tin
 Connector Type Terminal
 Bolt Hole Size 1/4
 Plated (Yes or No) N
 Product Material Aluminum
Approvals / Certifications
 Rated for Direct Burial N
 UL Listed Y
 CSA Certified Y
 ROHS Compatible Exempt
 Industry Standards UL468A-468B
