/Products/Electric Motors/Single Phase/Marathon/Fan & Blower/B313 Marathon 1/4HP Fan & Blower Electric Motor, 1800RPM
Click Image to Expand

Product ID: B313

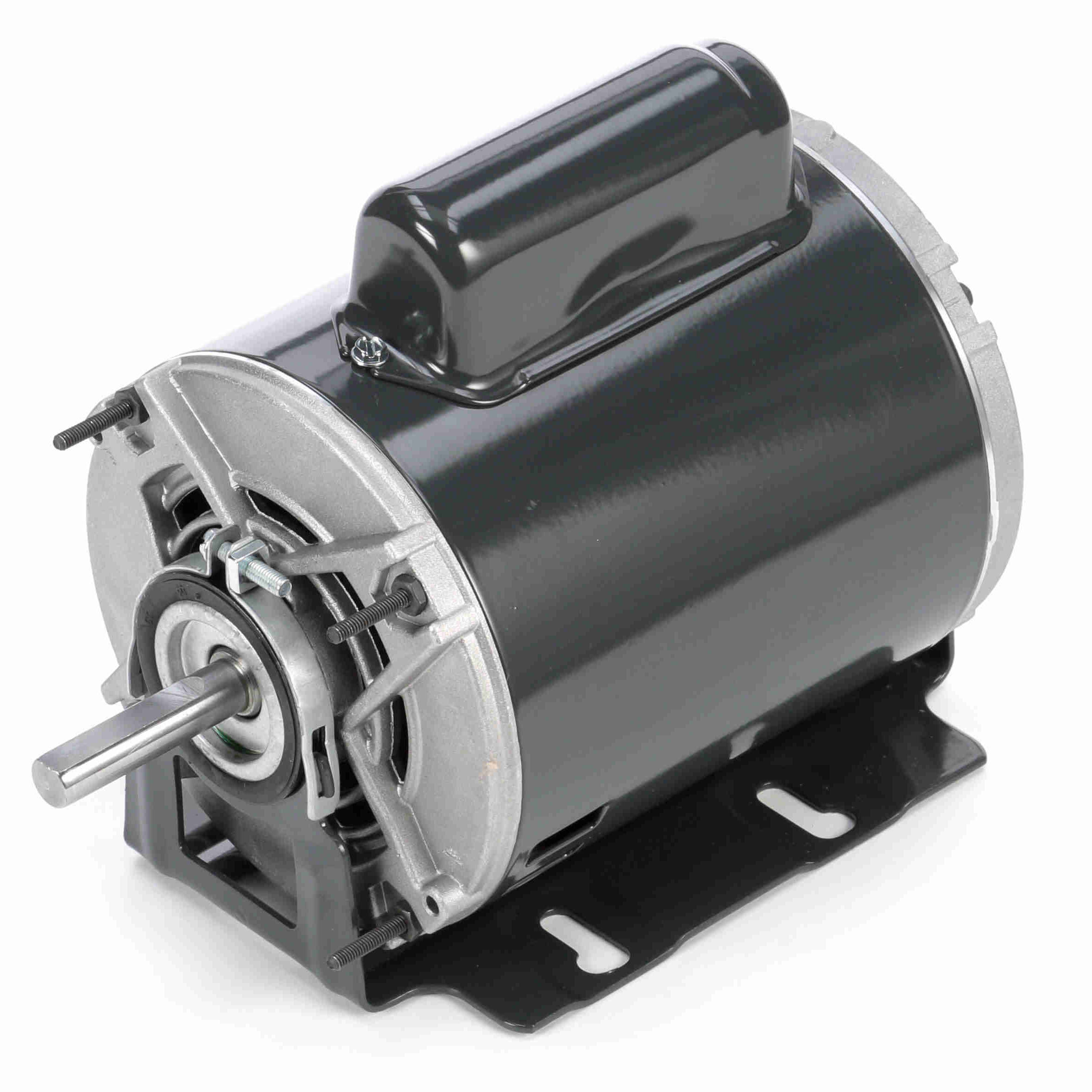

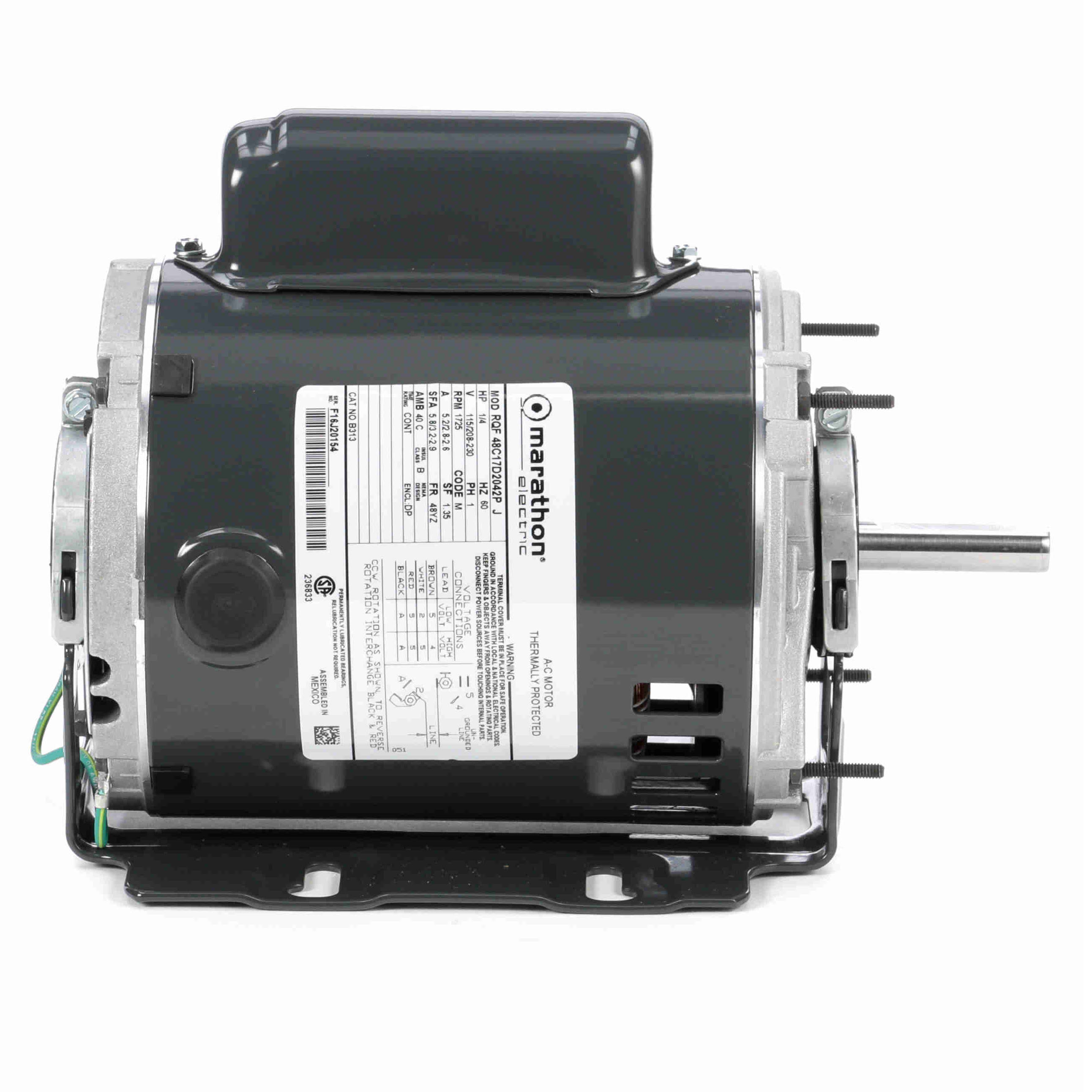

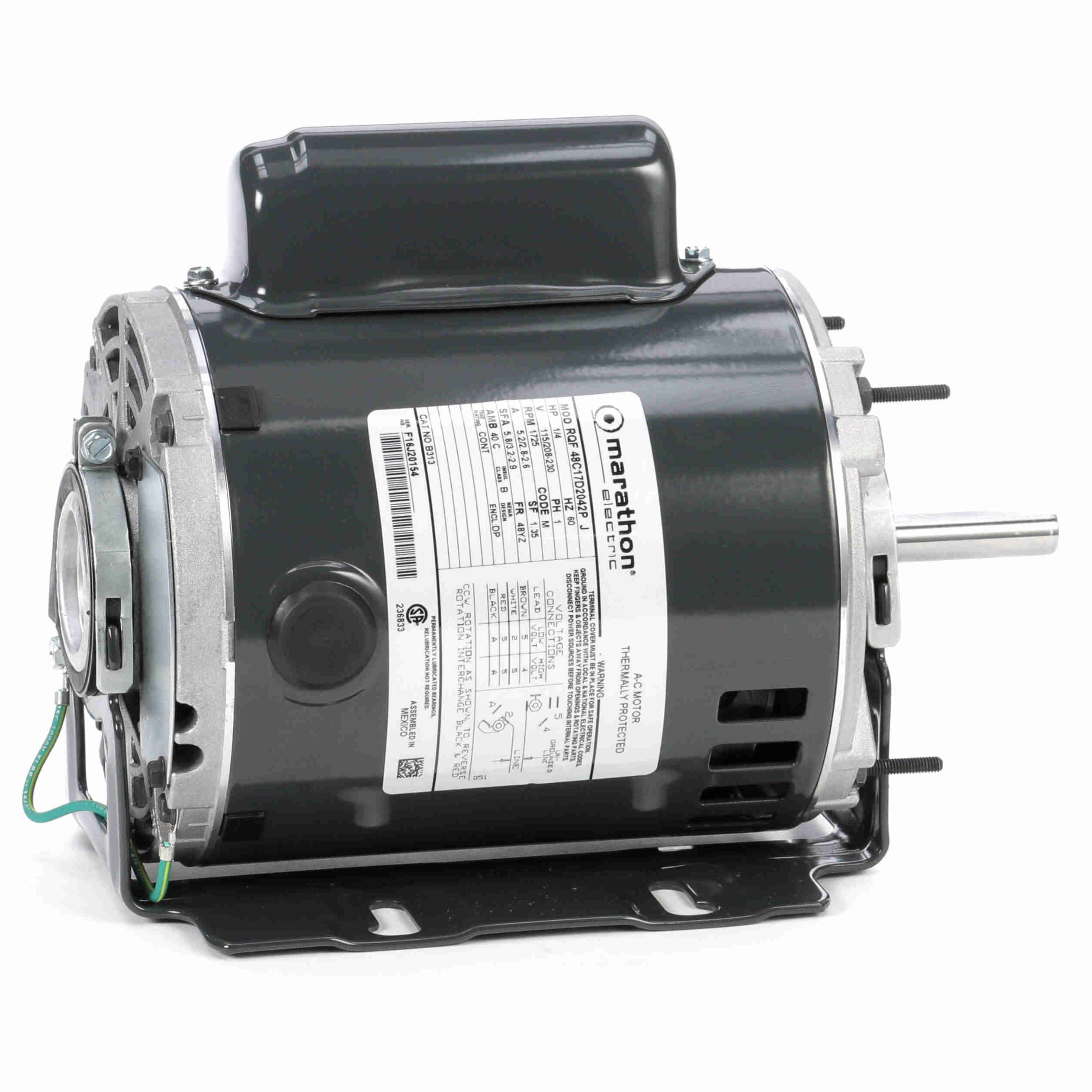

B313 Marathon 1/4HP Fan & Blower Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: B313

Selected accessories will also be added to cart
$259.97 / Each
Quantity:
DP, 48Y Frame, 115/230V Single Phase 60Hz, Resilient Base - Extended Studs, 048C17D2042

Features

Features
  • Heavy gauge steel frame and base
  • Ball bearings
  • Consult factory for accessory kit and/or modification selection
  • 48Y and 48YZ Frame have 48/56 Frame mounting holes
  • 5/8" thru-bolts, shaft end
  • 1/2" x 1-7/8" shaft with 1-5/8" flat

General Specifications

General Specifications
Model :048C17D2042 Catalog No :B313
Part Description :1/4,1800,DP,48Y,1/60/115/230 Category :Fan and Blower
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.25 HP Output KW :0.19 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :5.2/2.8-2.6 A Speed :1725 RPM
Service Factor :1.35 Phase :1
Efficiency :57.5 % Duty :Continous
Insulation Class :B Design Code :NO DESIGN CODE
KVA Code :M Frame :48Y
Enclosure :Drip Proof Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Resilient Base - Extended Studs Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :9.95 in Shaft Diameter :0.500 in
Shaft Extension :2.01 in Assembly/Box Mounting :F1 Only
UPC :722856062031 Weight :16.00 LB

Speed & Load Characteristics
