/Products/Pulleys & Sheaves/BK Single Groove/BK2508 2.50" X 1/2" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK2508

BK2508 2.50" X 1/2" BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK25X1/2

Available Stock: 2
Selected accessories will also be added to cart
$7.68 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number BK258
Bore 1/2"

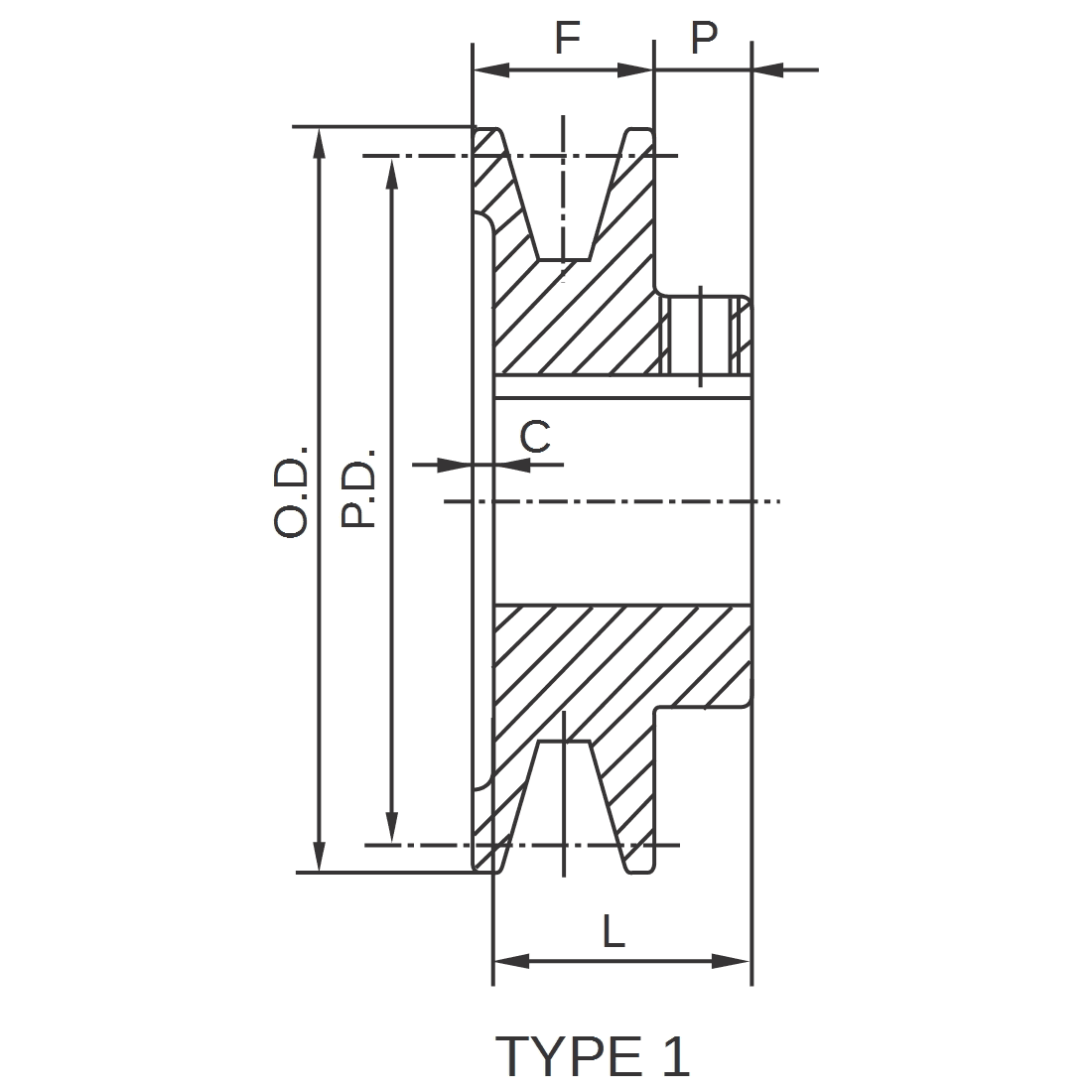

Sheave Cross Section BK
Outside Diameter 2.50"
Pulley Diameter “A” 1.90"
Pulley Diameter “B” 2.30"
Type 1
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.5 lbs
Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
