/Products/Pulleys & Sheaves/BK Single Groove/BK2512 2.50" X 3/4" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK2512

BK2512 2.50" X 3/4" BK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: BK25X3/4

Temporarily out of stock
Selected accessories will also be added to cart
$14.24 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK2512
Bore 3/4"
Sheave Cross Section BK
Outside Diameter 2.50"

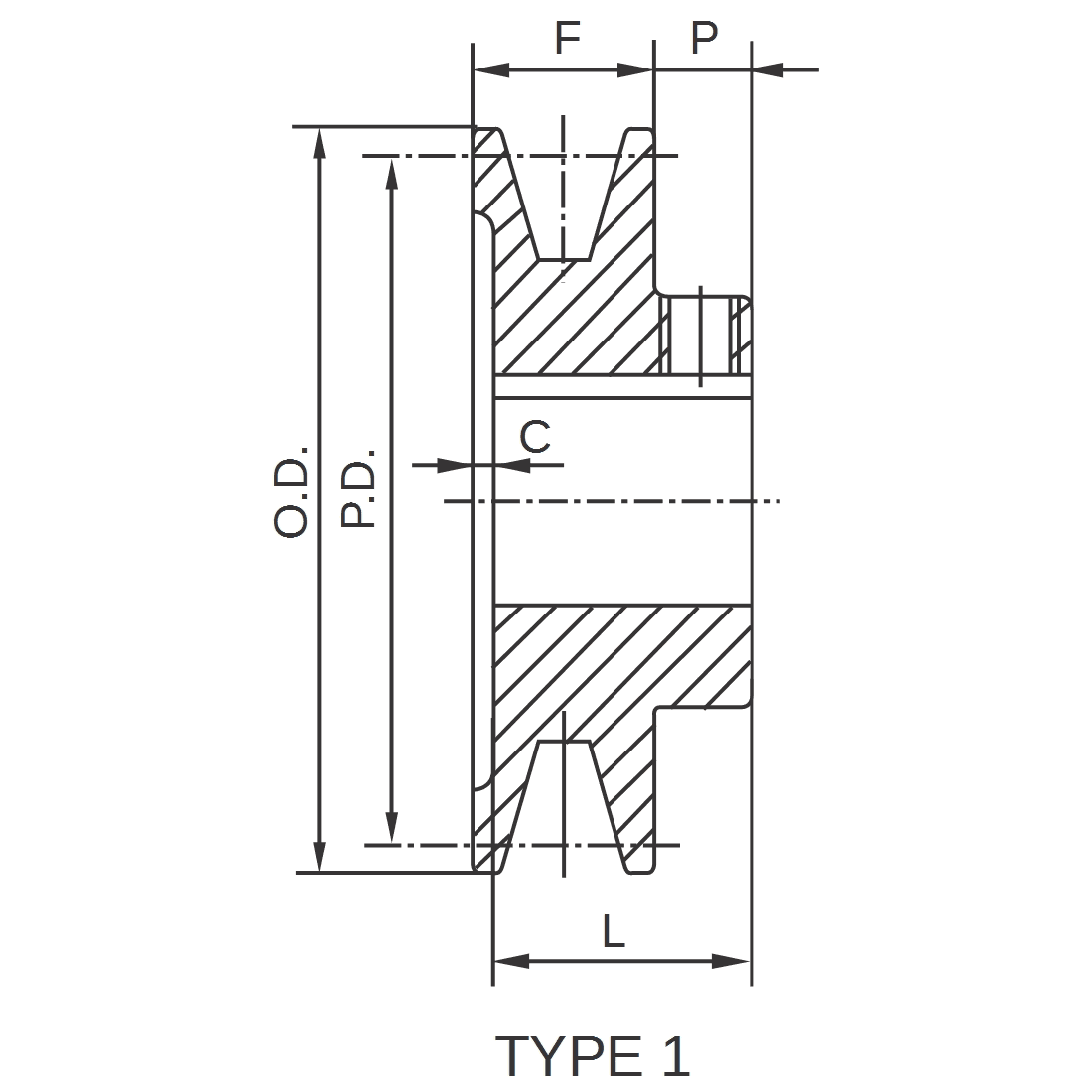

Pulley Diameter “A” 1.90"
Pulley Diameter “B” 2.30"
Type 1
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.5 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
