/Products/Pulleys & Sheaves/BK Single Groove/BK2708 2.70" X 1/2" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK2708

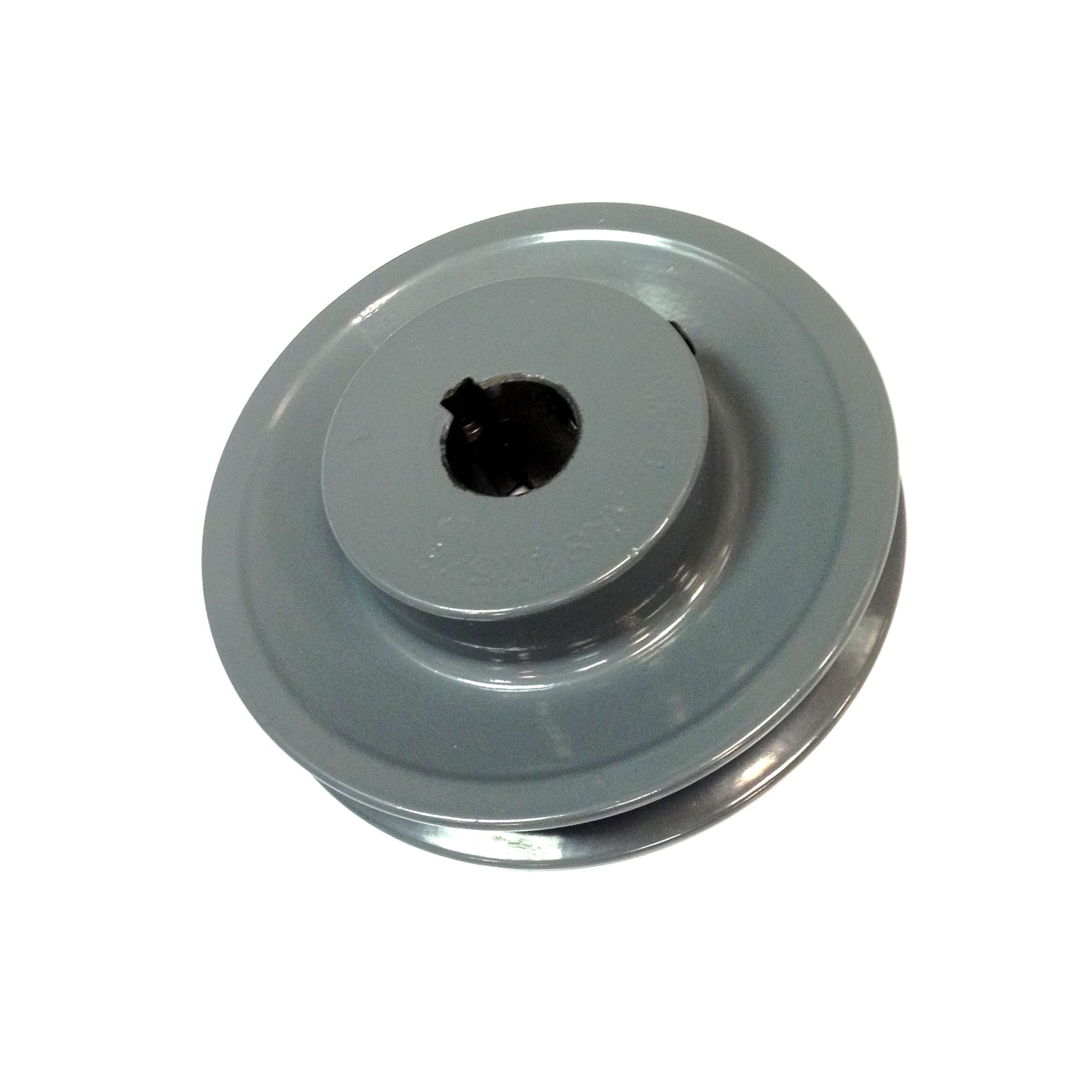

BK2708 2.70" X 1/2" BK Single Groove V-Pulley

MFG: Browning (Emerson Power Transmission Products)
MFG Part Number: BK27X1/2

Selected accessories will also be added to cart
$8.29 / Each
Quantity:

Available Stock: 2

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Browning
Various
Part Number BK278
BK2708
BK27X1/2
Bore 1/2"
Sheave Cross Section BK
Outside Diameter 2.70"
Pulley Diameter “A” 2.10"
Pulley Diameter “B” 2.50"

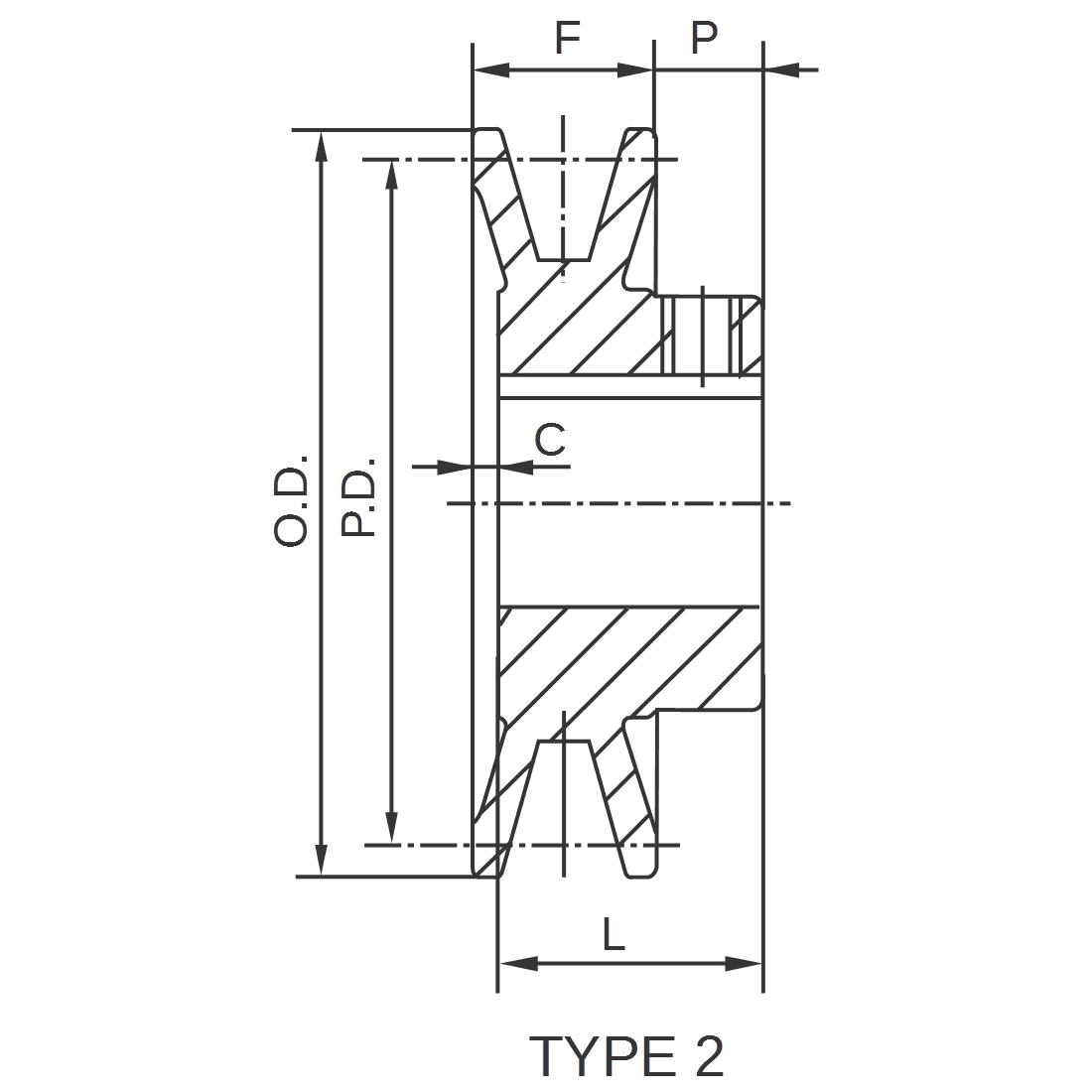

Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs
Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
