Product ID: BK2710

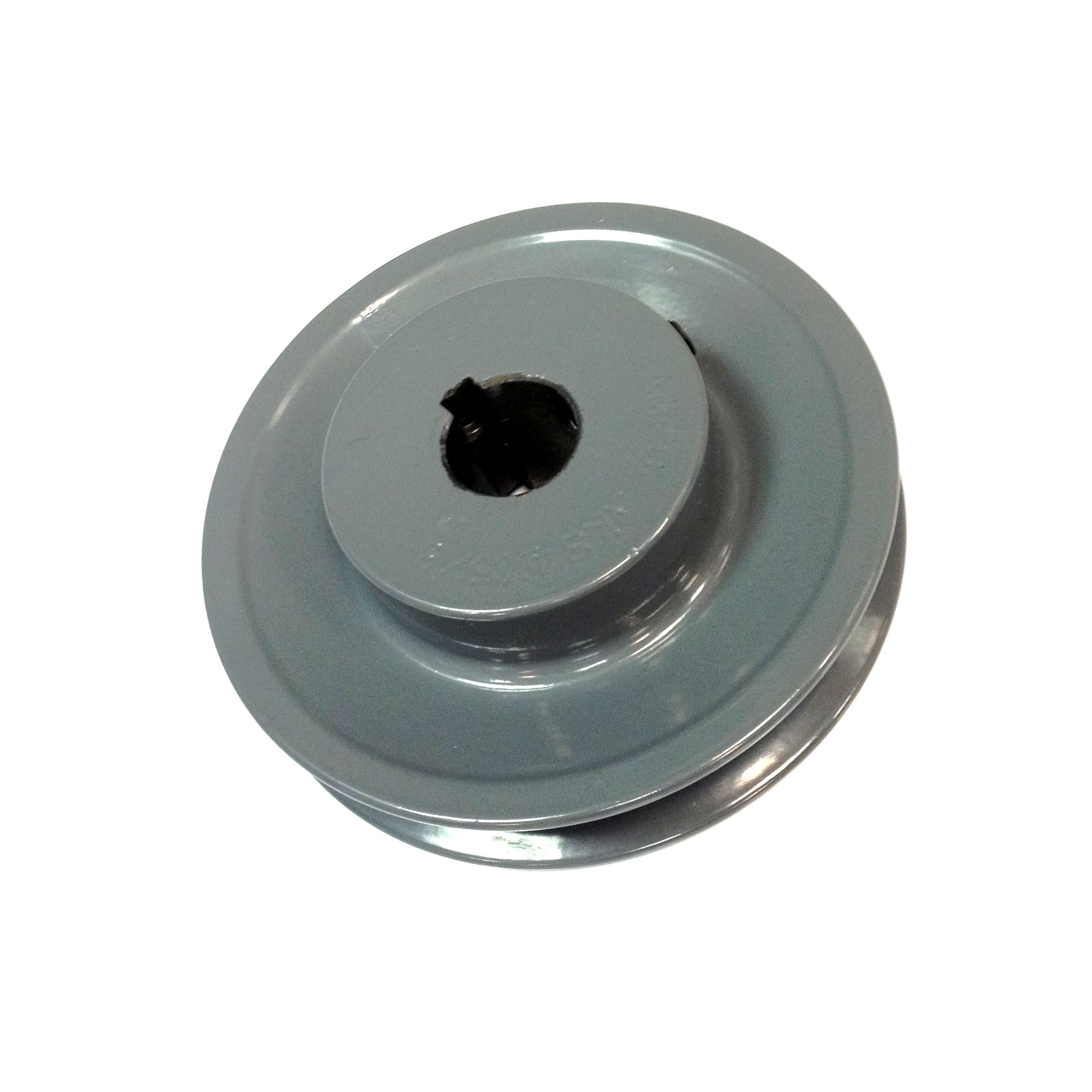

BK2710 2.70" X 5/8" BK Single Groove V-Pulley

MFG: New Standard Power Transmission
MFG Part Number: BK27-5/8

Selected accessories will also be added to cart
$8.18 / Each
Quantity:

Available Stock: 4

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK2710
BK27X5/8
Bore 5/8"
Sheave Cross Section BK
Outside Diameter 2.70"
Pulley Diameter “A” 2.10"
Pulley Diameter “B” 2.50"
Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
