/Products/Pulleys & Sheaves/BK Single Groove/BK2712 2.70" X 3/4" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK2712

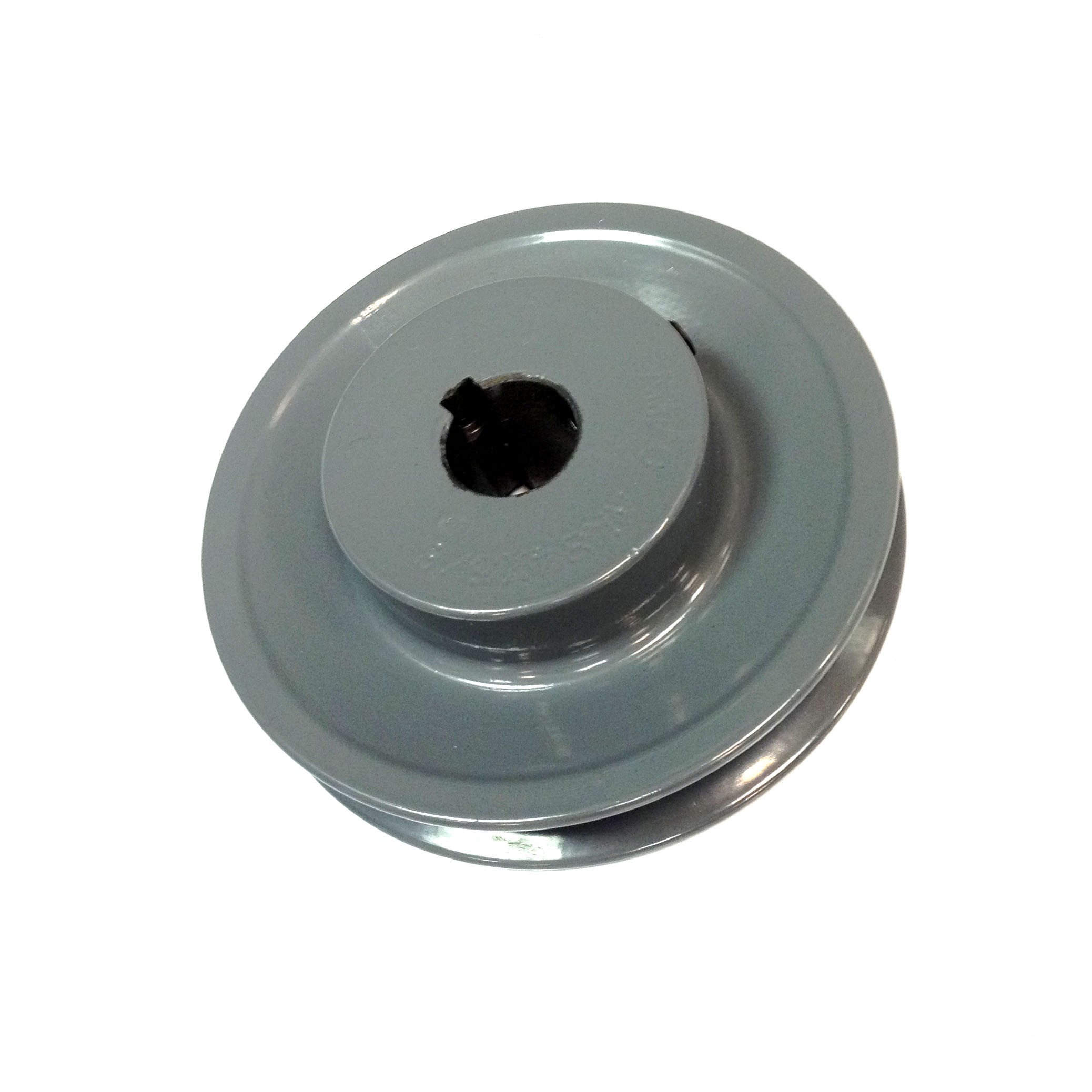

BK2712 2.70" X 3/4" BK Single Groove V-Pulley

MFG: Browning (Emerson Power Transmission Products)
MFG Part Number: BK27X3/4

Available Stock: 3
Selected accessories will also be added to cart
$9.84 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Browning
Part Number BK2712
Bore 3/4"
Sheave Cross Section BK

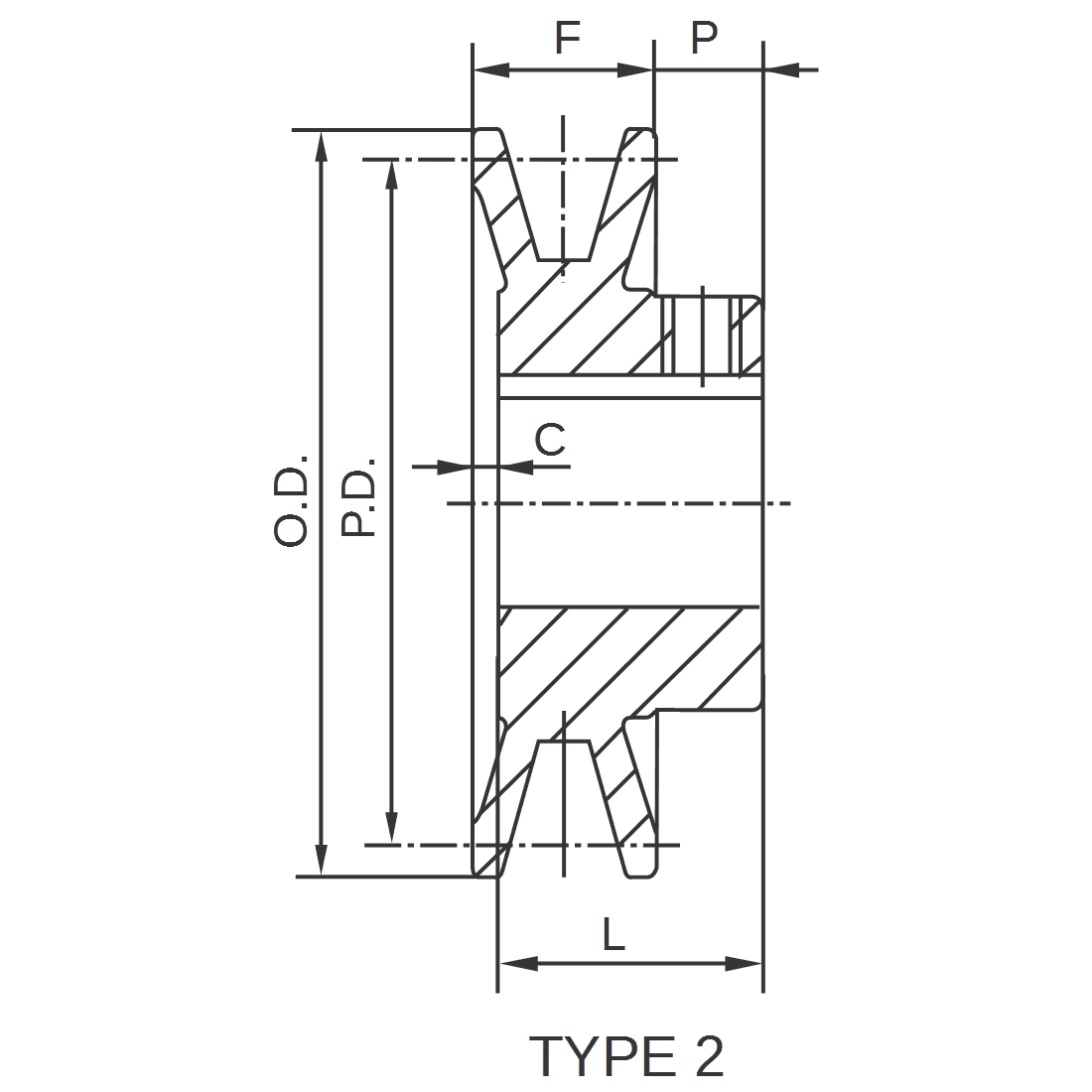

Outside Diameter 2.70"
Pulley Diameter “A” 2.10"
Pulley Diameter “B” 2.50"
Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs

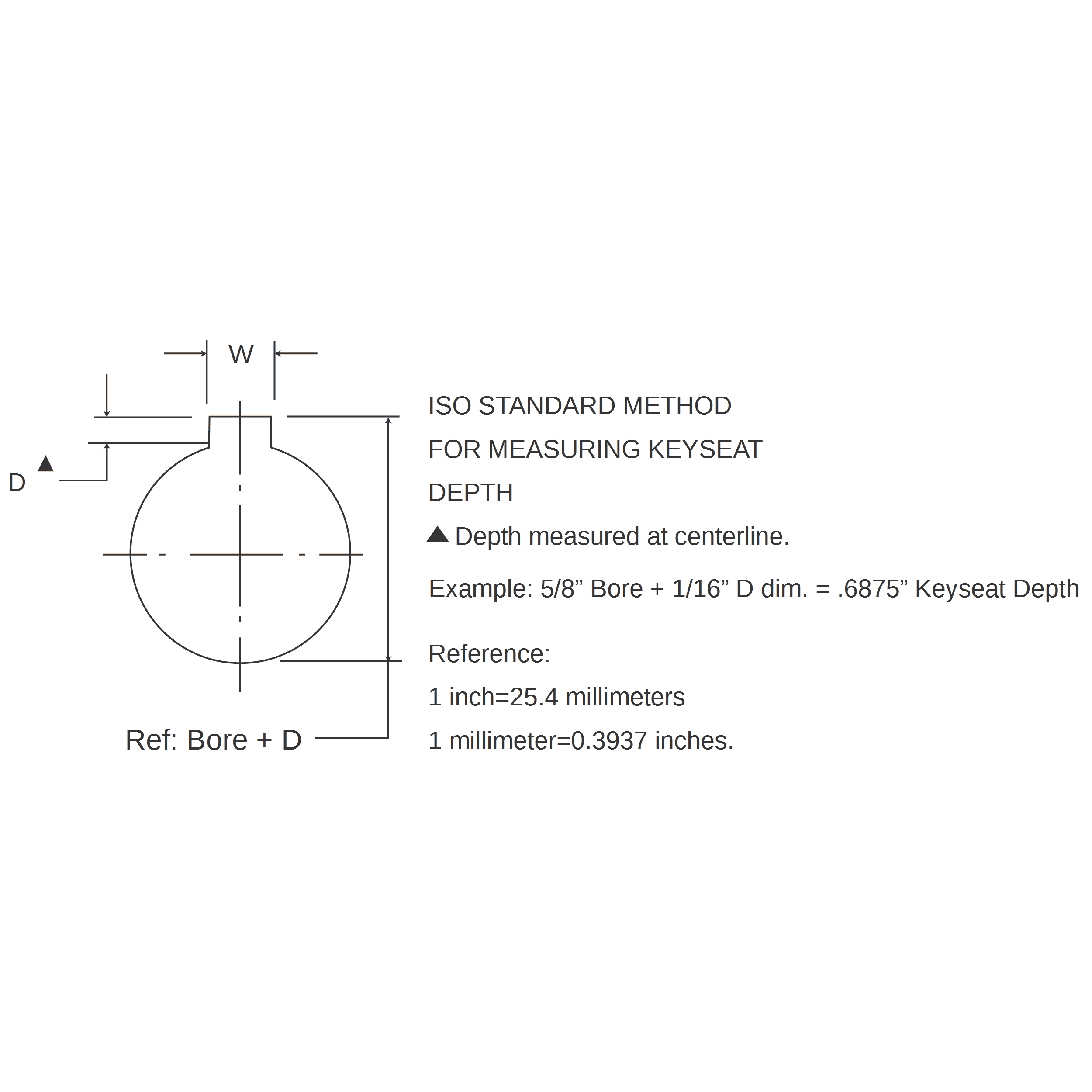

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
