Product ID: BK2808

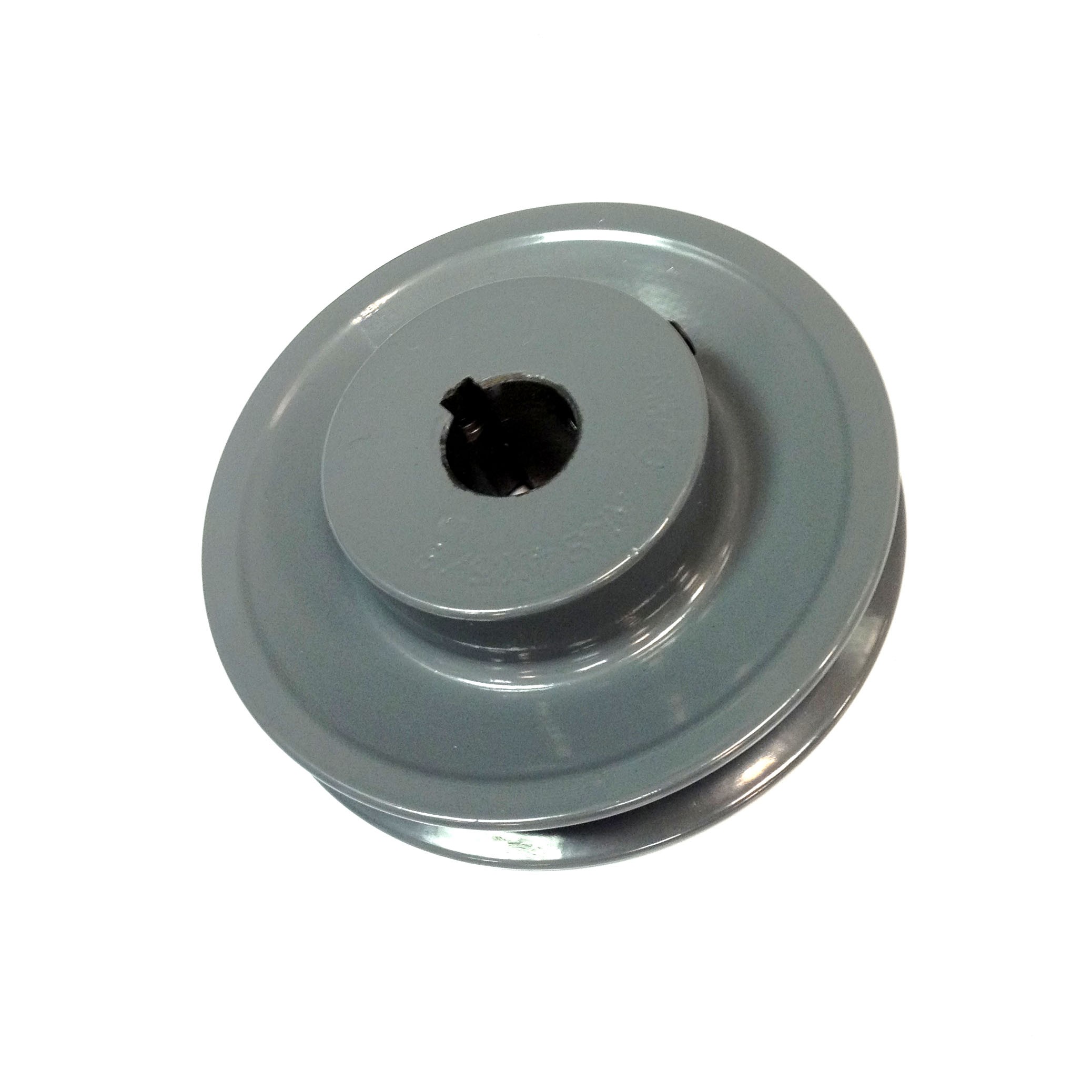

BK2808 2.95" X 1/2" BK Single Groove V-Pulley

Selected accessories will also be added to cart
$6.80 / Each
Quantity:

Available Stock: 2

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK288
BK2808
BK28X1/2
Bore 1/2"

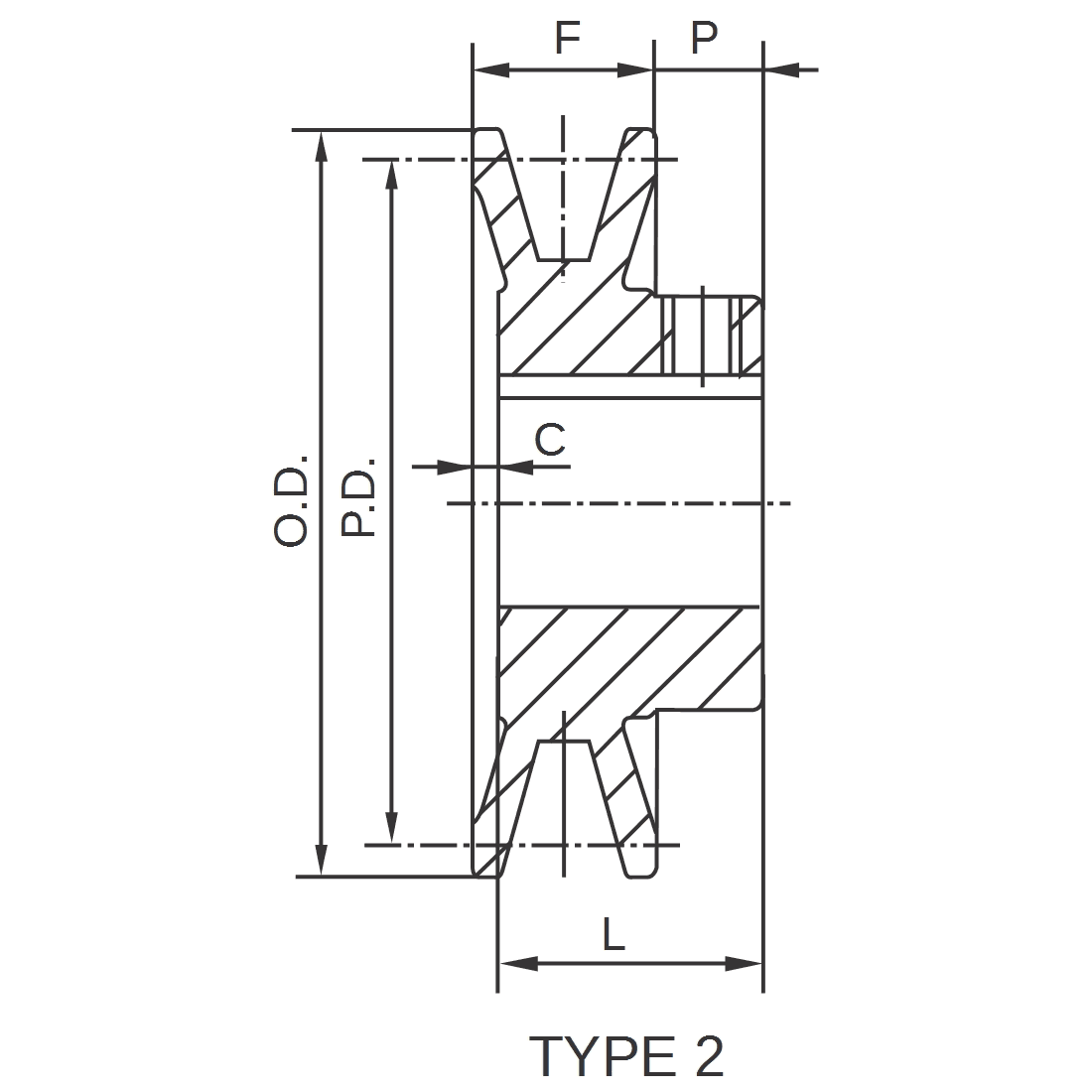

Sheave Cross Section BK
Outside Diameter 2.95"
Pulley Diameter “A” 2.20"
Pulley Diameter “B” 2.60"
Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.8 lbs
Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
