Product ID: BK2812

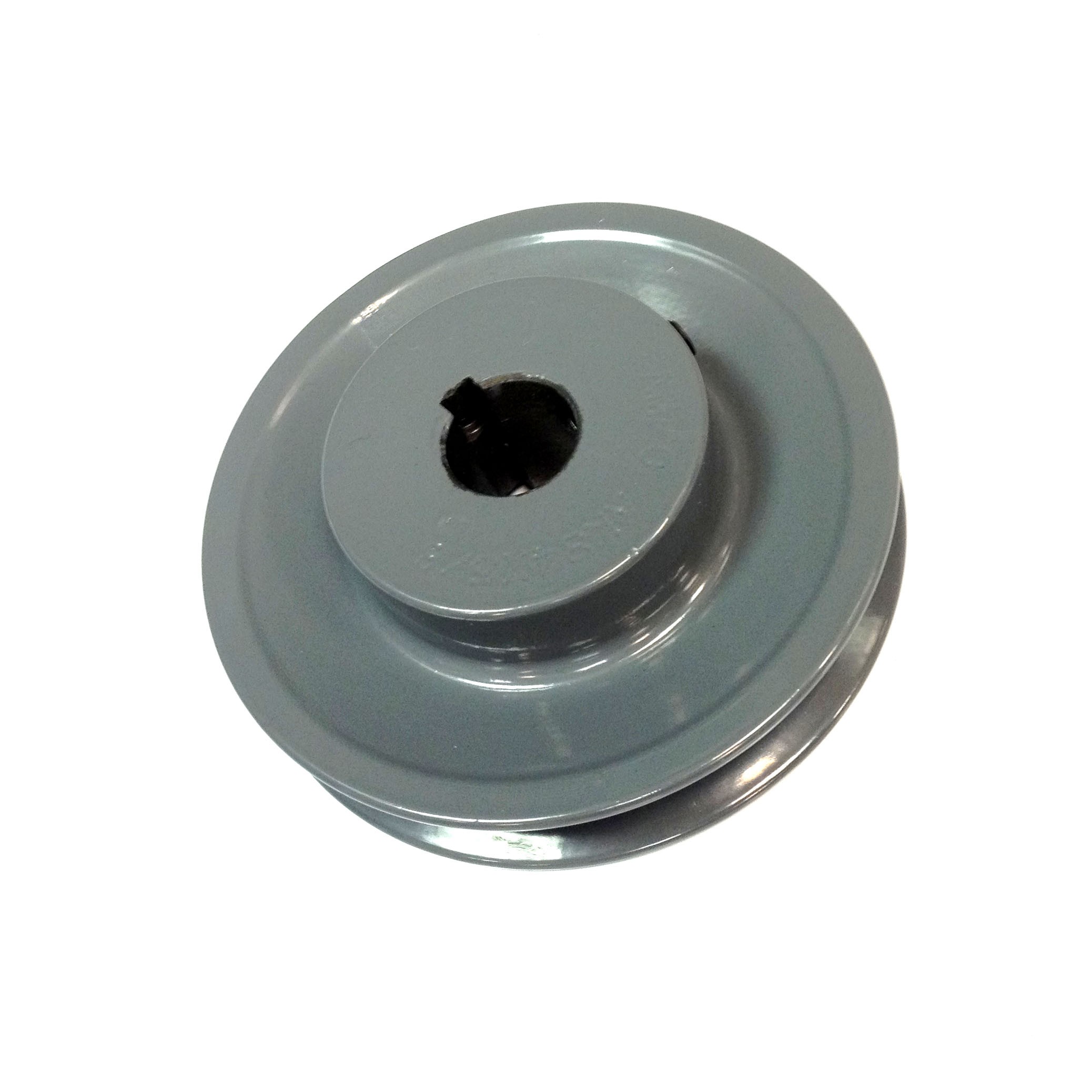

BK2812 2.95" X 3/4" BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK28X3/4

Available Stock: 2
Selected accessories will also be added to cart
$10.32 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number BK2812
Bore 3/4"

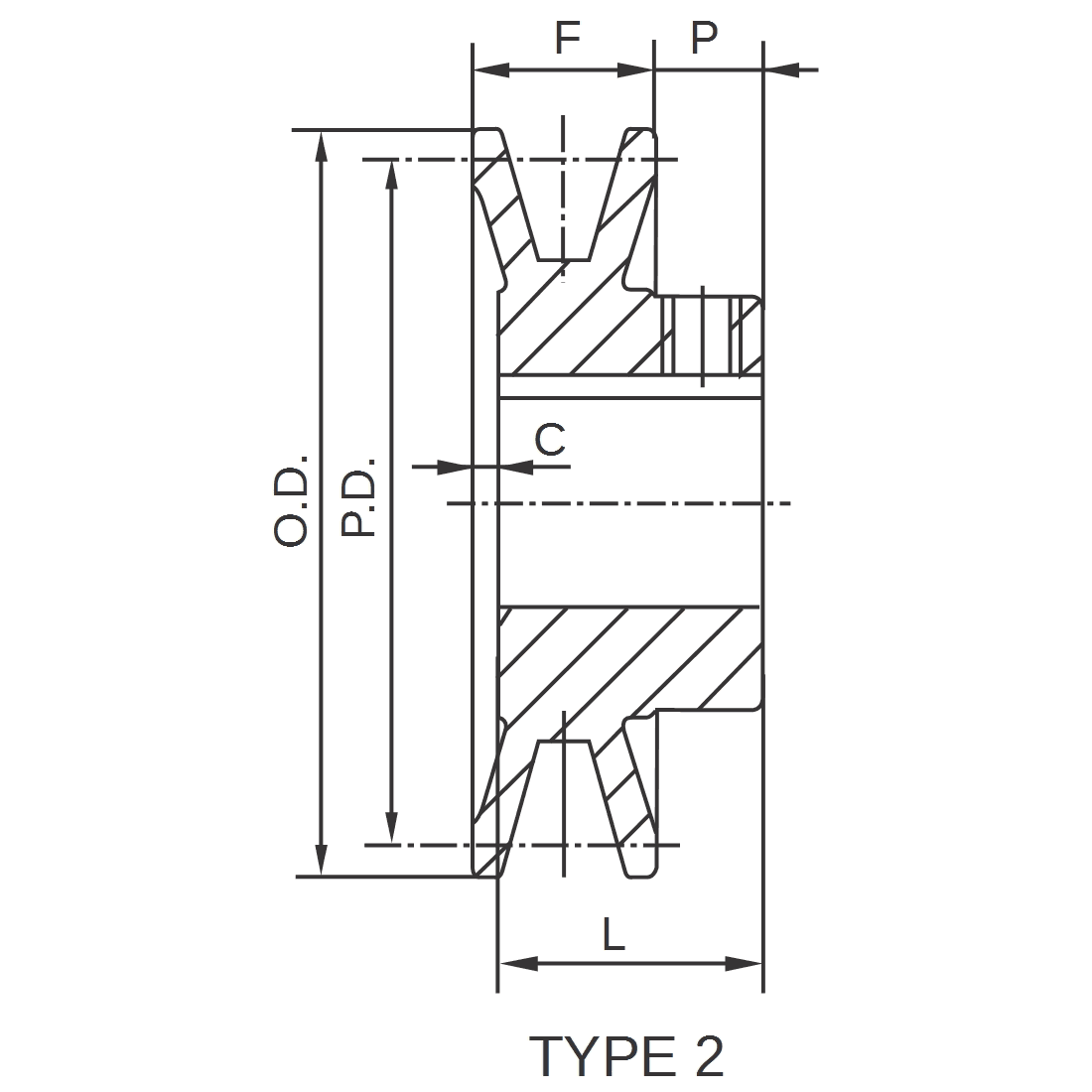

Sheave Cross Section BK
Outside Diameter 2.95"
Pulley Diameter “A” 2.20"
Pulley Diameter “B” 2.60"
Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.8 lbs

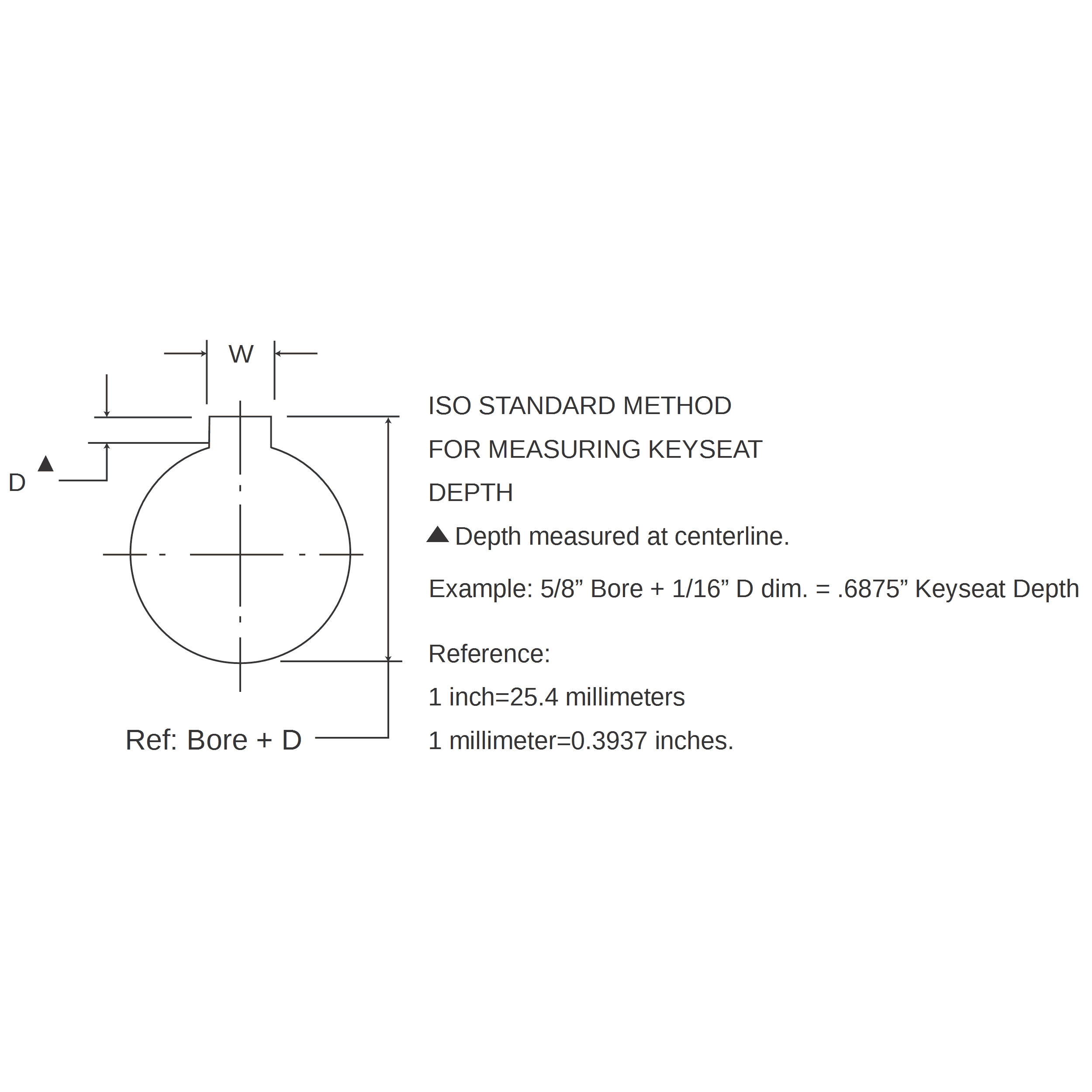

Keyseat (WxD) 3/16" x 3/32
Set Screw(s) Yes, 2
Country of Origin Various
