Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged

Brand	Leeson Various
Part Number	BK30H
Outside Diameter	3.15"
Pulley Diameter "A"	2.40"
Pulley Diameter "3L"	2.80"
Type	1

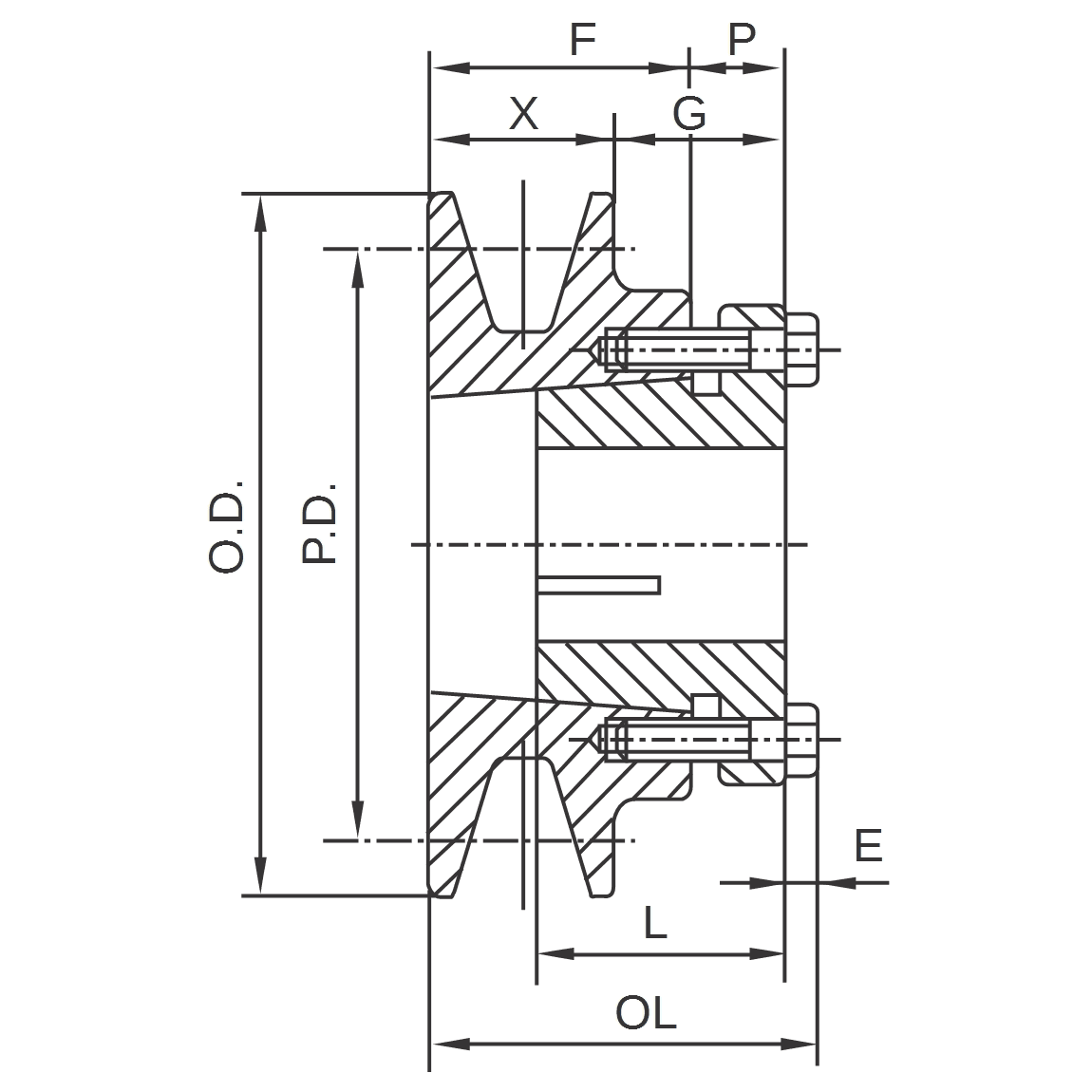

Dimension "OL"	1-15/16"
Dimension "F"	7/8"
Dimension "L"	1-1/4"
Dimension "P"	7/8"
Dimension "X"	1-5/16"
Dimension "G"	7/16"
Dimension "E"	3/16"
Approximate Weight	1.2 lbs
