Specifications

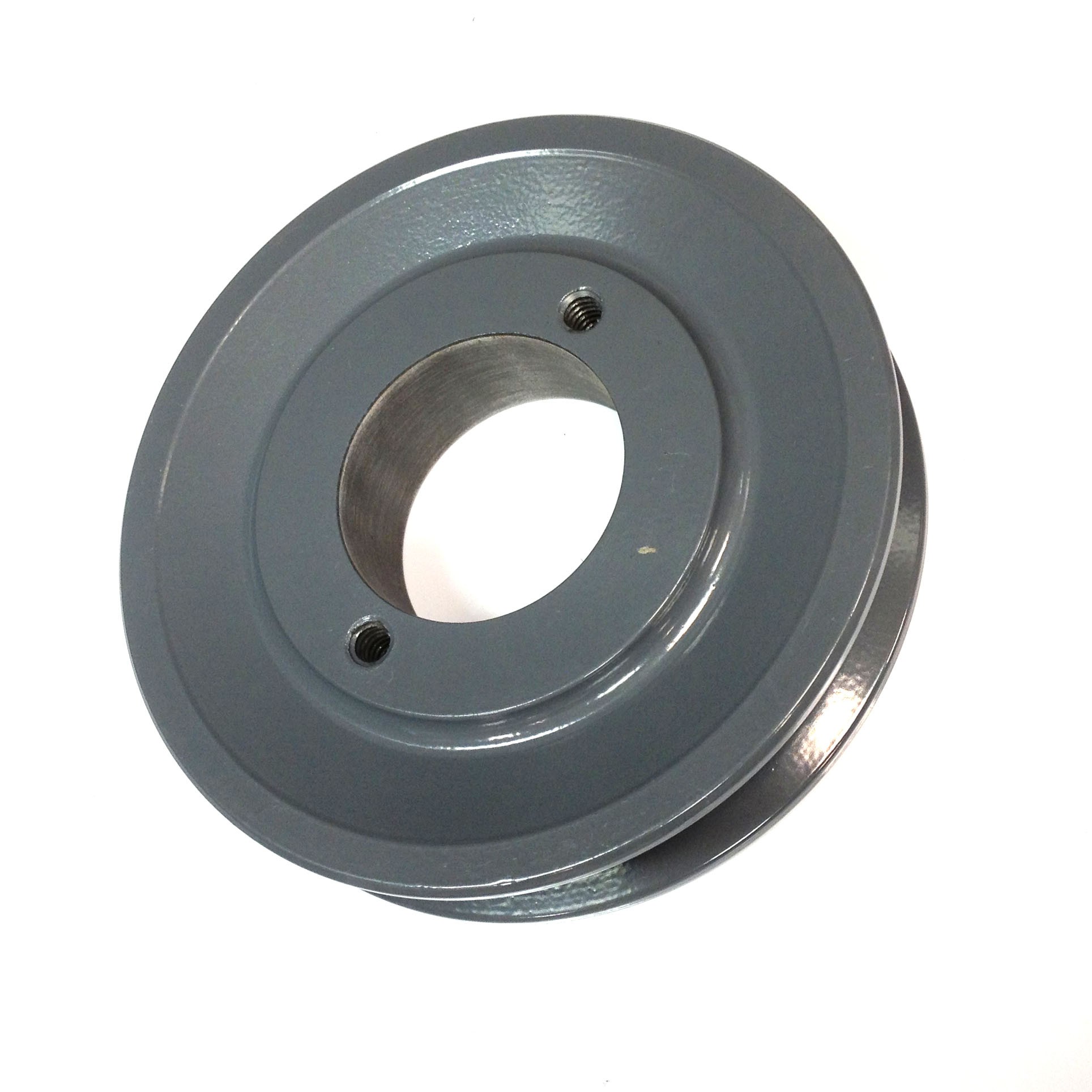

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged

Brand	AMEC Various
Part Number	BK32H
Outside Diameter	3.35"
Pulley Diameter "A"	2.60"
Pulley Diameter "3L"	3.00"
Type	1

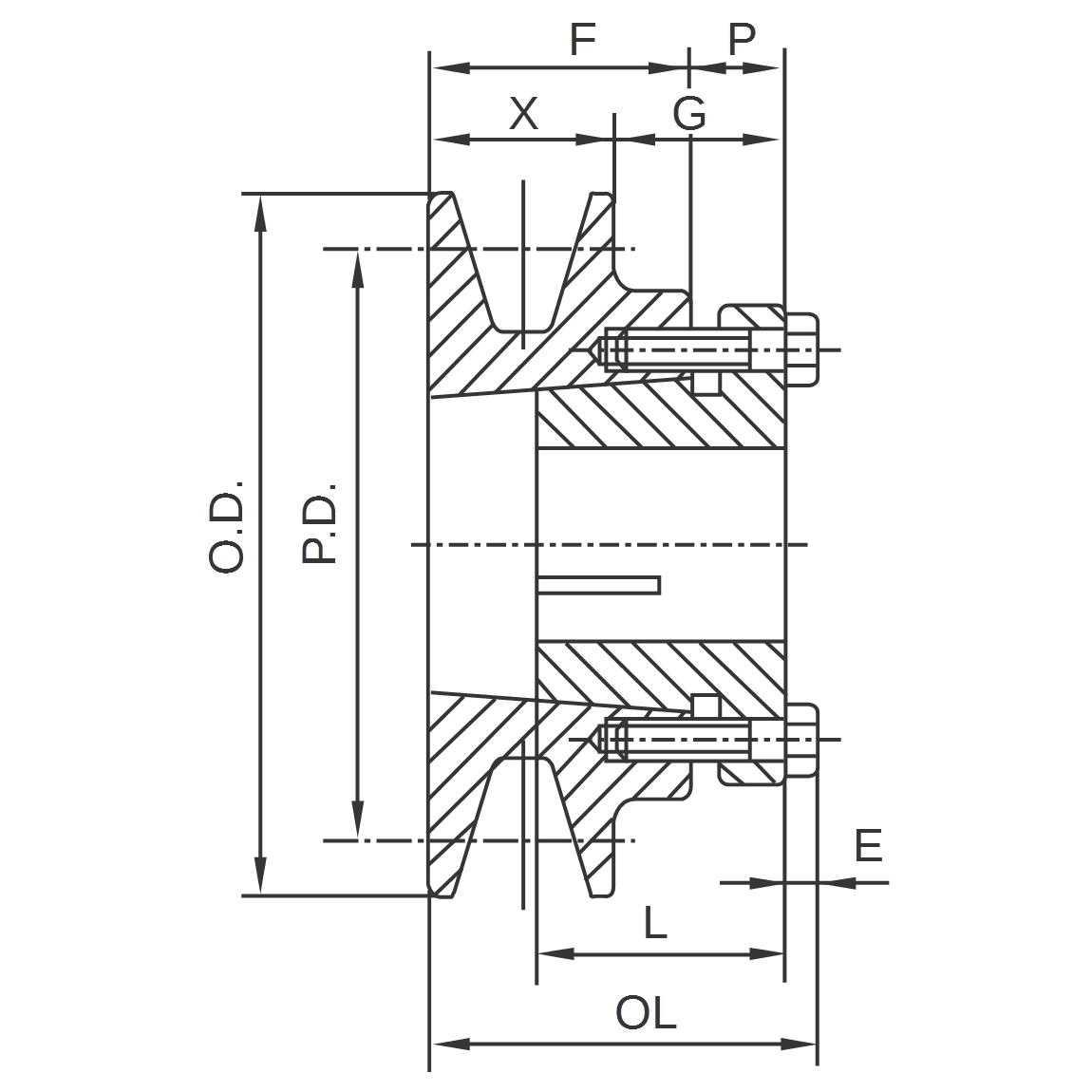

Dimension "OL"	1-15/16"
Dimension "F"	7/8"
Dimension "L"	1-1/4"
Dimension "P"	7/8"
Dimension "X"	1-5/16"
Dimension "G"	7/16"
Dimension "E"	3/16"
Approximate Weight	1.4 lbs
