/Products/Pulleys & Sheaves/BK Single Groove/BK3408 3.55" X 1/2" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK3408

BK3408 3.55" X 1/2" BK Single Groove V-Pulley

MFG: Browning (Emerson Power Transmission Products)
MFG Part Number: BK34X1/2

Available Stock: 2
Selected accessories will also be added to cart
$4.80 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Browning
Part Number BK348
Bore 1/2"
Sheave Cross Section BK

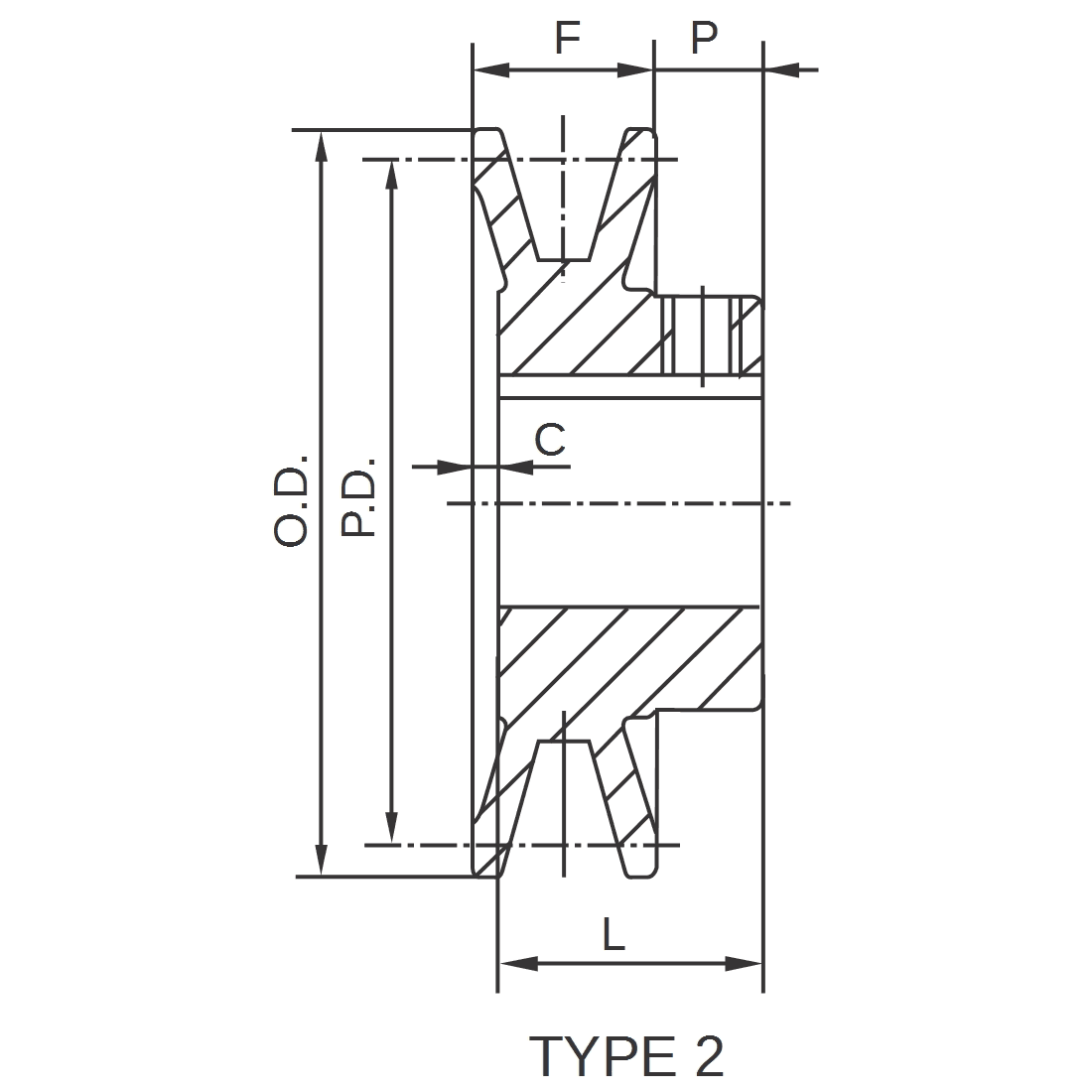

Outside Diameter 3.55"
Pulley Diameter “A” 2.80"
Pulley Diameter “B” 3.20"
Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 1.3 lbs
Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
