Product ID: BK3410

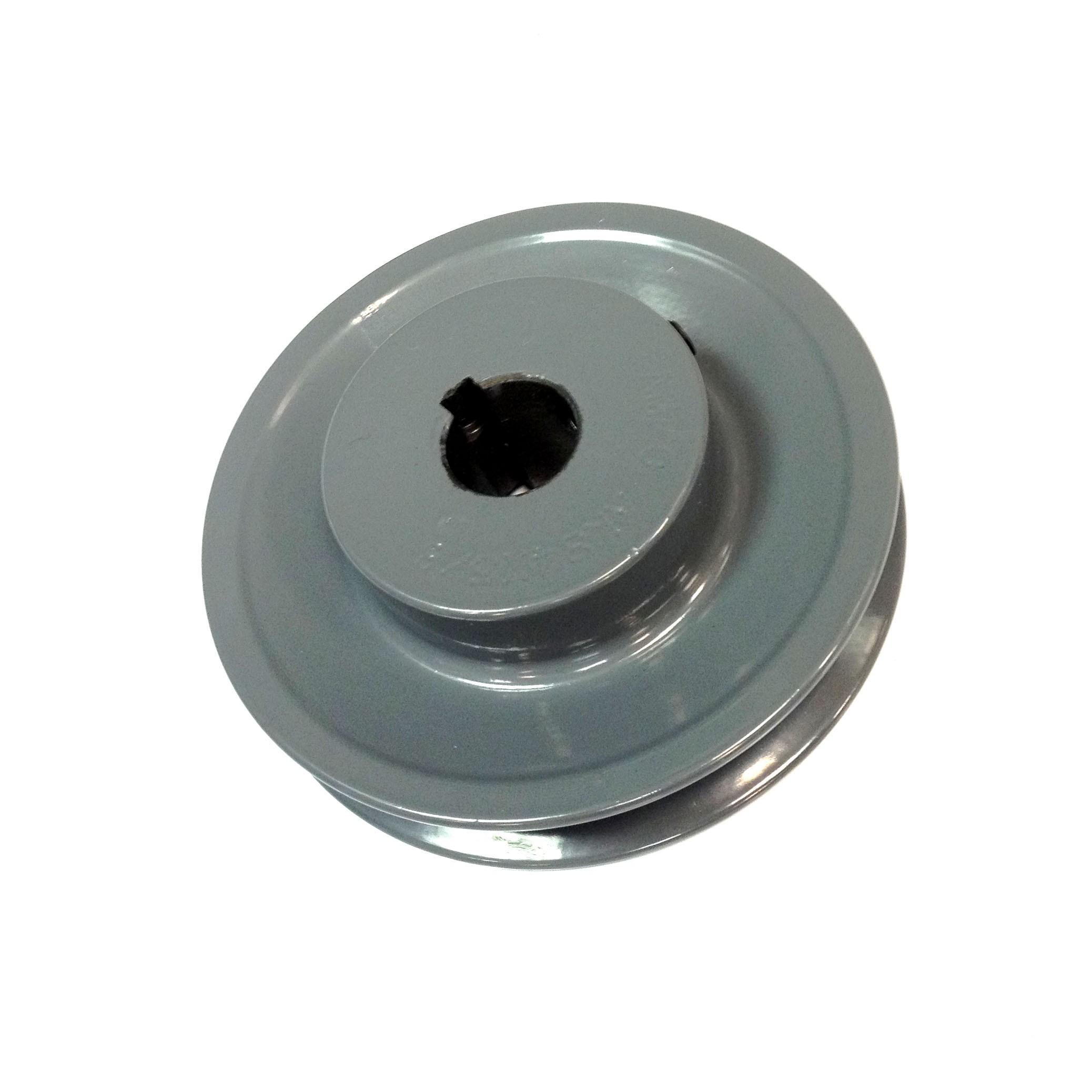

BK3410 3.55" X 5/8" BK Single Groove V-Pulley

MFG: New Standard Power Transmission
MFG Part Number: BK34-5/8

Selected accessories will also be added to cart
$16.51 / Each
Quantity:

Available Stock: 4

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK3410
BK34X5/8
Bore 5/8"
Sheave Cross Section BK
Outside Diameter 3.55"
Pulley Diameter “A” 2.80"
Pulley Diameter “B” 3.20"
Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 1.3 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
