Product ID: BK3416

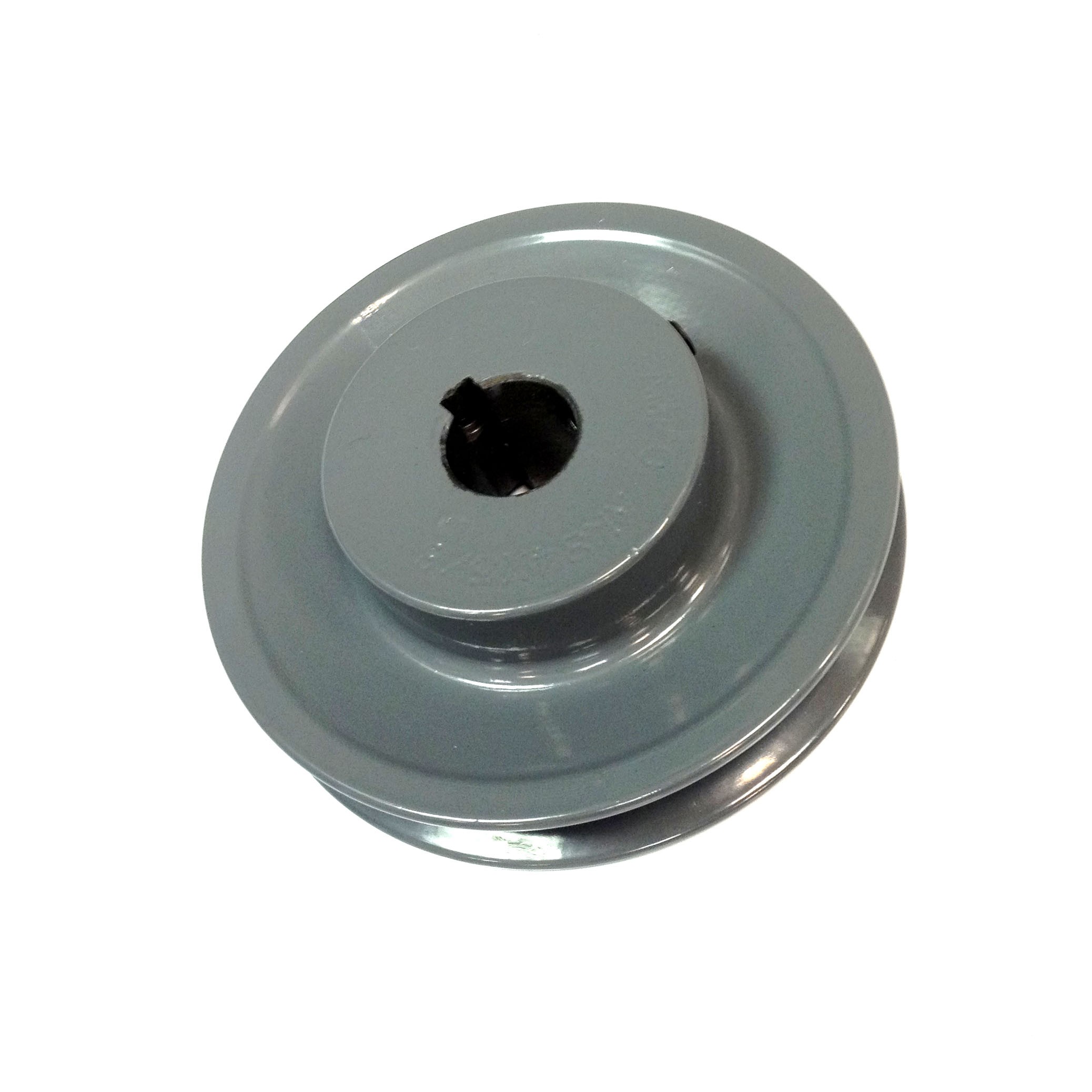

BK3416 3.55" X 1" BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK34X1

Available Stock: 2
Selected accessories will also be added to cart
$10.64 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number BK3416
Bore 1"
Sheave Cross Section BK
Outside Diameter 3.55"
Pulley Diameter “A” 2.80"
Pulley Diameter “B” 3.20"

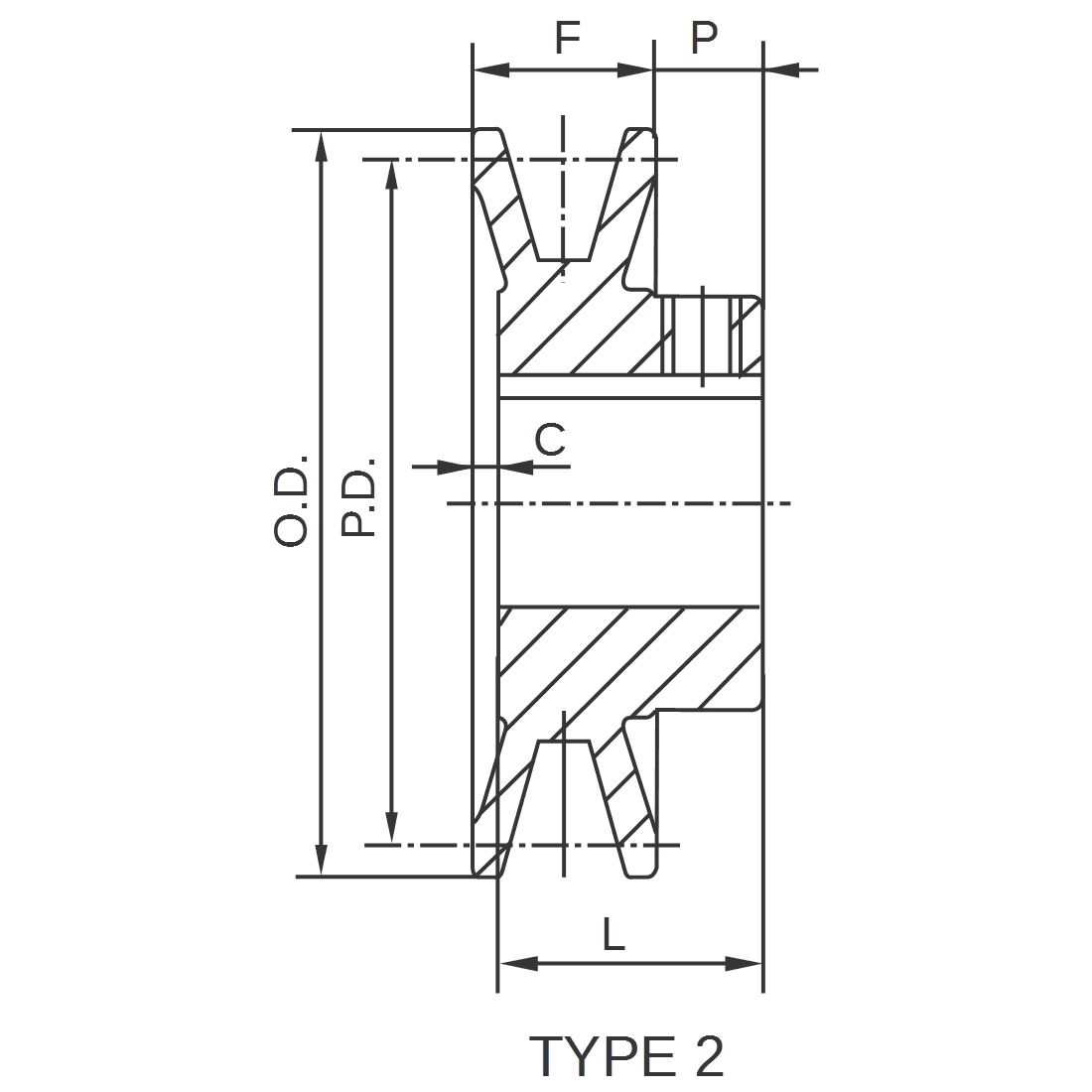

Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 1.3 lbs

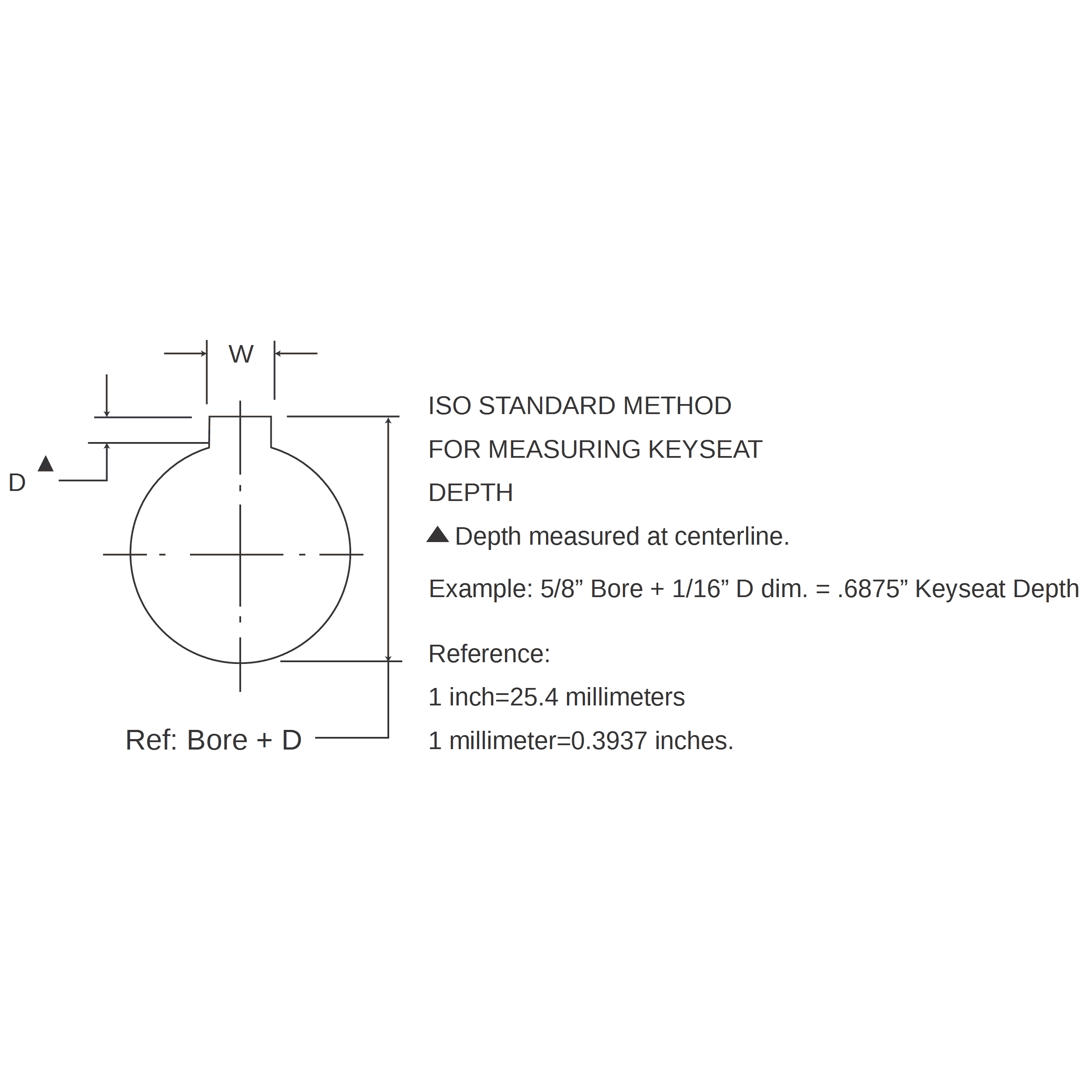

Keyseat (WxD) 1/4" x 1/8"
Set Screw(s) Yes, 2
Country of Origin Various
