Product ID: BK3614

BK3614 3.75" X 7/8" BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK36X7/8

Available Stock: 2
Selected accessories will also be added to cart
$17.34 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Various
Part Number BK3614
BK36X7/8
Bore 7/8"

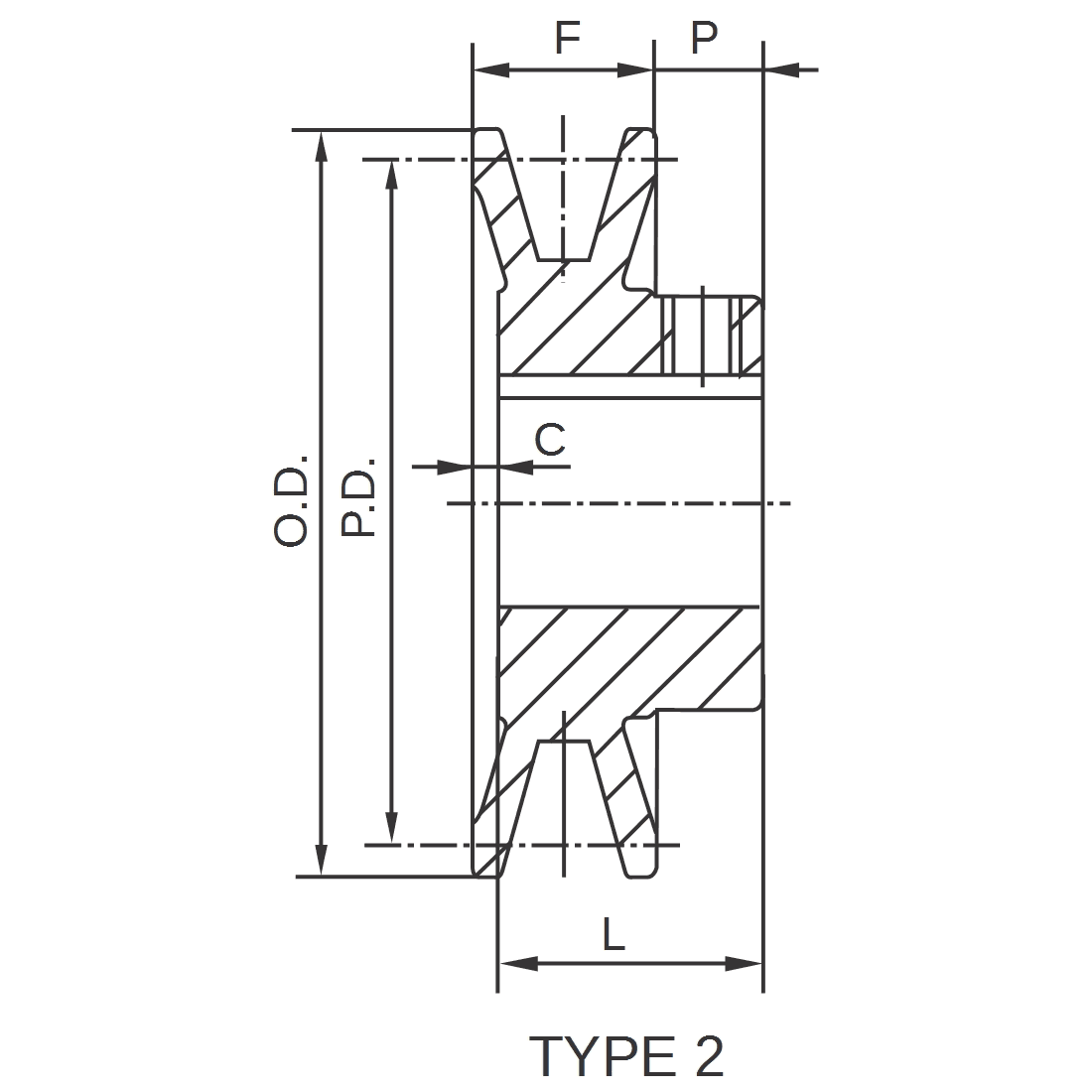

Sheave Cross Section BK
Outside Diameter 3.75"
Pulley Diameter “A” 3.00"
Pulley Diameter “B” 3.40"
Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 1.5 lbs

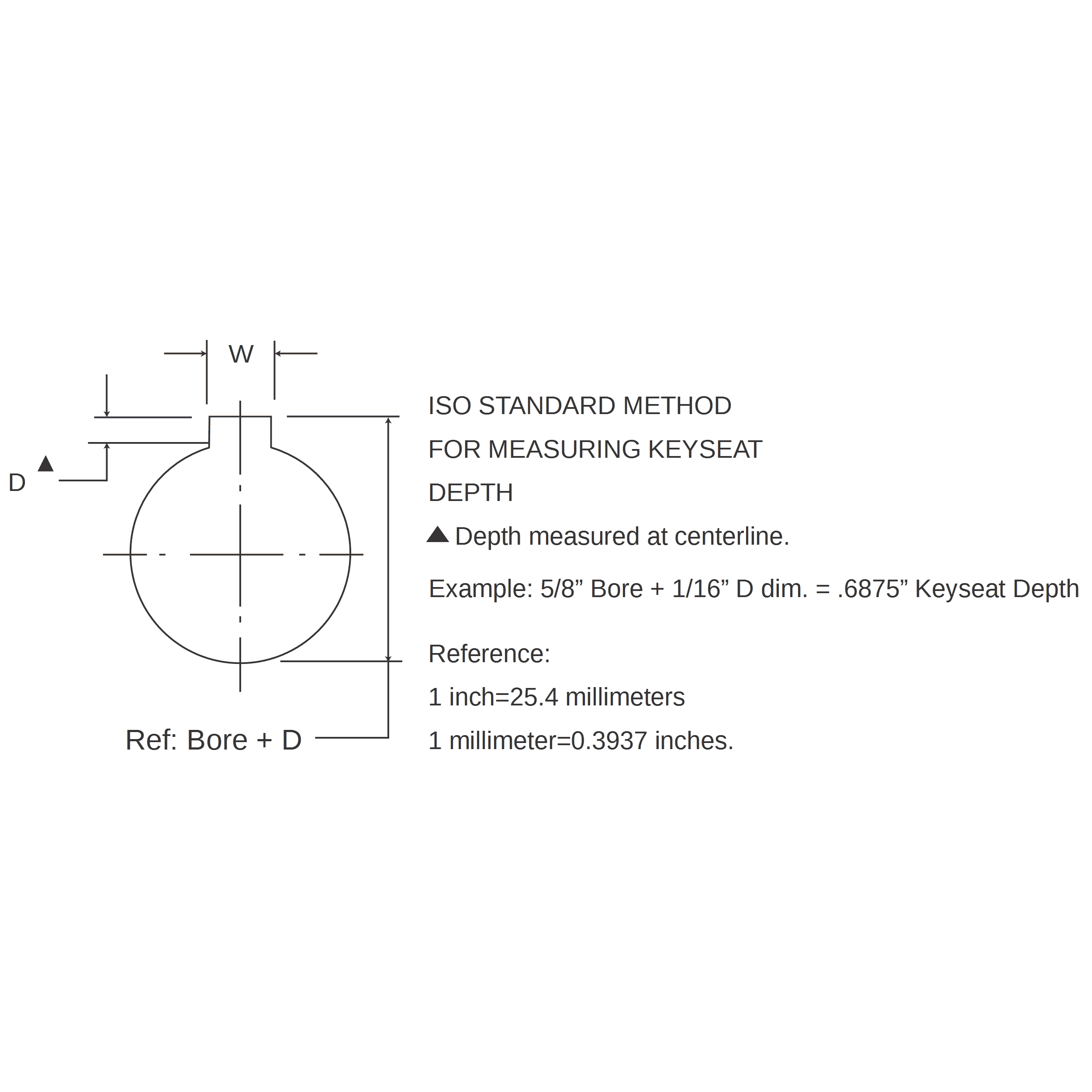

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
