/Products/Pulleys & Sheaves/BK Single Groove/BK4010 3.95" X 5/8" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK4010

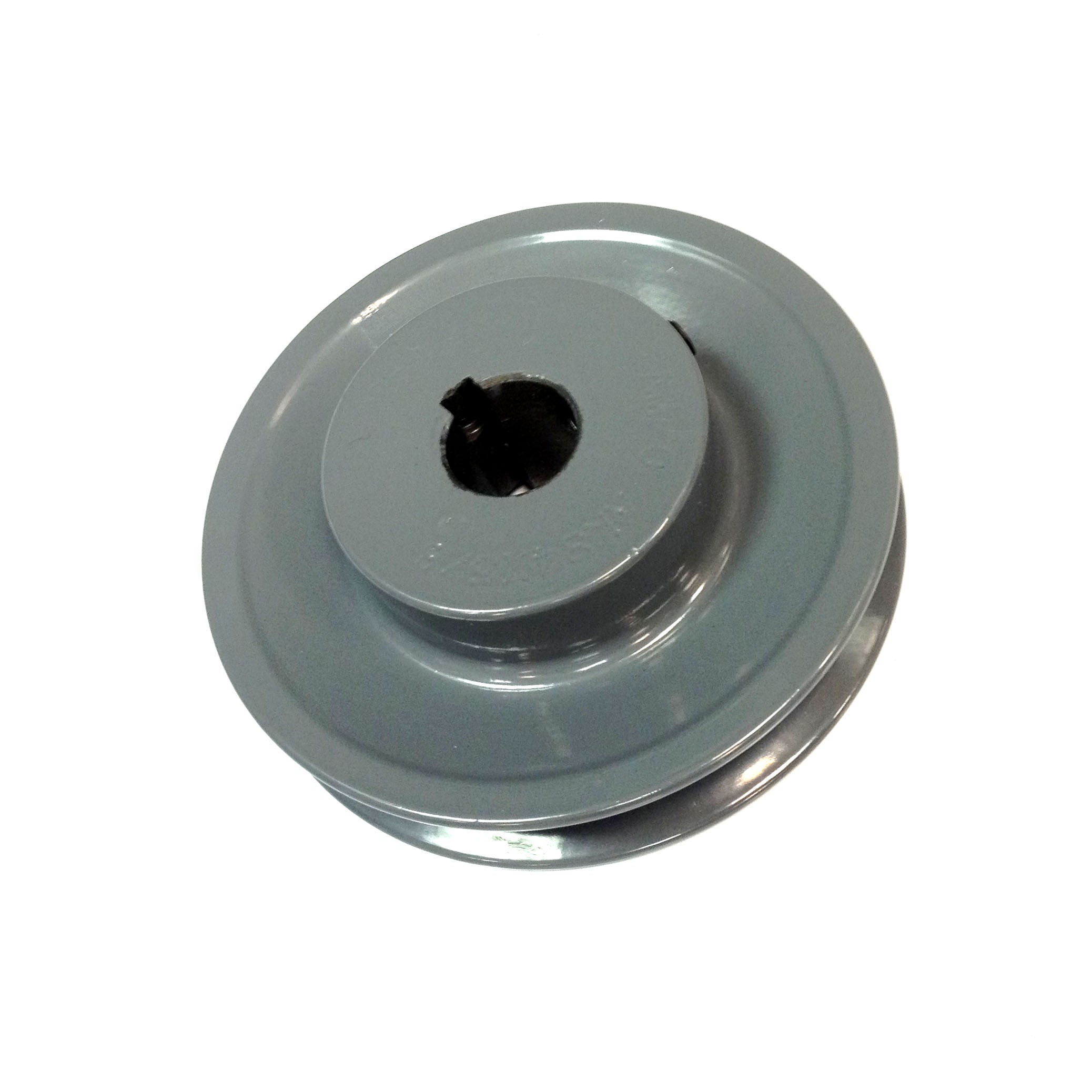

BK4010 3.95" X 5/8" BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK40X5/8

Available Stock: 3
Selected accessories will also be added to cart
$17.90 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Part Number BK4010
Bore 5/8"
Sheave Cross Section BK
Outside Diameter 3.95"
Pulley Diameter “A” 3.20"
Pulley Diameter “B” 3.60"
Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 1.6 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
