/Products/Pulleys & Sheaves/BK Single Groove/BK5016 4.75" X 1" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK5016

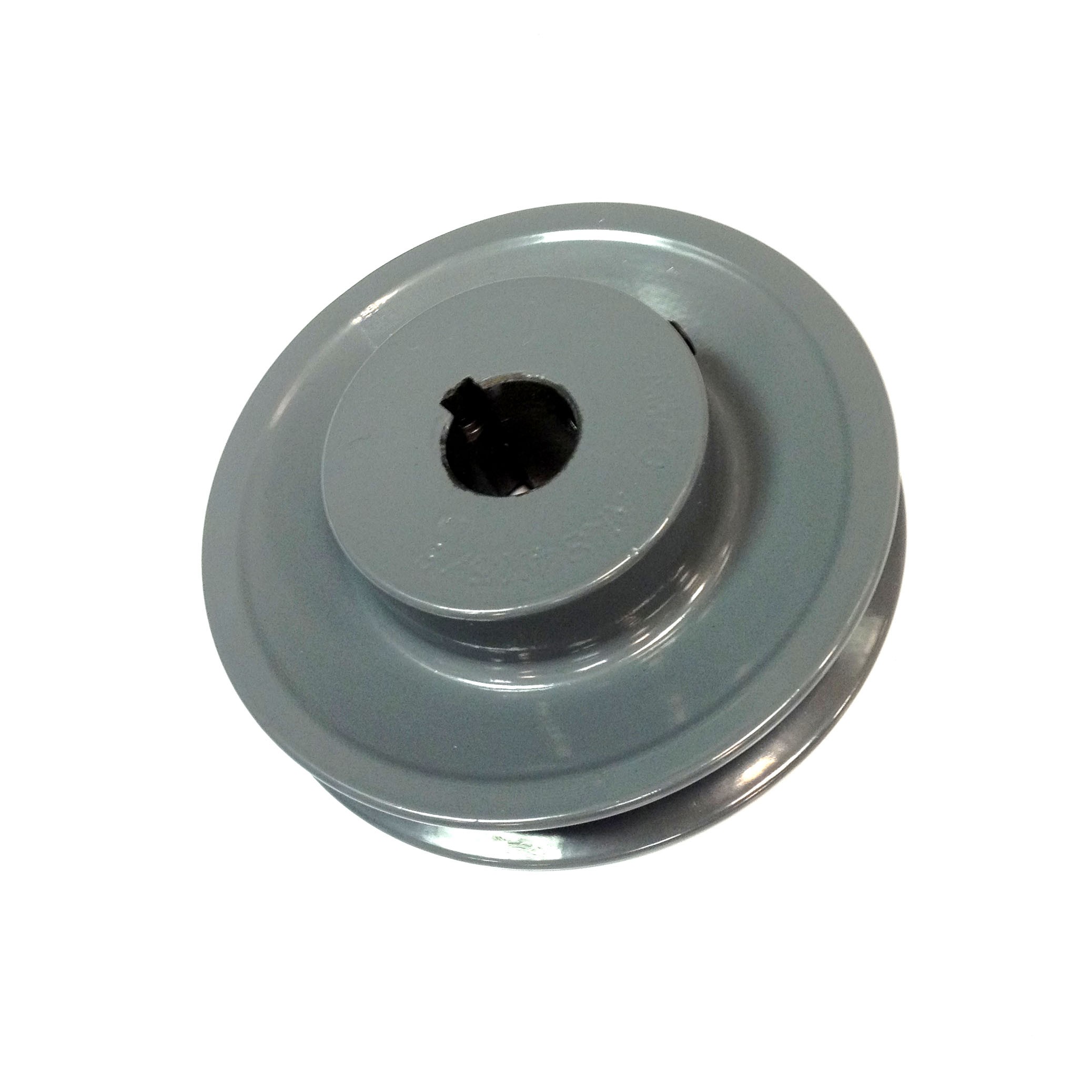

BK5016 4.75" X 1" BK Single Groove V-Pulley

MFG: Browning (Emerson Power Transmission Products)
MFG Part Number: BK50X1

Temporarily out of stock
Selected accessories will also be added to cart
$14.46 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Browning
Part Number BK5016
Bore 1"
Sheave Cross Section BK
Outside Diameter 4.75"
Pulley Diameter “A” 4.00"
Pulley Diameter “B” 4.40"
Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 2.0 lbs
Keyseat (WxD) 1/4" x 1/8"
Set Screw(s) Yes, 2
Country of Origin Various
