/Products/Pulleys & Sheaves/BK Single Groove/BK5214 4.95" X 7/8" BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK5214

BK5214 4.95" X 7/8" BK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: BK52X7/8

Available Stock: 1
Selected accessories will also be added to cart
$25.74 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK5214
Bore 7/8"
Sheave Cross Section BK
Outside Diameter 4.95"
Pulley Diameter “A” 4.20"
Pulley Diameter “B” 4.60"

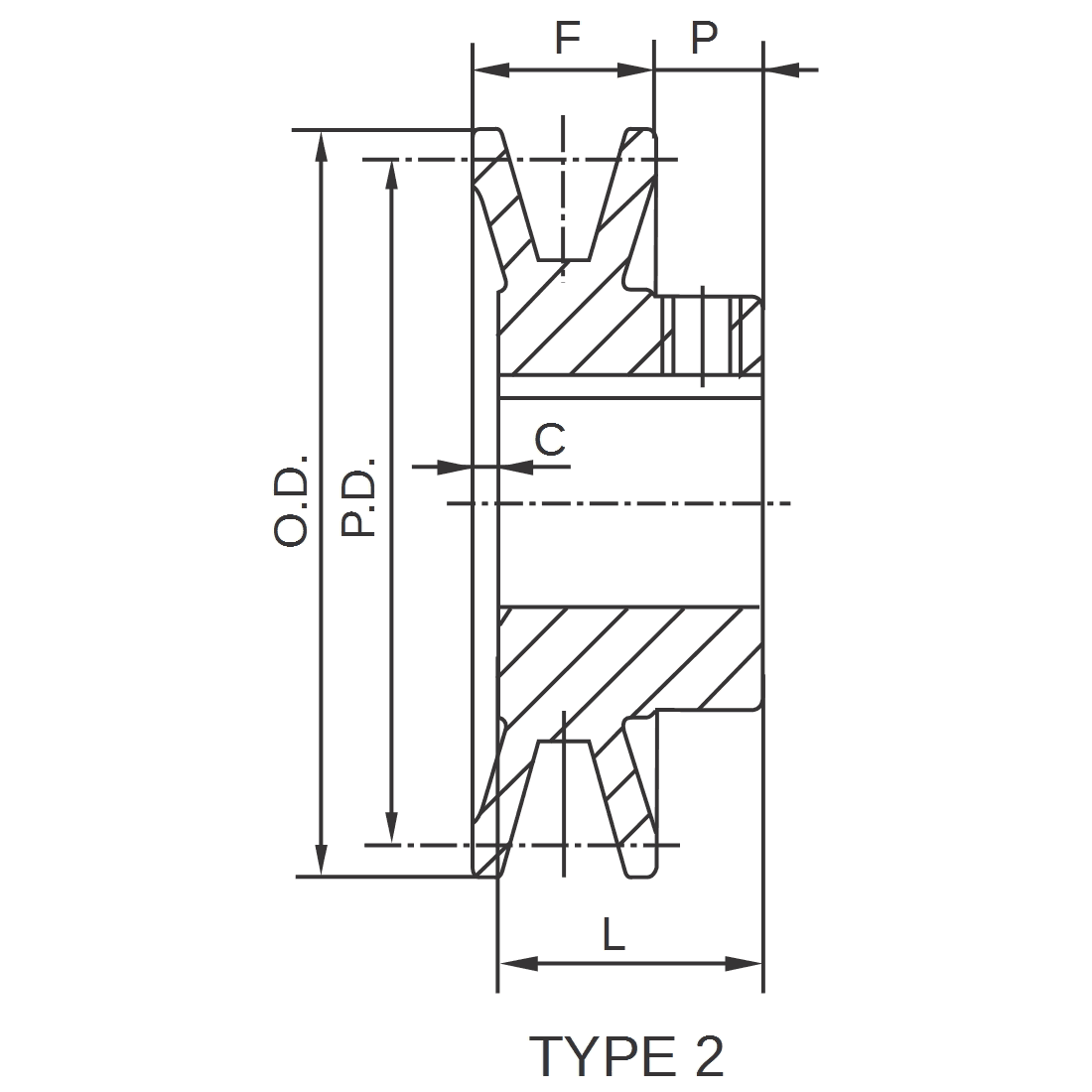

Type 2
Pulley Width “F” 7/8"
Dimension “L” 1-5/32"
Dimension “P” 13/32"
Recess Depth “C” 1/8"
Approximate Weight 2.1 lbs

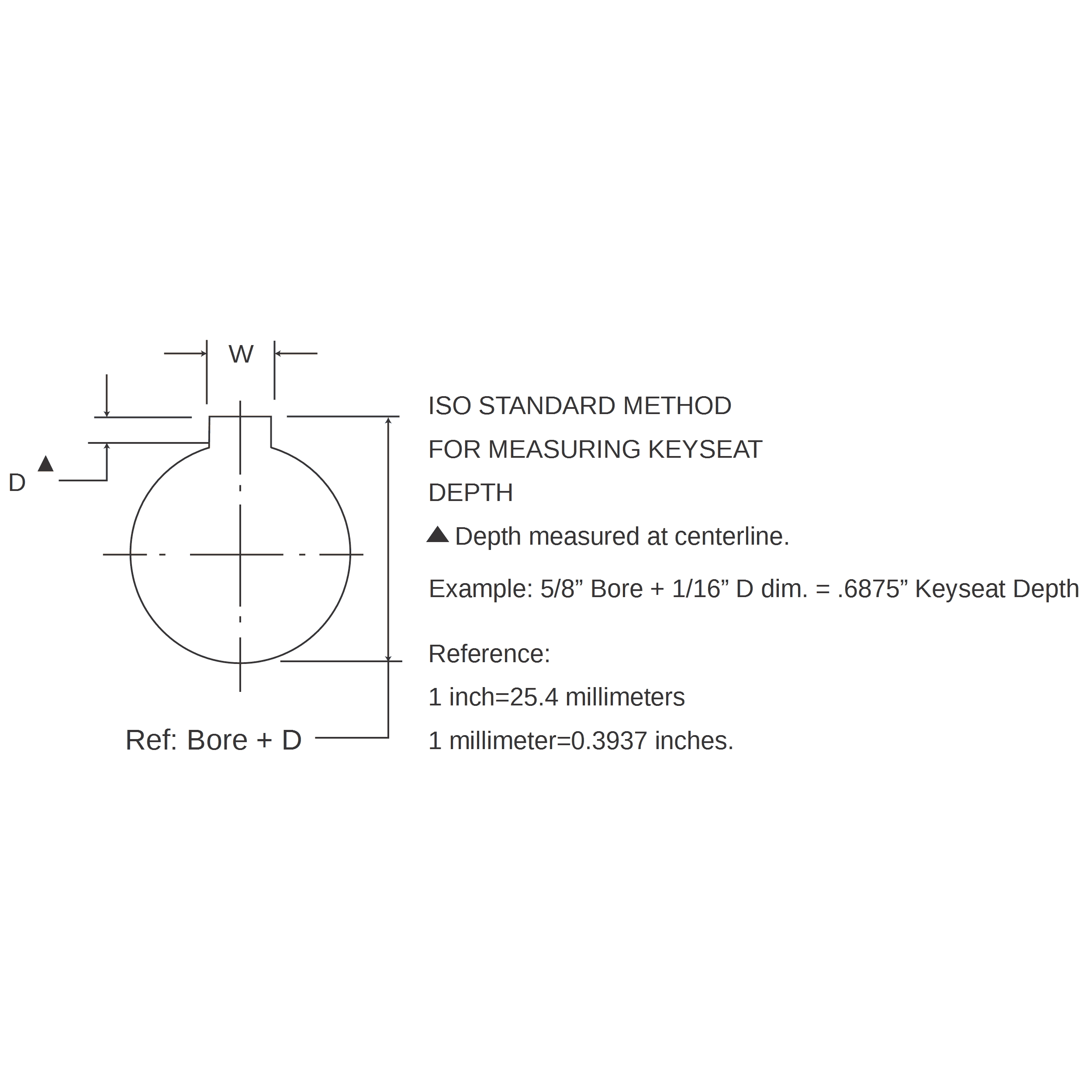

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
