/Products/Pulleys & Sheaves/BK-H Single Groove/BK72H 6.95" "H" Style BK Single Groove V-Pulley
Click Image to Expand

Product ID: BK72H

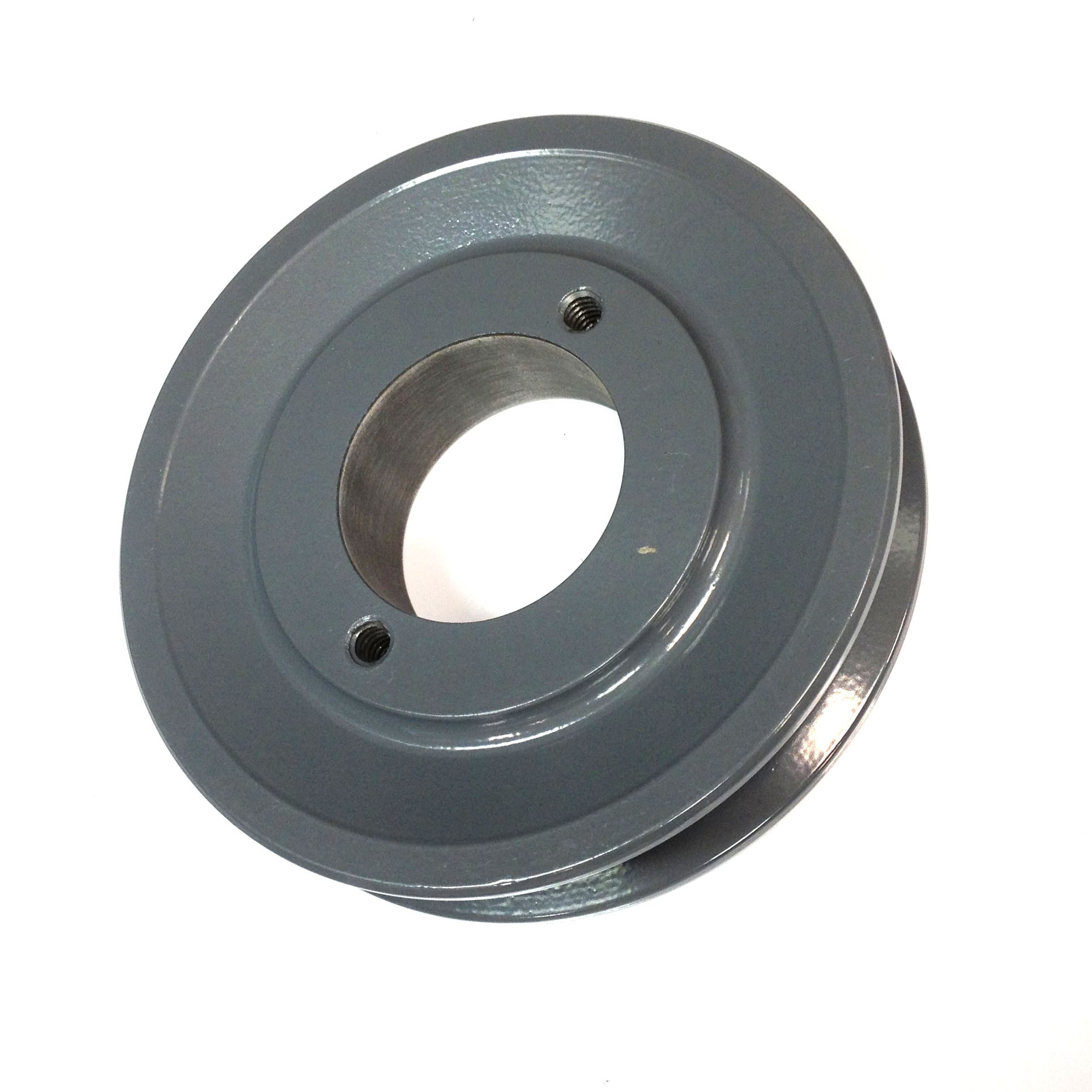

BK72H 6.95" "H" Style BK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: BK72H

Available Stock: 1
Selected accessories will also be added to cart
$20.70 / Each
Quantity:

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged
Brand AMEC
Various
Part Number BK72H

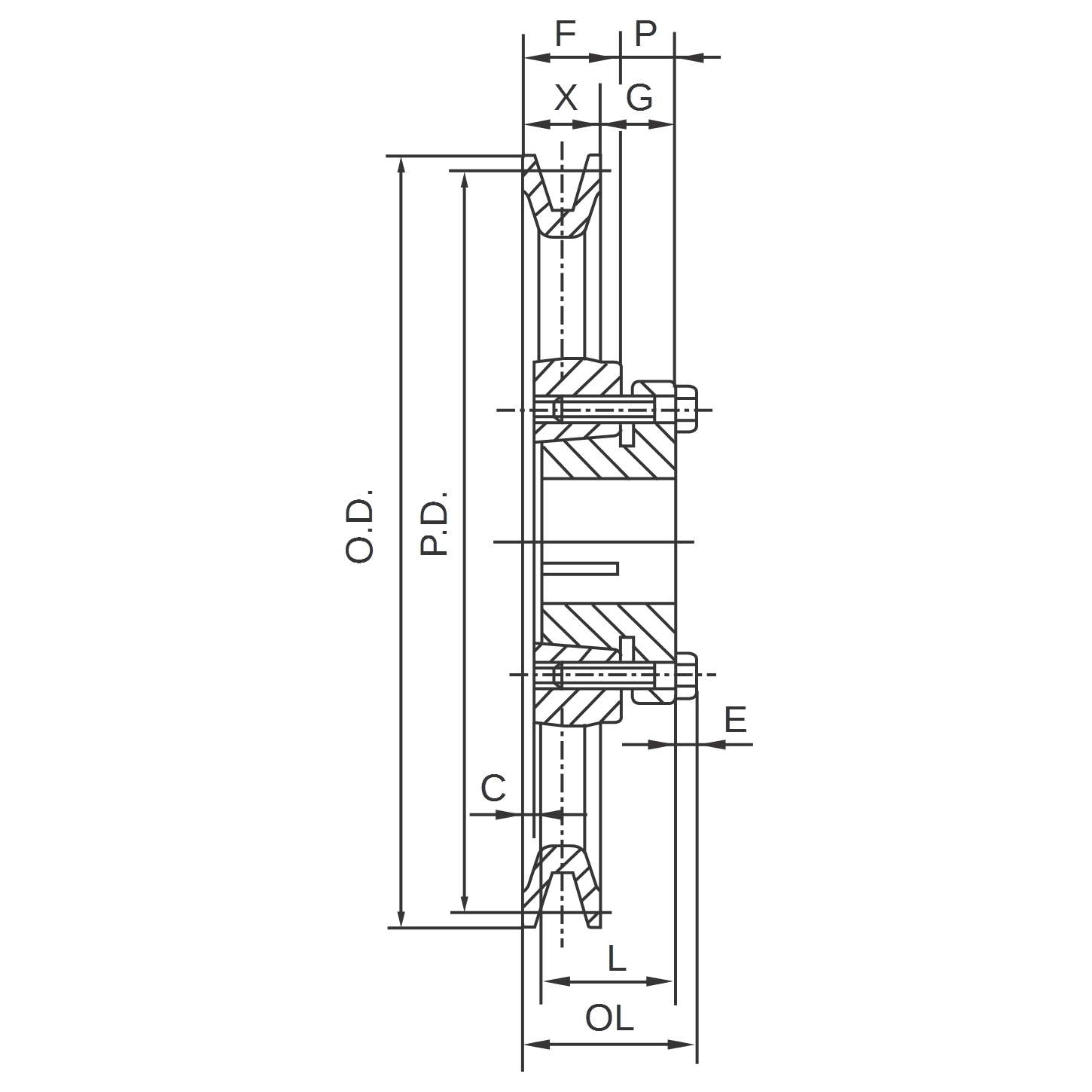

Outside Diameter 6.95"
Pulley Diameter "A" 6.20"
Pulley Diameter "3L" 6.60"
Type 3
Dimension "OL" 1-9/16"
Dimension "F" 7/8"
Dimension "L" 1-1/4"
Dimension "P" 7/16"
Dimension "C" 1/16"
Dimension "X" 7/8"
Dimension "G" 7/16"
Dimension "E" 3/16"
Approximate Weight 3.1 lbs
UPC
