Specifications

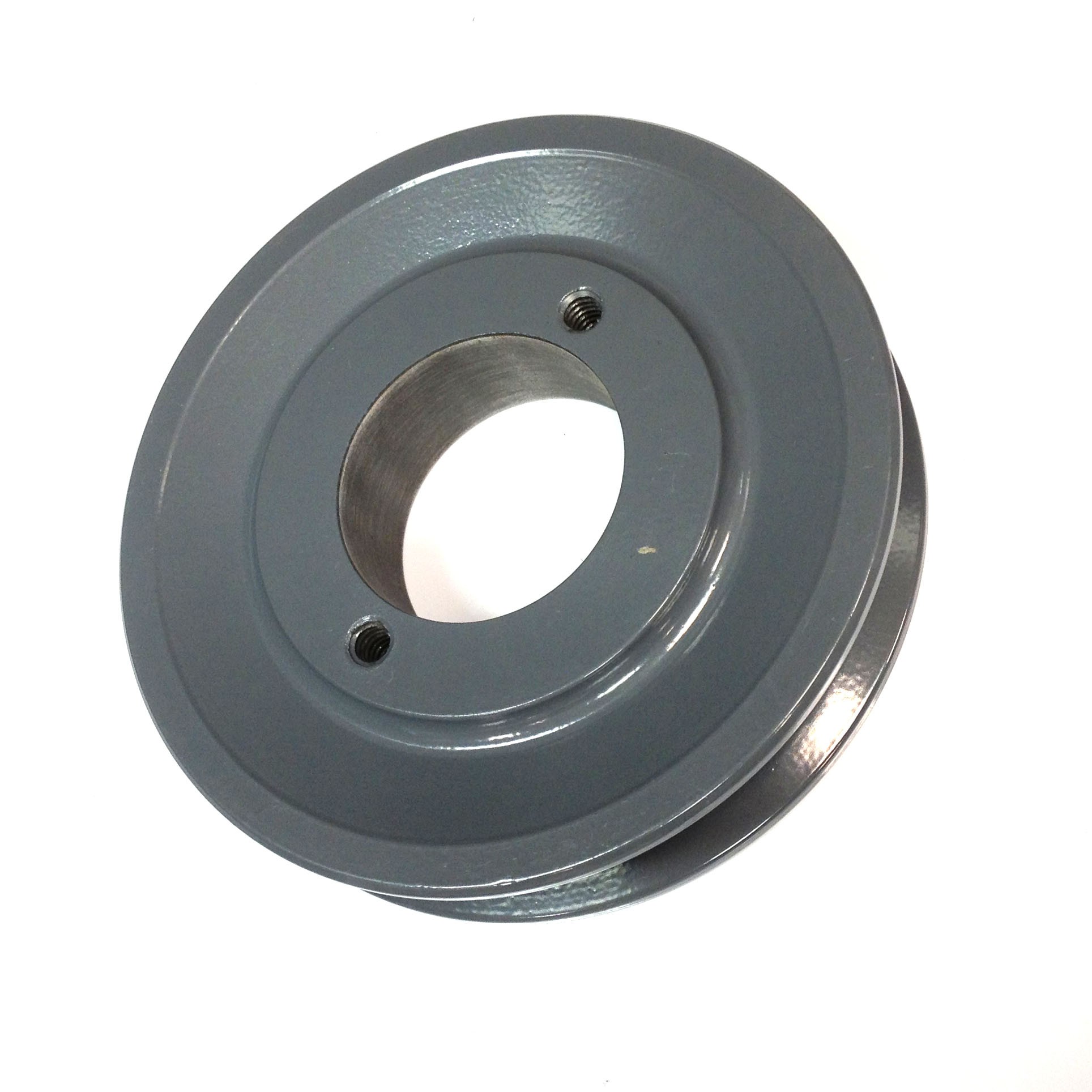

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged

Brand	Leeson
Part Number	BK85H
Outside Diameter	8.25"
Pulley Diameter "A"	7.50"
Pulley Diameter "3L"	7.90"
Type	3

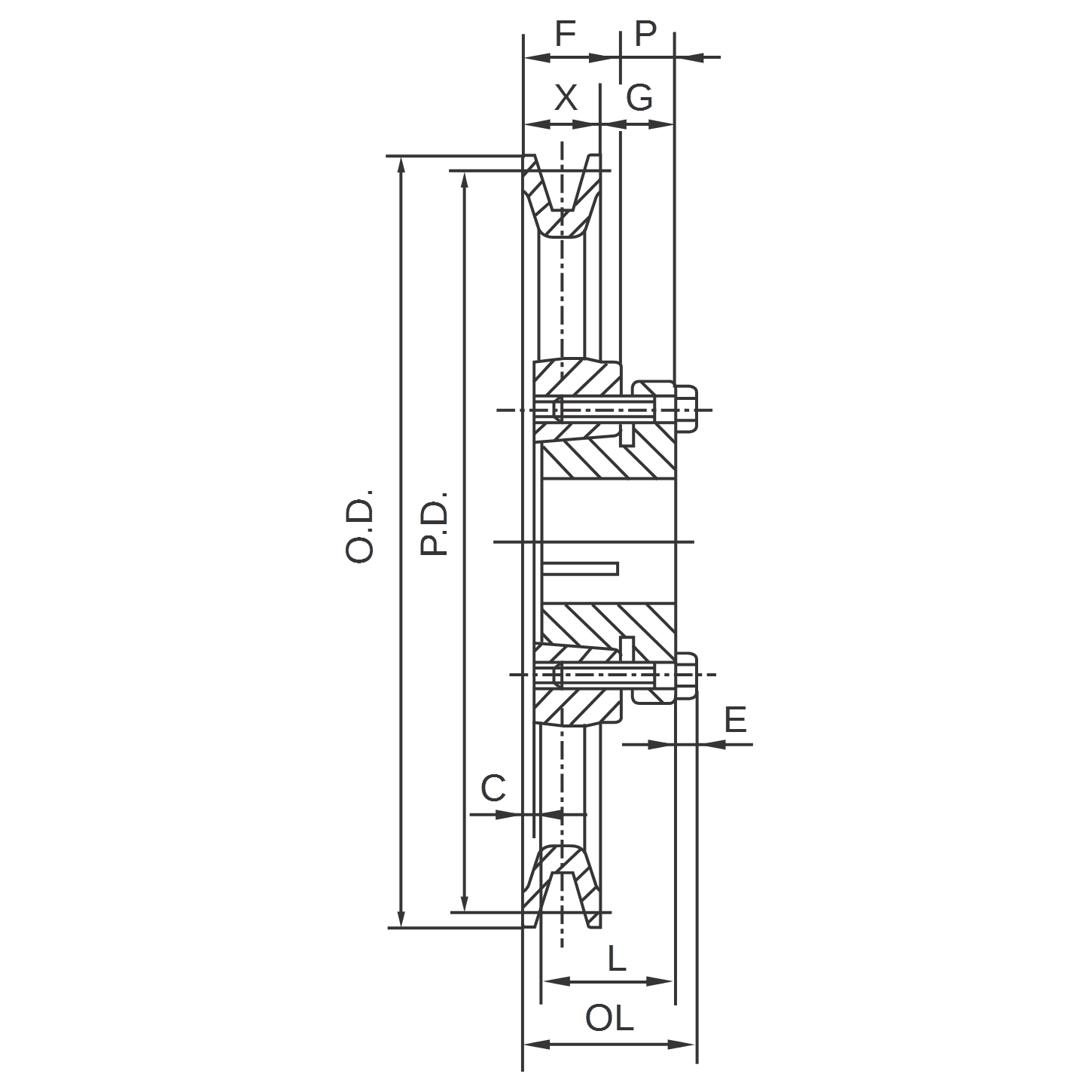

Dimension "OL"	1-9/16"
Dimension "F"	7/8"
Dimension "L"	1-1/4"
Dimension "P"	7/16"
Dimension "C"	1/16"
Dimension "X"	7/8"
Dimension "G"	7/16"
Dimension "E"	3/16"
Approximate Weight	3.8 lbs
UPC	624832037500
Country of Origin	China
