/Products/Electric Motors/Single Phase/Century/Ventilation Fan/C048 Century 1/2HP Direct Drive Fan Electric Motor, 850RPM
Click Image to Expand

Product ID: C048

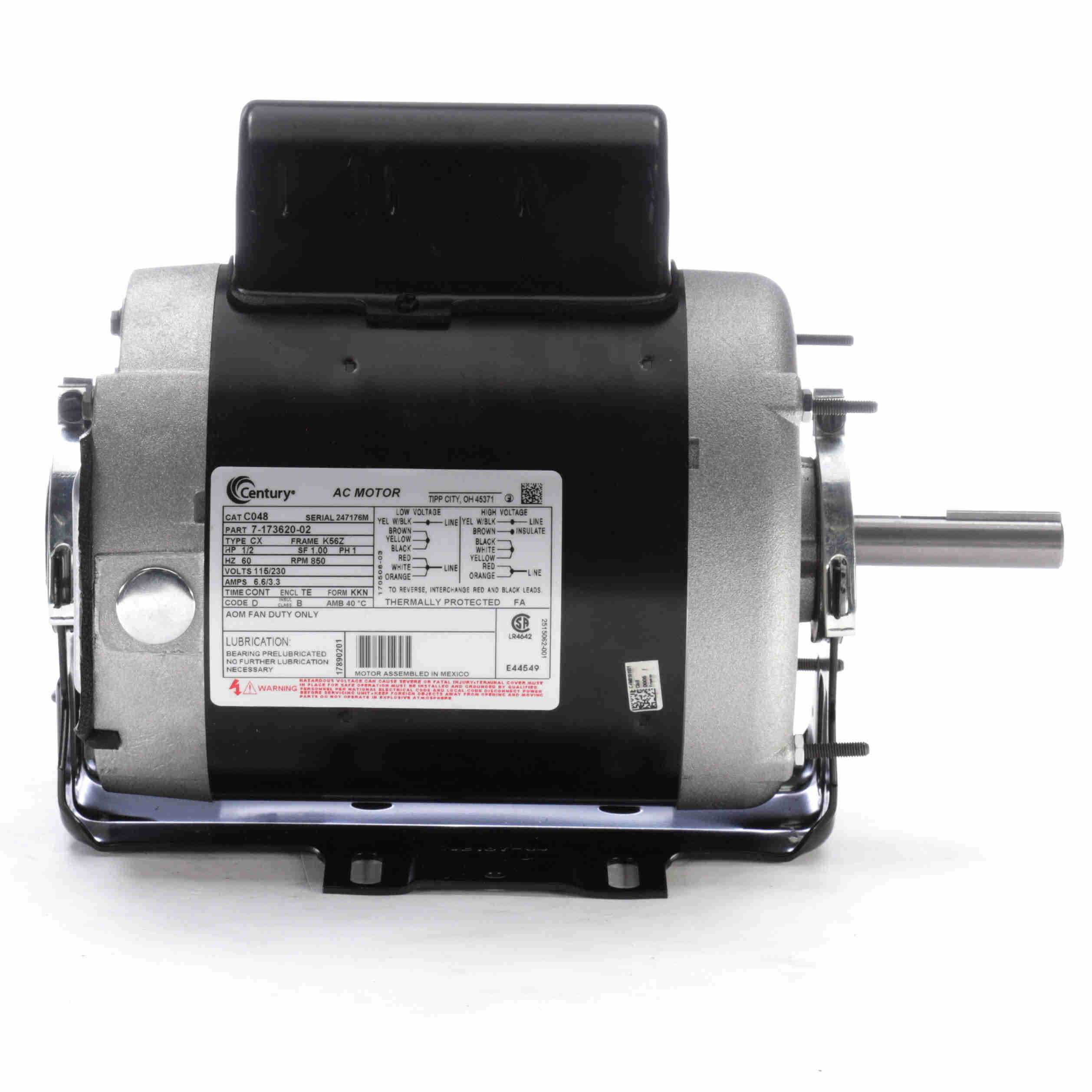

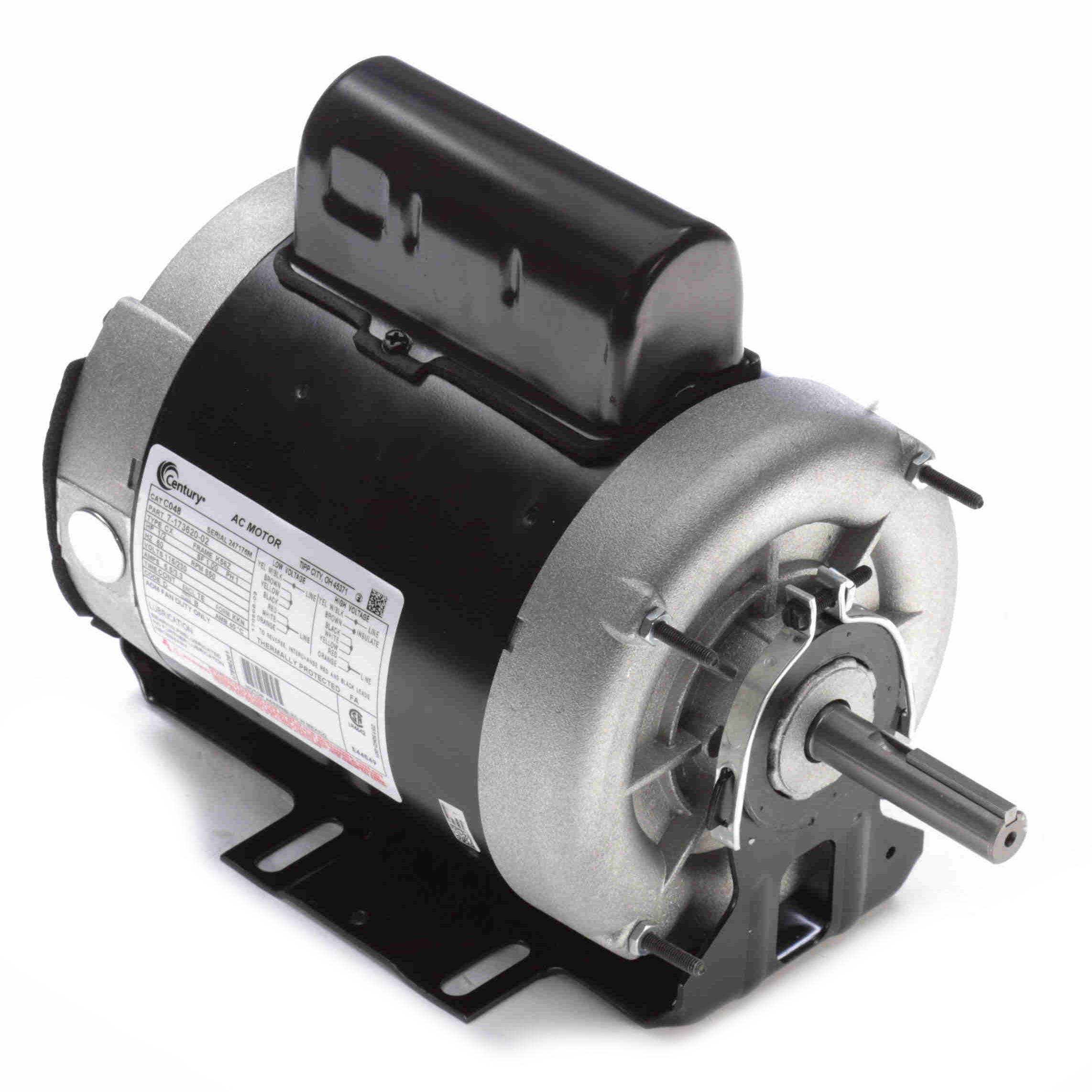

C048 Century 1/2HP Direct Drive Fan Electric Motor, 850RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C048

Selected accessories will also be added to cart
$473.97 / Each
Quantity:
TEAO, 56Z Frame, 115/230VAC 60Hz Single Phase, Cushion Base, Rolled Steel, 5/8" Shaft

Features

Features
  • Double sealed ball bearings
  • Fully gasketed
  • Auto protector

General Specifications

General Specifications
Model : Catalog No :C048
Part Description :1/2,850,TEAO,56Z,1/60/115/230 Category :Direct Drive Fan
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/2 HP Output KW :0.37 kW
Frequency :60 Hz Voltage :115/230 V
Current :6.6/3.3 A Speed :850 RPM
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :K56Z Enclosure :Totally Enclosed Air Over
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor, Single Or Dual Voltage Starting Method :Across The Line
Poles :8 Rotation :Reversible Counterclockwise
Mounting :Cushion Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :12.06 in
Frame Length :5.50 in Shaft Diameter :0.625 in
Shaft Extension :2.56 in UPC :786674015129
Weight :33.00 LB

Speed & Load Characteristics
