/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/Fan & Blower/C1160 Marathon 1.5HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: C1160

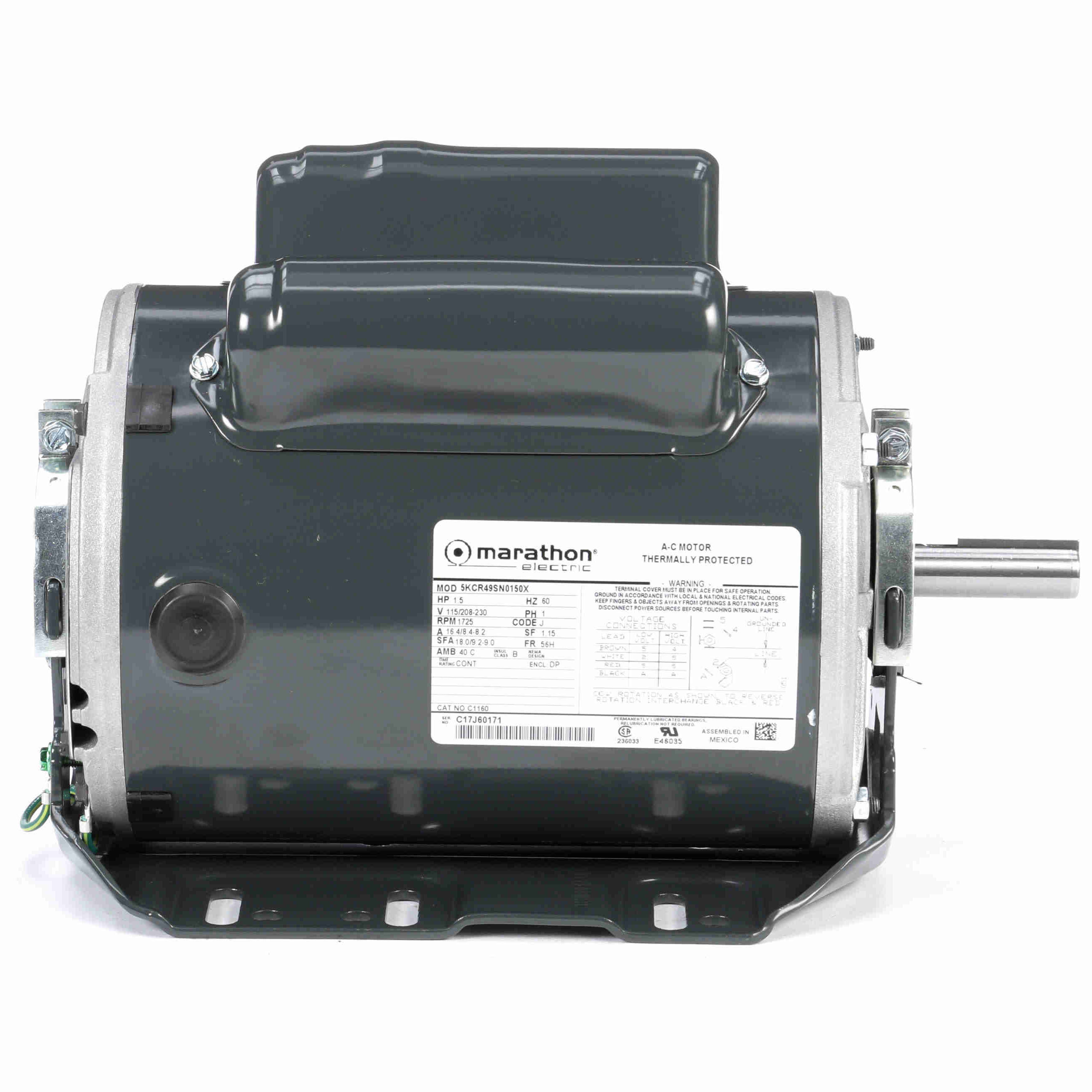

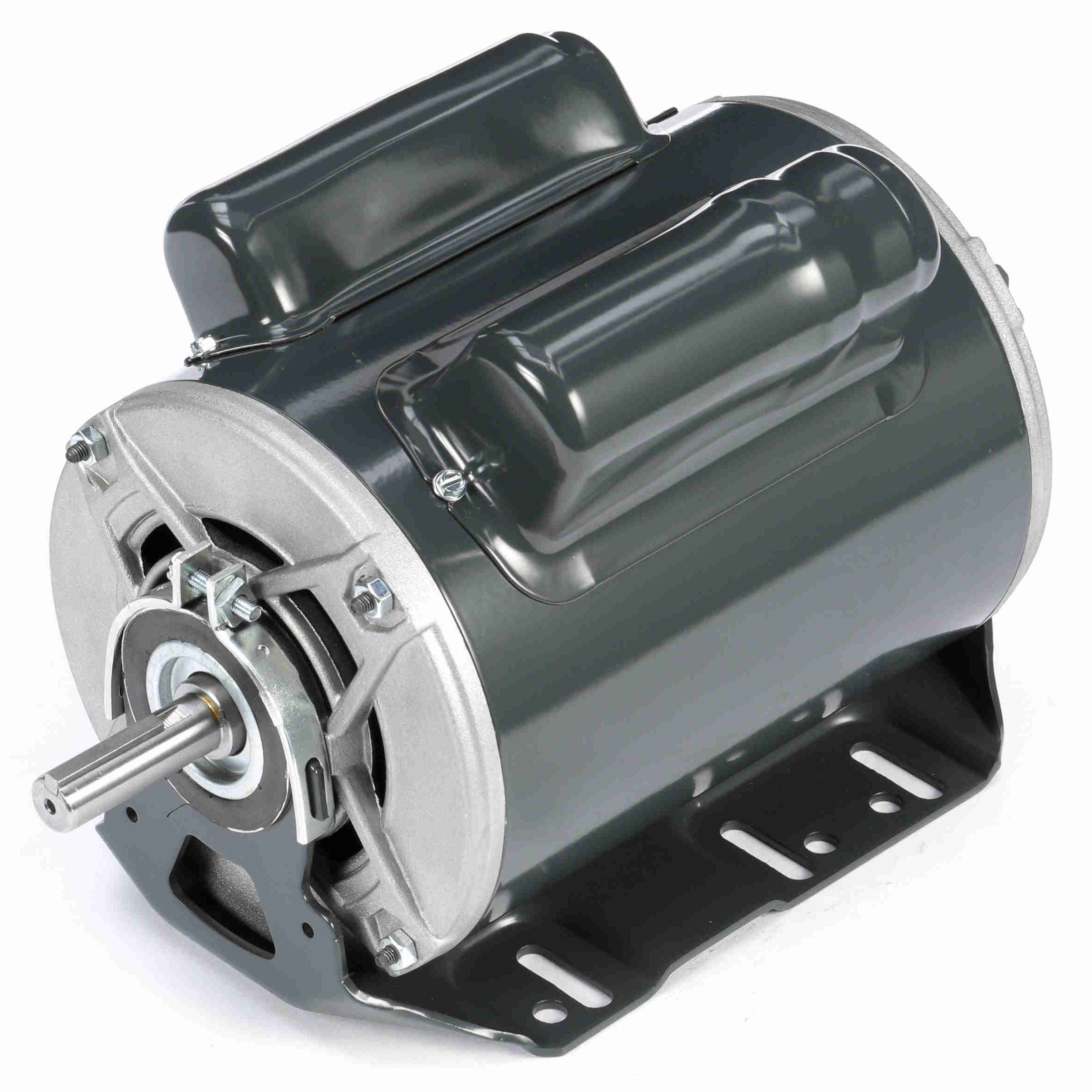

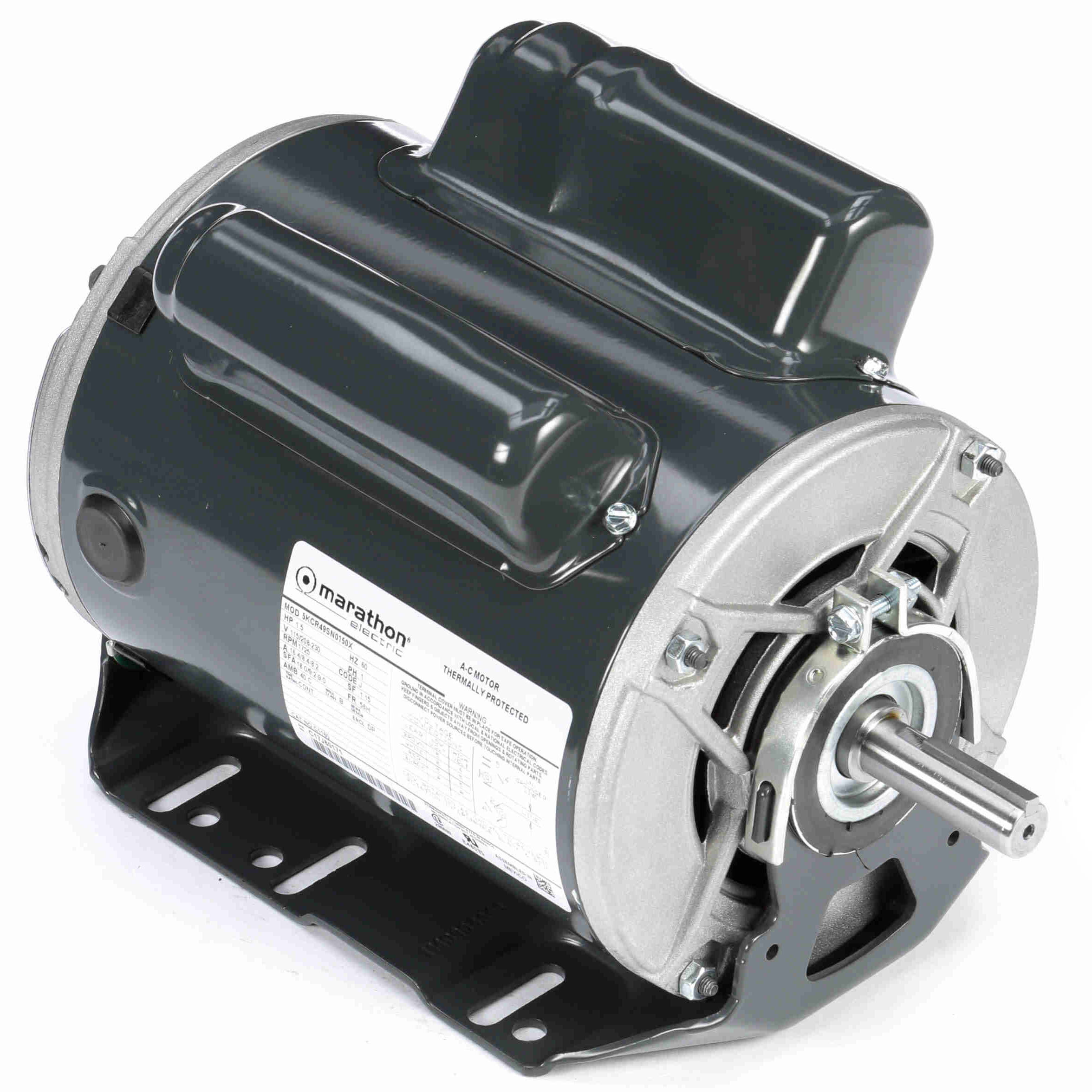

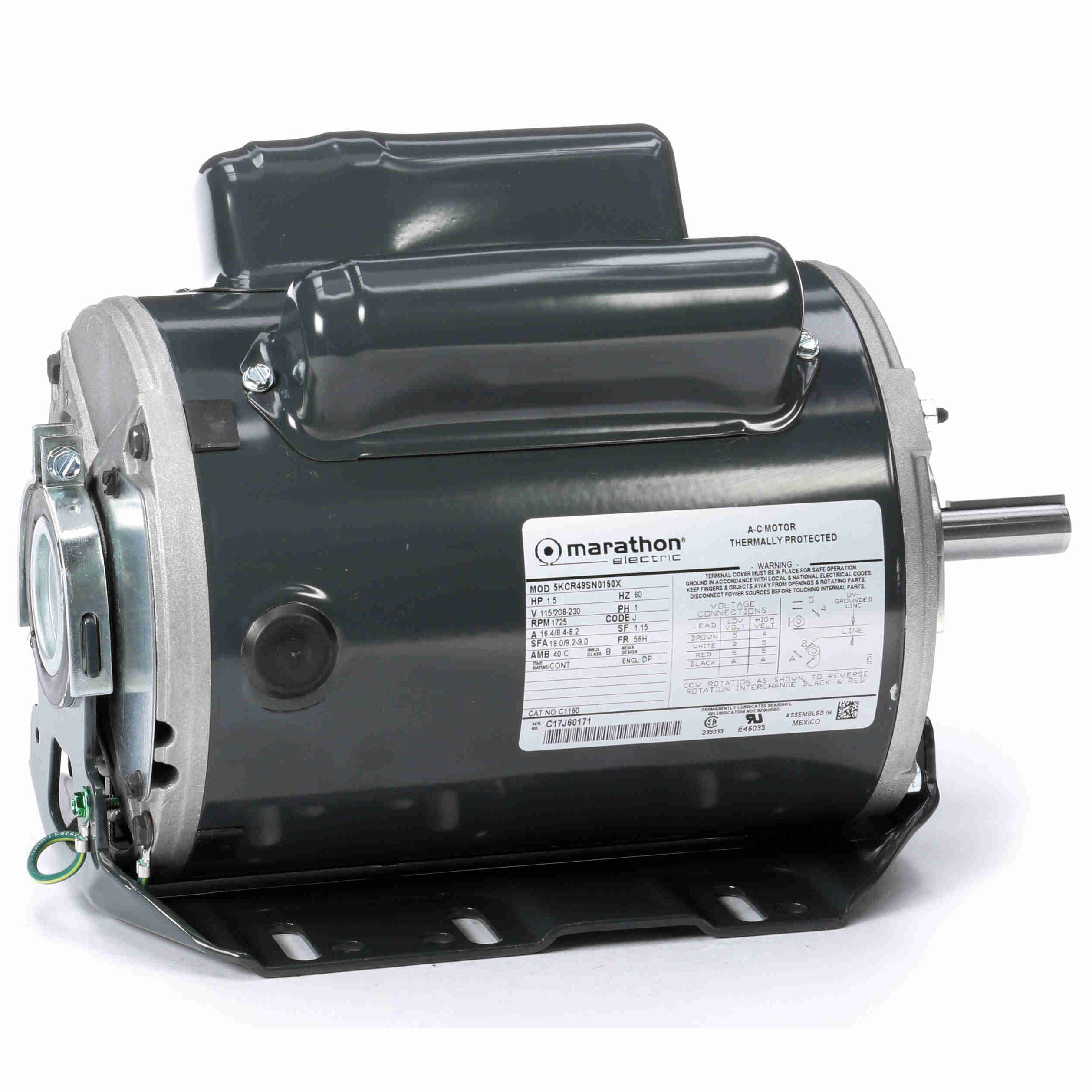

C1160 Marathon 1.5HP Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: C1160

Selected accessories will also be added to cart
$729.97 / Each
Quantity:
ODP, 56 Frame, 1-Phase, 115/208-230VAC, 60Hz
Features
  • Heavy gauge steel frame and base
  • Capacitor start / capacitor run as noted
  • Thermal protection, as noted
  • 48Y and 48YZ Frame have 48/56 Frame mounting holes
General Specifications
Model :5KCR49SN0150XCatalog No :C1160
Part Description :1 1/2,1725,DP,56H,1/60/115/208-230Category :Open Drip Proof (ODP)
Stock :Yes
Nameplate Specifications
Output HP :1.50 HpOutput KW :1.1 kW
Frequency :60 HzVoltage :115/208-230 V
Current :16.4,8.4-8.2 ASpeed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :77 %Duty :Continous
Insulation Class :B KVA Code :J
Frame :56H Enclosure :Drip Proof
Overload Protector :AUTO Ambient Temperature :40 ?C
Drive End Bearing Size :6205 Opp Drive End Bearing Size :6203
UL :Recognized CSA :Yes
CE :N
Technical Specifications
Electrical Type :Capacitor Start Capacitor Run(CSCR) Starting Method :SM
Poles :4 Rotation :Selective Counterclockwise
Mounting :Resilient Base Motor Orientation :Any
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Overall Length :11.9 in
Frame Length :7.68 inShaft Diameter :0.630 in
Shaft Extension :1.88 inUPC :722856048462
Weight :35.00 LB
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Frame
56
Horsepower
1.5HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
