/Products/Electric Motors/Single Phase/Century/Pressure Washer/C776ES Century 1.5HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: C776ES

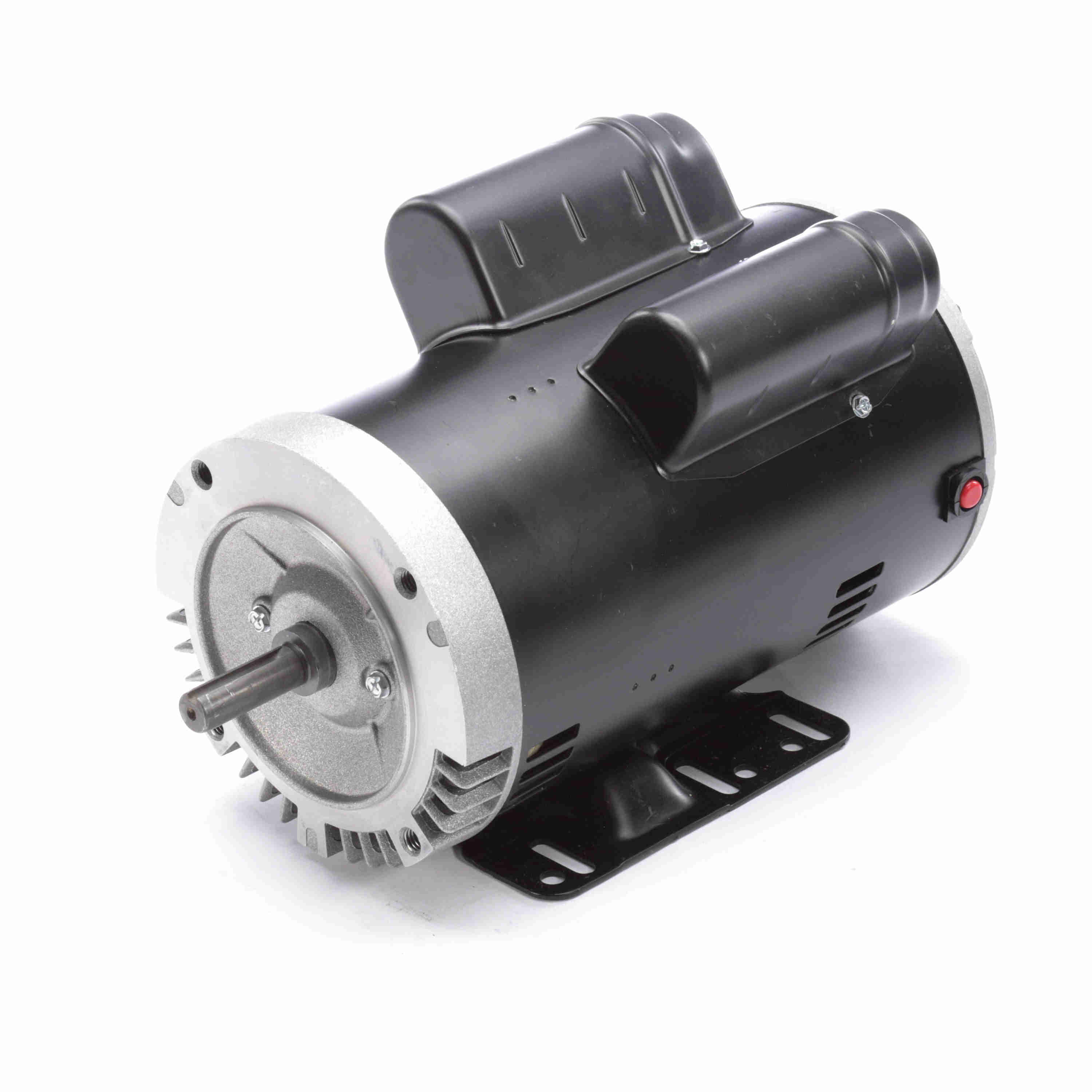

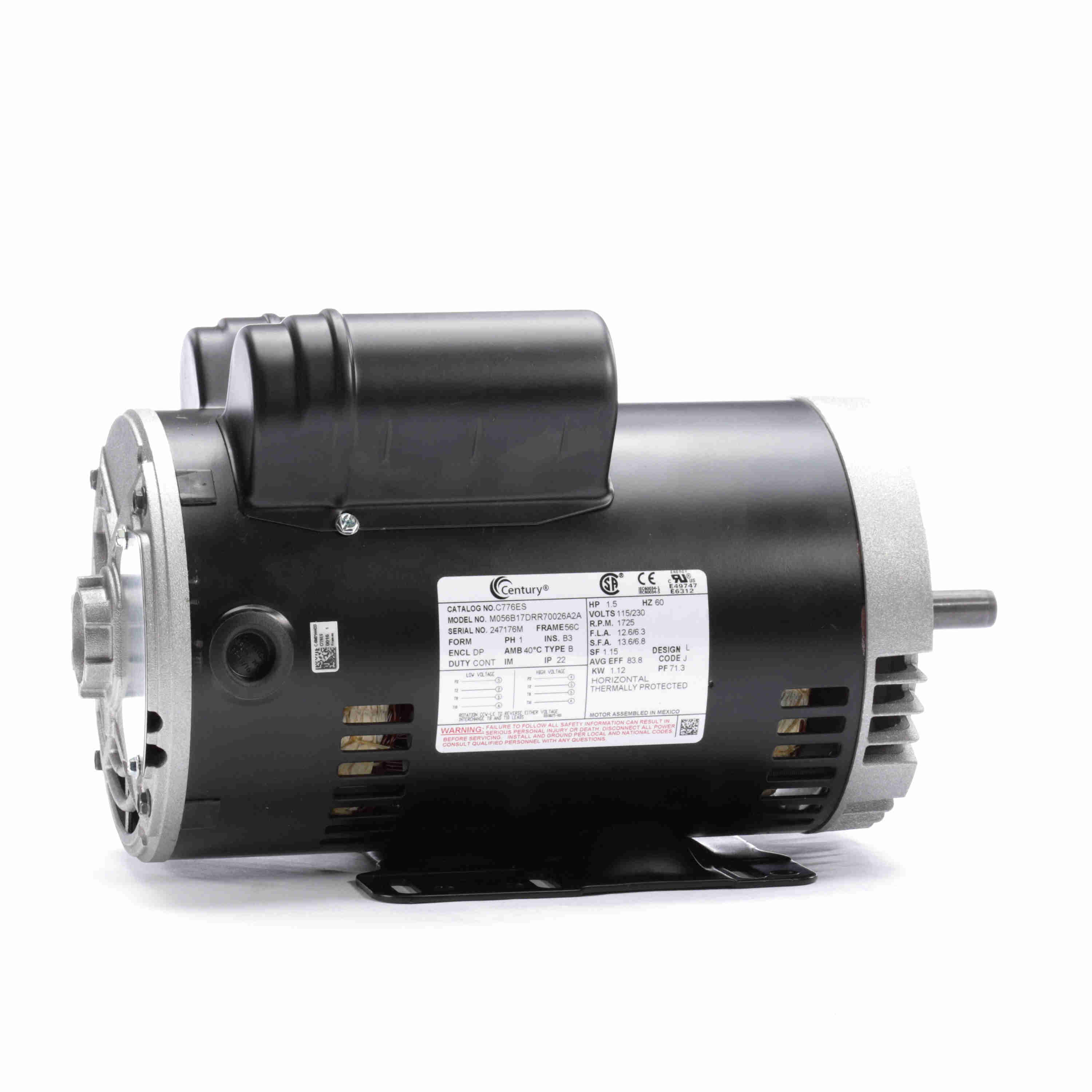

C776ES Century 1.5HP General Purpose Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C776ES

Selected accessories will also be added to cart
$208.97 / Each
Quantity:
ODP, 56HC Frame, 115/230VAC Single Phase 60Hz, Rigid Base, C-Face, Rolled Steel, 5/8" Shaft

Features

  • Heavy gauge steel frame and base

General Specifications

UPC: 786674073761 Weight: 46.00 LB
Packaged Length: 15.5 IN Packaged Width: 10.5 IN
Packaged Height: 10 IN

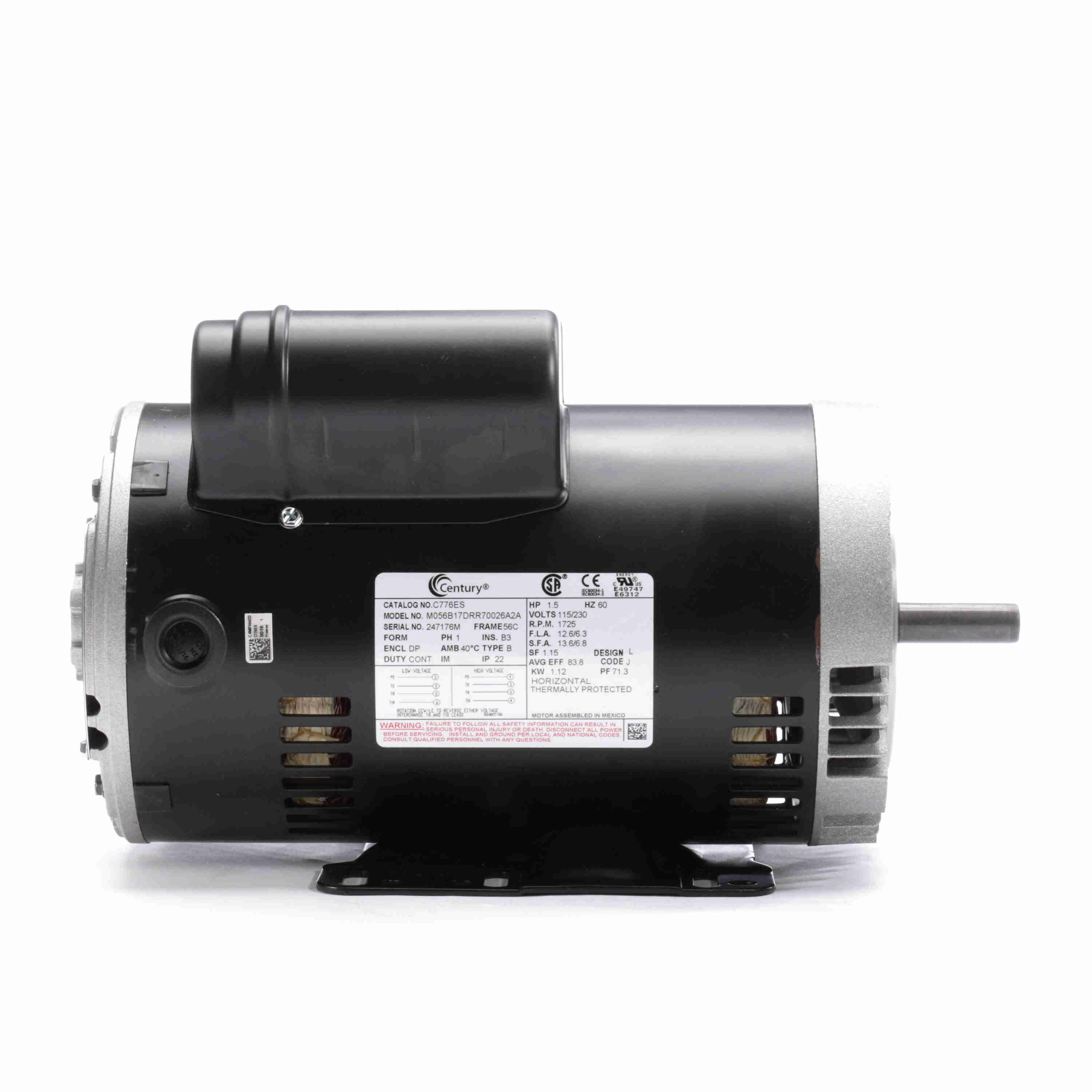

Nameplate Specifications

Output HP: 1.5 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 12.6/6.3 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56HC Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: Y

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 13.81 in
Frame Length: 9.74 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in

Speed & Load Characteristics
