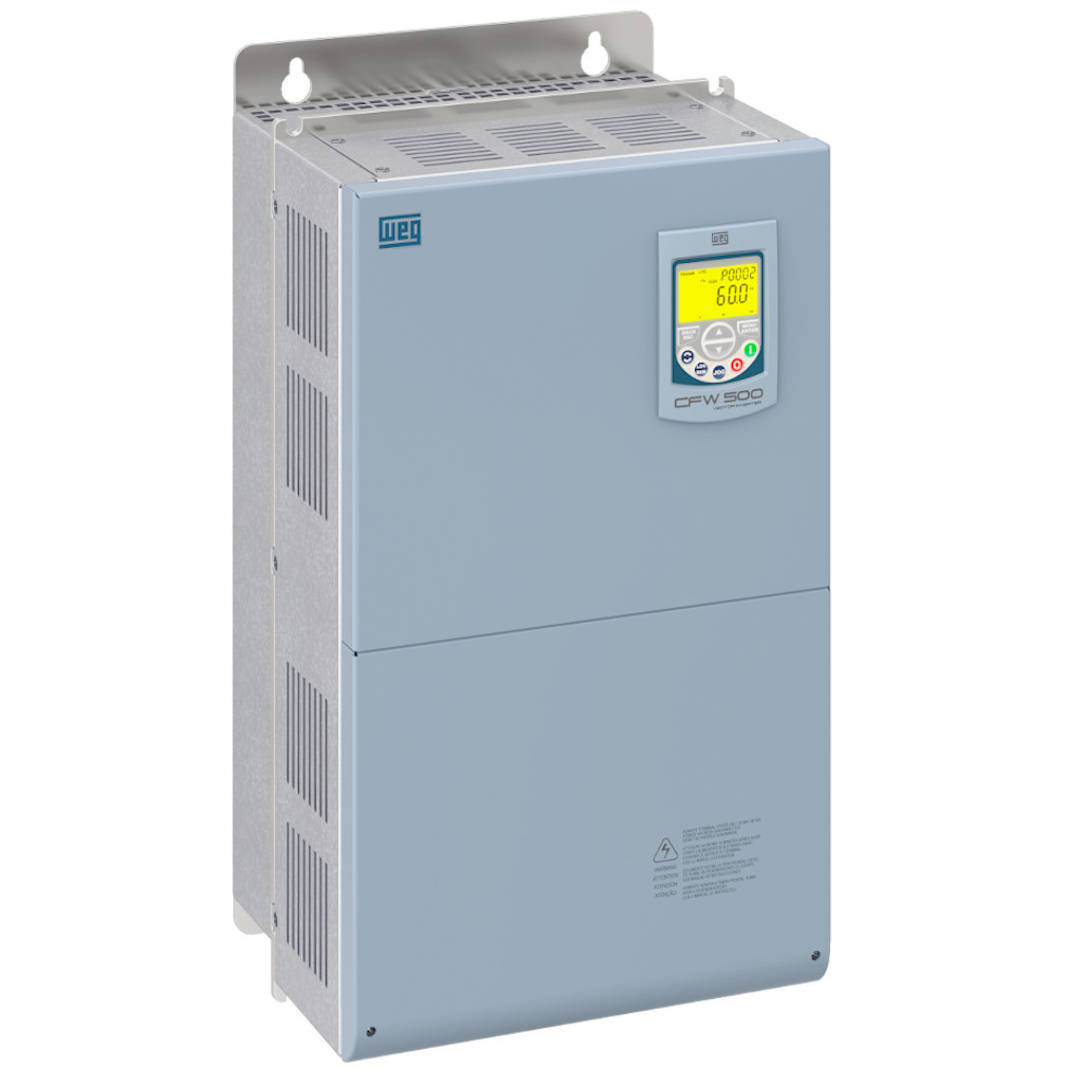

| Power Supply |
Tolerance: -15 to +10%
Frequency: 50/60Hz (48 to 62 Hz)
Phase Imbalance: =3% of the rated phase-phase input voltage
Transient Voltages and Overvoltages according to Category III (EN 61010/UL 508C)
Maximum of 10 (line) connections per hour (1 every 6 minutes)
Typical efficiency: =97% |
| Control Method |
V/F (scalar)
VVW: voltage vector control
Vector without encoder (sensorless) and closed loop vector with encoder
PM VVW: voltage vector control for permanent magnet motors |
| Output Frequency |
0 to 500 Hz
0.015 Hz Resolution |
| Analog Inputs |
1 isolated input. Levels: (0 to 10) V or (0 to 20) mA or (4 to 20) mA
Linearity error =0.25%
Impedance: 100 kO for voltage input, 500 O for current input
Programmable functions, including PTC input
Maximum voltage accepted in the inputs: 30 VDC |
| Digital Inputs |
4 isolated inputs
Programmable functions:
Active high (PNP): maximum low level of 15 VDC; minimum high level of 20 VDC
Active low (NPN): maximum low level of 5 VDC; minimum high level of 9 VDC
Maximum input voltage of 30 VDC
Input current: 4.5 mA
Maximum input current: 5.5 mA |
| Analog Outputs |
1 isolated output. Levels (0 to 10) V or (0 to 20) mA or (4 to 20) mA
Linearity error =0.25%
Programmable functions
RL =10 kO (0 to 10 V) or RL =500 O (0 to 20 mA / 4 to 20 mA) |
| Relay Outputs |
1 relay with NO/NC contact
Maximum voltage: 240 VAC
Maximum current of 0.5 A
Programmable functions
|
| Transistor Outputs |
1 isolated open sink digital output (using as reference the 24 V dc power supply)
Maximum current of 150 mA (maximum capacity of the 24 V dc power supply)
Programmable functions |
| Power Supply |
24 VDC power supply
Maximum capacity: 150 mA
Power supply of 10 VDC
Maximum capacity: 2 mA
|
| Communication Options |
Fieldbus: Modbus-RTU, CANopen, DeviceNet, Profibus-DP, EtherNet/IP, Modbus-TCP, PROFINET IO, USB, RS485 and RS232 ports |
| Safety Protection |
Phase-Phase / Phase-Ground overcurrent / Short Circuit
Undervoltage/Overvoltage
Heatsink Overtemperature
Motor Overload
Power Module (IGBTs) Overload
External fault / alarm
Programming error
|
| Operating Interface |
9 keys: Run/Stop, Increment, Decrement, Direction of rotation, Jog, Local/Remote, Back/Esc and Enter/Menu
LCD Display |
| Protection Degree |
IP20 – Sizes A, B, C, D, E, F and G
NEMA1 – Sizes A, B, C, D, E, F and G with NEMA1 Kit |
| Altitude |
Up to 1,000 m (maximum altitude under normal conditions)
1,000 to 4,000 m: current derating of 1% for each 100 m above 1,000 m of altitude |
| Humidity |
5% to 95%, Non-condensing |
| Operating Temperature |
-10 °C to 50 °C - IP20 (sizes A to E)
-10 °C to 40 °C - NEMA 1 (sizes A to E)
-10 °C to 40 °C - IP20, NEMA 1 (size F)
-10 °C to 45 °C - IP20, NEMA 1 (size G)
|
