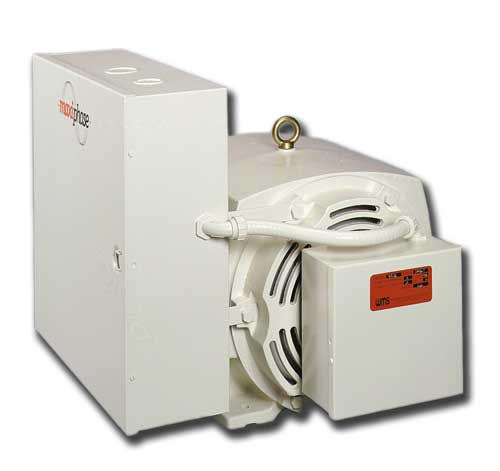

| Model | CNC 25 |
|---|
| Largest Single Load | 25 HP |
|---|
| Maximum Combined Load | 25 HP |
|---|
| Voltage | 230 Volts |
|---|
| Frequency | 60Hz |
|---|
| No Load Amperage | 35.0 Amps |
|---|
| "a" Dimension | 25 Inches |
|---|
| "b" Dimension | 21 Inches |
|---|
| "c" Dimension | 30 Inches |
|---|
| "d" Dimension | 36 Inches |
|---|
| "e" Dimension | 30 Inches |
|---|
| "f" Dimension | 12 Inches |
|---|
| Motor Enclosure | ODP
Open Drip Proof |
|---|
| Motor Frame Size | 365TS |
|---|
| Input Circuit Breaker Rating | 150 Amp |
|---|
| Input Wire Size | #1 Minimum |
|---|
| Approximate Weight | 1100 lbs |
|---|
| Notes | Rotary unit and capacitor enclosure are seperate on this unit and must be field connected with user supplied wire and conduit. |
|---|
Product Information Links:
WMS Rotary Phase Converters are an economical alternative to commercial three phase power!
- Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
- WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
- WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
- Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
- 1 Year Warranty
