$100.70 / Each

Quantity:

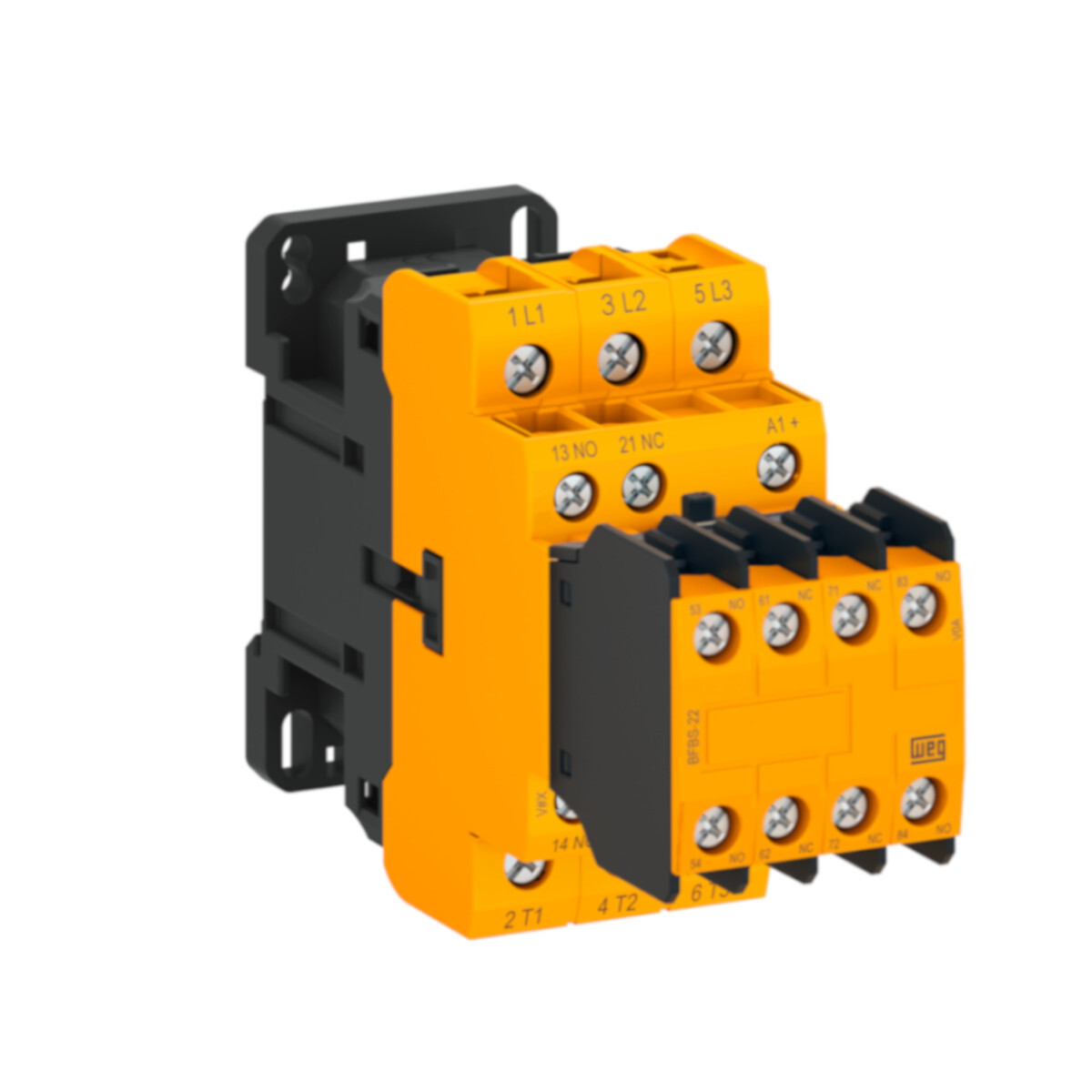

15447933, 120VAC 50/60Hz Coil, 3NO / 3NC Auxiliary Contacts

Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1	690 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA	600 V
Rated operational frequency - minimum	25 Hz
Rated operational frequency - maximum	400 Hz
Mechanical lifespan (AC)	10 million
Mechanical lifespan (DC)	10 million
Electrical lifespan	2 million
Degree of protection IP (IEC 60529) - Main circuit	IP10
Degree of protection IP (IEC 60529) - Control circuit	IP20

Rated current	9 A
Rated current In - AC-4	4,4 A
Rated operational Current Ie AC-1 (? = 55 ?C)	25 A
Rated operational voltage Ue - IEC 60947-4-1	690 V
Rated operational voltage Ue - UL/CSA	600 V
Height	78,4 mm (3.09 in)>
Width	45 mm (1.77 in)
Depth	125.8 mm (4.95 in)
Gross weight	0.433 kg

12949297, fits CWB9...38
Available Stock: 4

BRB-38D15

$11.97 / Each

Number of Poles

Current

9 Amp
