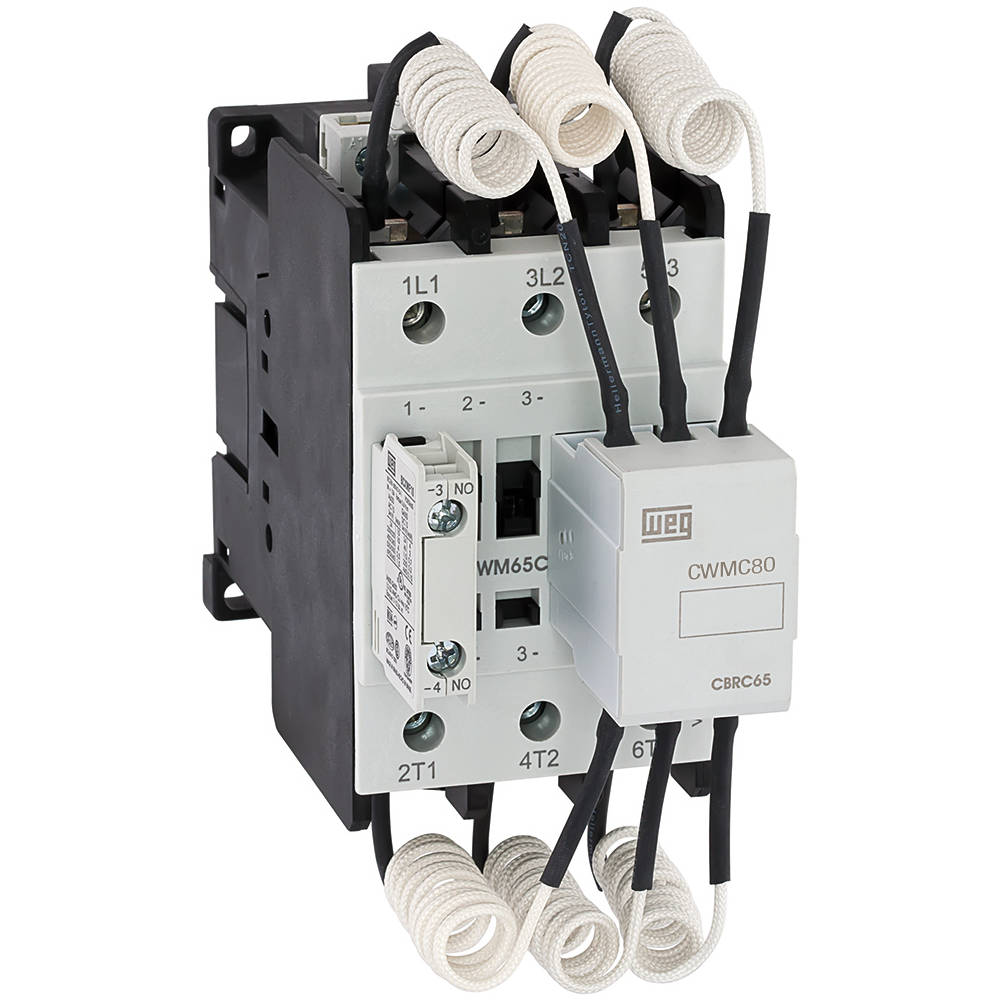

CWMC65-10-30X47 WEG Capacitor Switching Contactor, 3 NO Power Poles, 65 Amps
Enlarge Photo

Product ID: CWMC65-10-30X47

CWMC65-10-30X47 WEG Capacitor Switching Contactor, 3 NO Power Poles, 65 Amps

MFG: WEG Electric Corporation
MFG Part Number: CWMC65-10-30X47

Selected accessories will also be added to cart
$134.16 / Each
Quantity:
11486271, 400-415VAC 50Hz / 480VAC 60Hz Coil, 1 NO Auxiliary Contact
Accessories
Select any of the accessories below to purchase them with this inventory item:
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 10 million
Electrical lifespan Not available
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 65 A / (AC-6b - T = 55°C) 77 A
Rated current In - AC-4 Not available
Rated operational Current Ie AC-1 (¿ = 55 ºC) Not available
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 183 mm (7.20 in)
Width 66 mm (2.60 in)
Depth 158 mm (6.22 in)
Gross weight 1.32 kg
