/Products/VFD's & Soft Starters/Fuji/Fuji Braking Options/DB3.7-2C Fuji Electric Braking Resistor, 33 Ohms, 10% Duty Cycle
Click Image to Expand

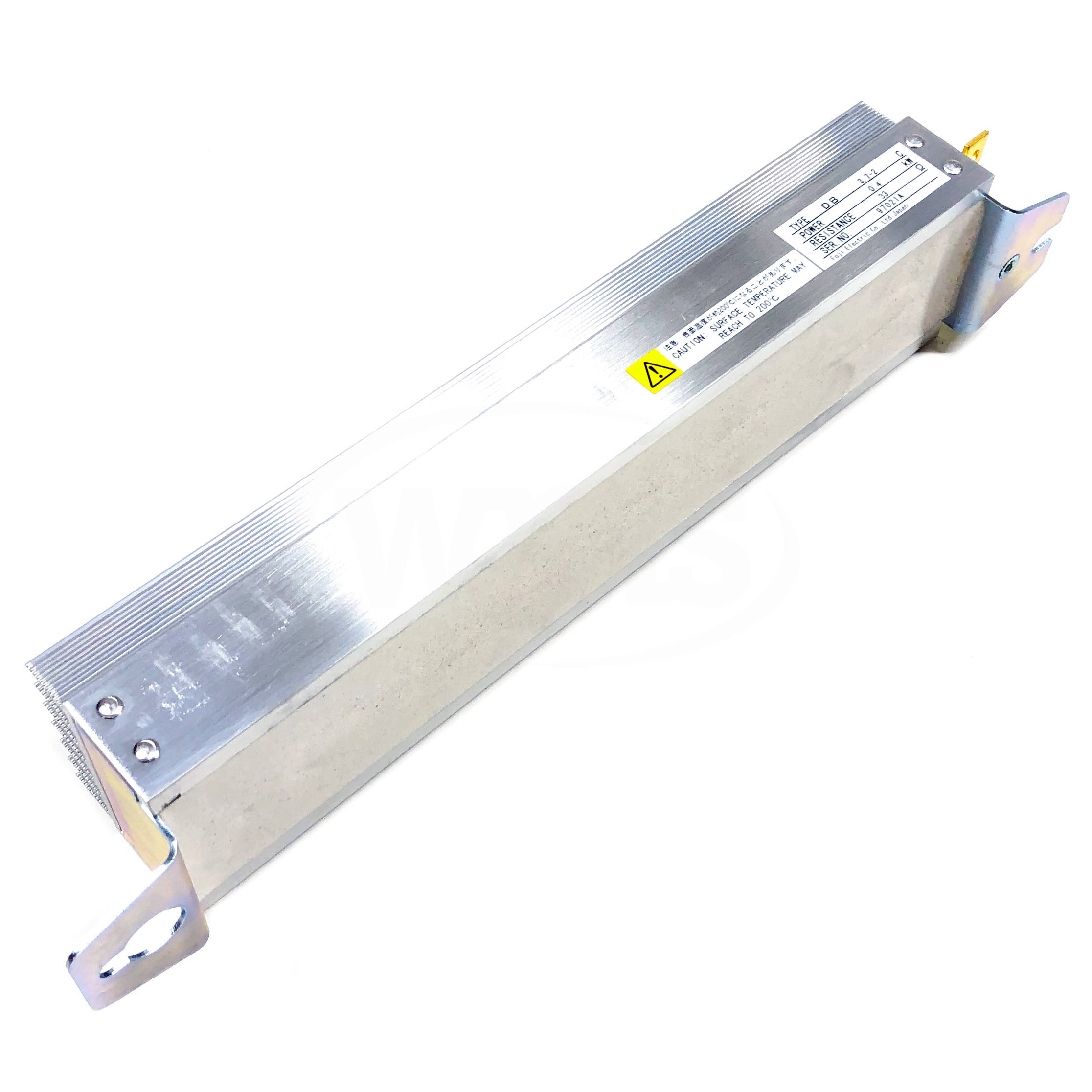

DB3.7-2C Fuji Electric Braking Resistor, 33 Ohms, 10% Duty Cycle

Product ID: DB3.7-2C

MFG: Fuji Electric Corp. of America
MFG Part Number: DB3.7-2C

Available Stock: 1
Selected accessories will also be added to cart
$121.80 / Each
Quantity:
Type: DB3.7-2C
Part Number: RGWG363
Power Capacity: 0.4kW
Resistance: 33 Ohms
Storage Temperature: -20 to +70?C
Relative Humidity: 5 to 95%
Ambient Temperature: -10 to +50?C
Altitude: Up to 1000m
Location: Indoors
Wire Size: 2mm?, 75?C
Earth Terminal: M4
Terminal Form: Connected Bar, 2mm Board Thickness, 4.3mm Installation Hole
Duty Cycle: 10%
Made in Japan

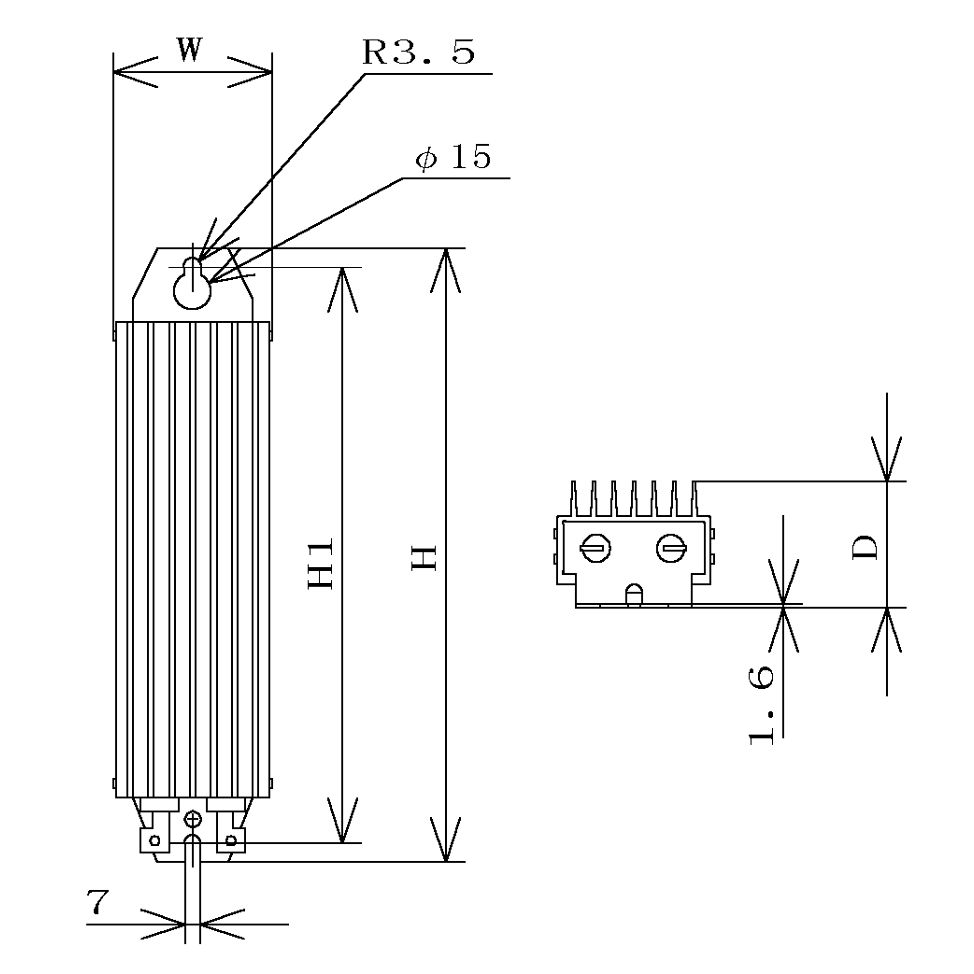

Dimensions:
W: 67mm (2.64")
H: 328mm (12.91")
H1: 312mm (12.28")
D: 55mm (2.17")

Links: Fuji Electric Braking Resistor Instruction Manual (PDF, 11 Pages, 274KB)
Type
Braking Resistor
