OVERVIEW

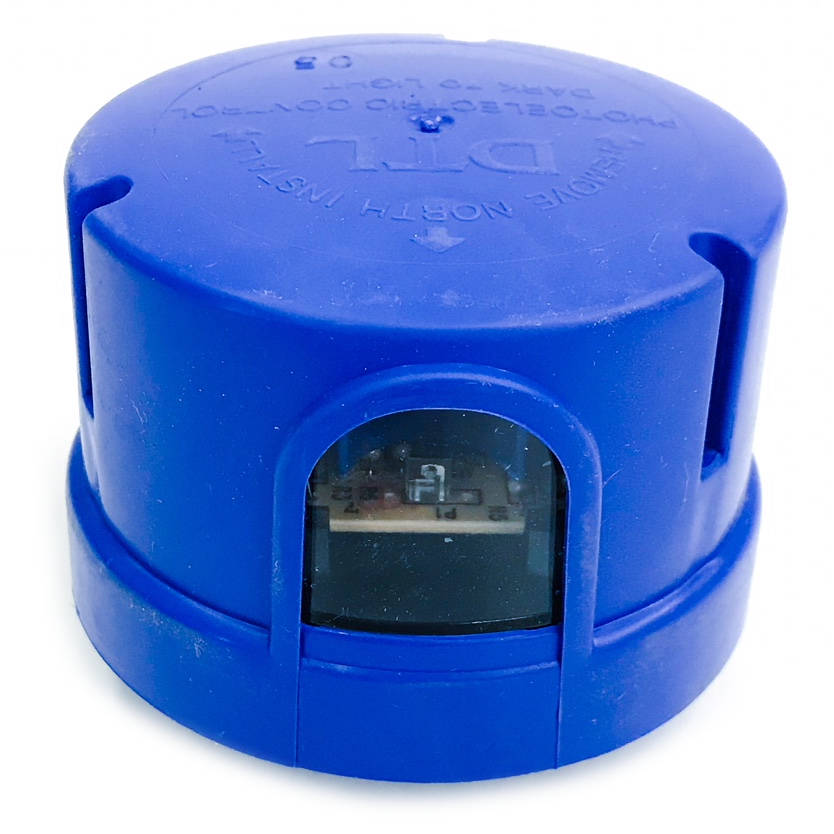

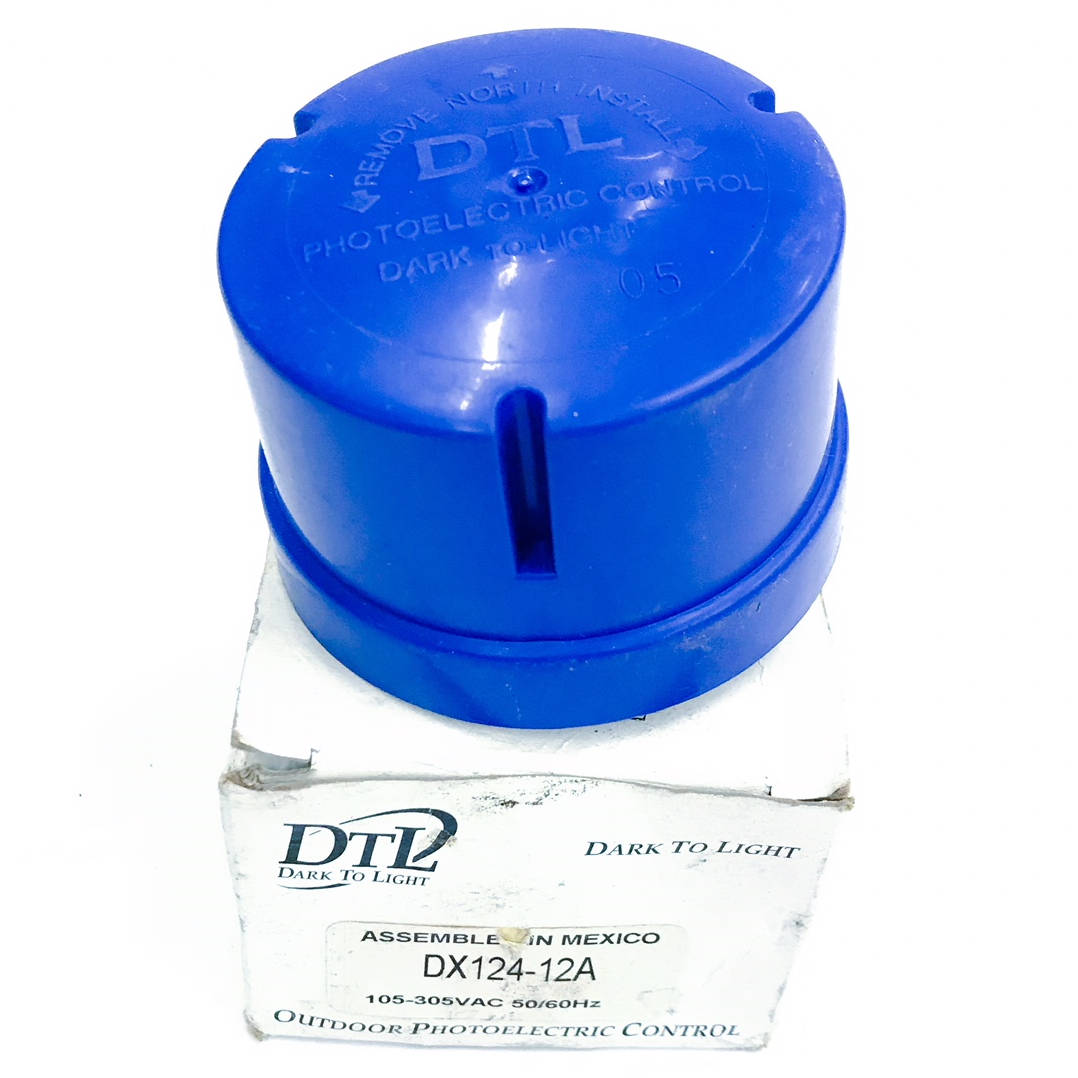

The DX Series photocontrols are designed for general lighting applications.

FEATURES
• Roadway & Area Lighting
• Security Lighting
• Municipal Lighting
• Silicon Light Sensor
• Custom Designed Sealed Relay
• MOV Rated for 160 Joule/6500 Amp
• Neoprene Base Gasket has a continuous use temperature of 105°C
• Built In 2–5 second turn-off delay
• Cover Color per ANSI
• Polypropylene Cover
• Brass Legs
• Not approved for use on LED fixtures

REGULATORY LISTINGS
• ANSI C136.10-1996 Compliant
• ROHS compliant

OPERATING CHARACTERISTICS
• Voltage 105 to 530 VAC, 50/60Hz
• Load rating: 1000 watts, 1800 VA ballast
• -40 to +70°C ambient

120/240/277V (105 - 305)
1.2-3.0 FC Turn-on
Silicon Sensor, Time Delay (2-5 seconds)
