/Products/Electric Motors/Single Phase Electric Motors/Leeson Single Phase Electric Motors/ecoSaver/Drip Proof, C-Face less Base/E100025.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 1800RPM
Click Image to Expand

Product ID: E100025.00

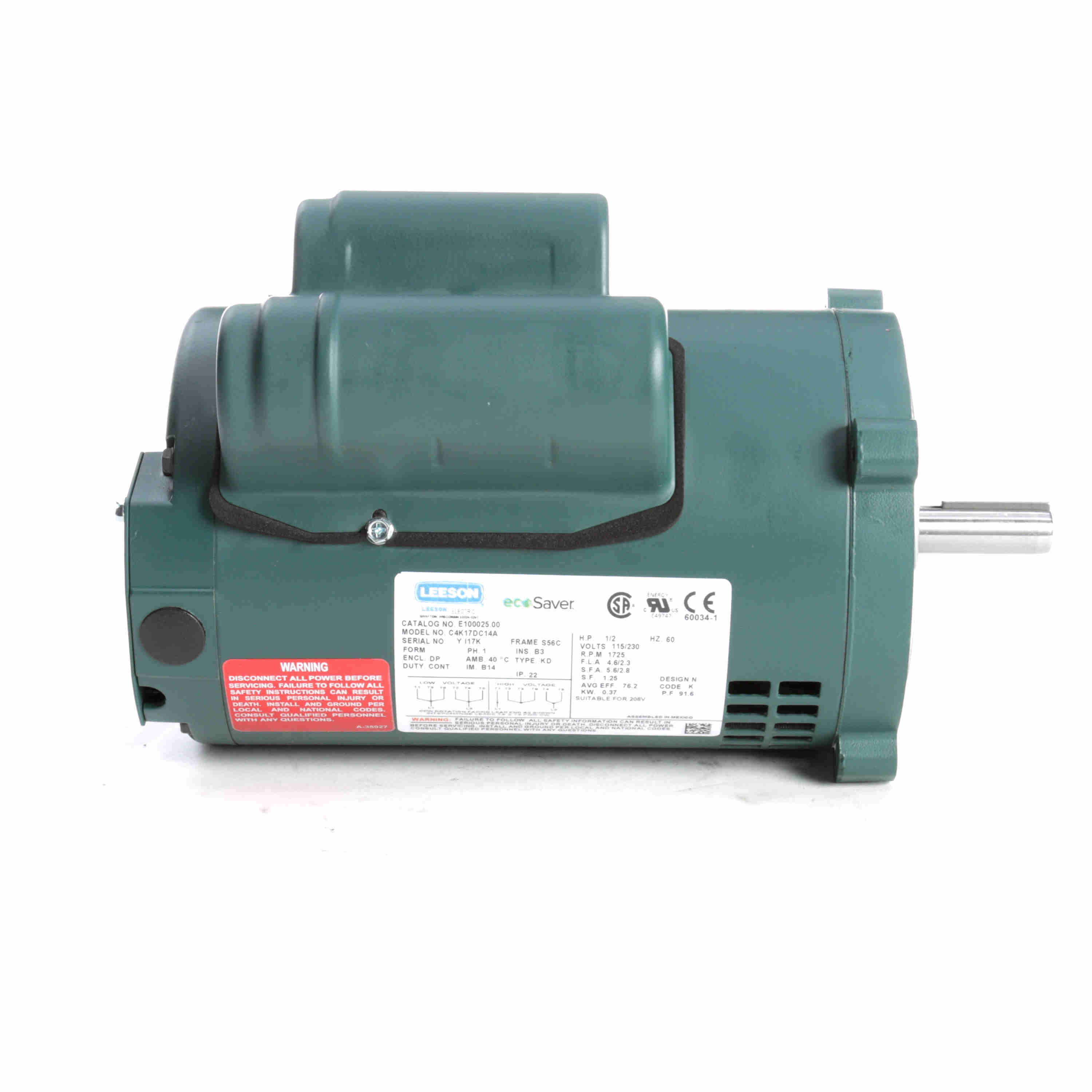

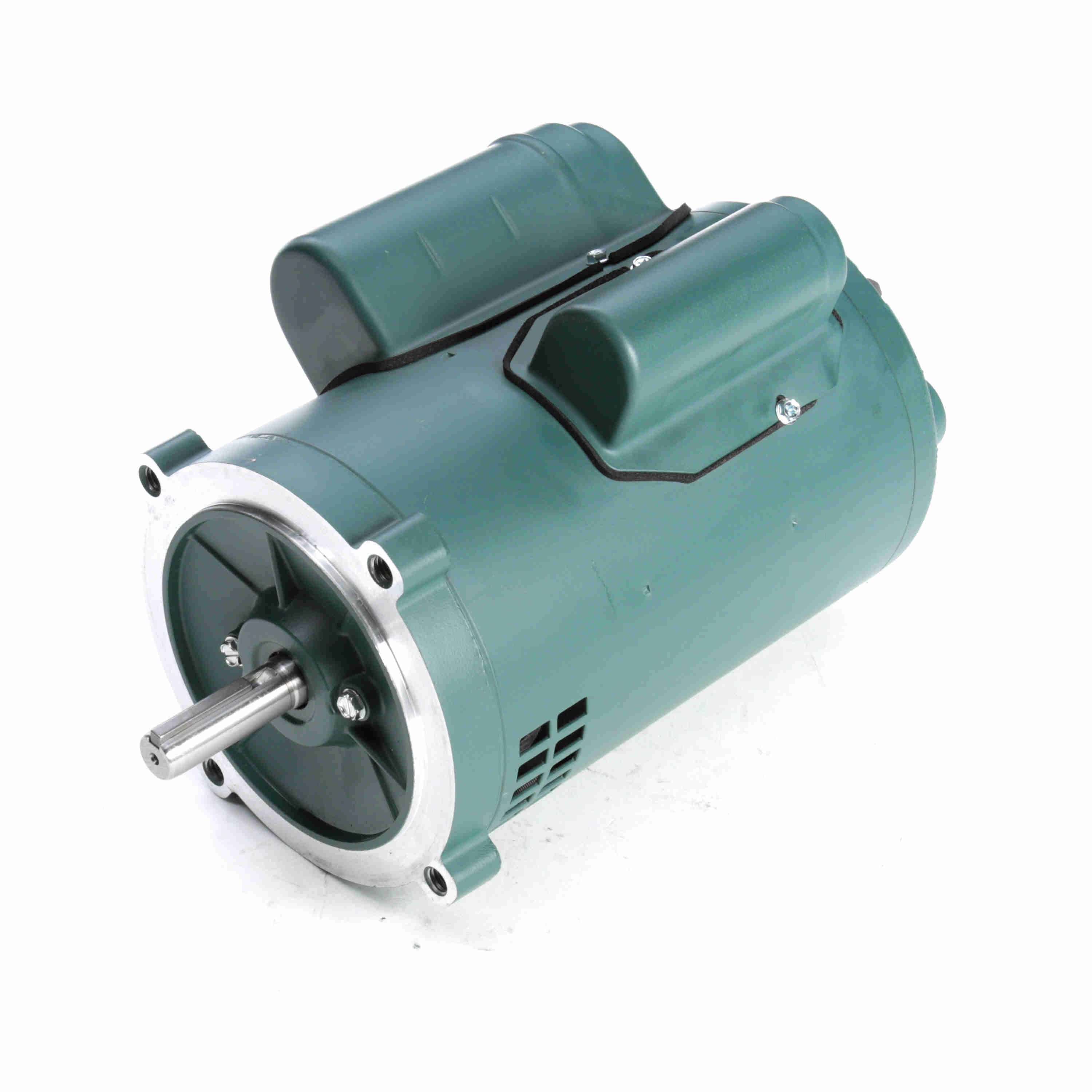

E100025.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: E100025.00

Selected accessories will also be added to cart
$519.97 / Each
Quantity:
ODP, 56C Frame, 115/230VAC Single Phase 60Hz, Rolled Steel, 5/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC:691720036259Weight:22.00 LB
Packaged Length:13.75 INPackaged Width:7.88 IN
Packaged Height:8.75 IN

Nameplate Specifications

Output HP:0.50 HpOutput KW:0.37 kW
Frequency:60 HzVoltage:115/230 V
Current:4.6/2.3 ASpeed:1725 rpm
Service Factor:1.25Phase:1
Efficiency:76.2 %Power Factor:91.6
Duty:ContinuousInsulation Class:B
Design Code:NKVA Code:K
Frame:S56CEnclosure:Drip Proof
Thermal Protection:NoAmbient Temperature:40 ?C
Drive End Bearing Size:6203Opp Drive End Bearing Size:6203
UL:RecognizedCSA:Y
CE:YIP Code:22

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:4Rotation:Selective Counterclockwise
Resistance Main:0 OhmsMounting:Round
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:NEMA 56Overall Length:11.49 in
Frame Length:7.50 inShaft Diameter:0.625 in
Shaft Extension:1.88 inAssembly/Box Mounting:F1 ONLY

Speed & Load Characteristics

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor17.70770.075.60310.000.000.00.50
Break-Down7.70335.060.40248.01,4951.5285.00.50
Full Load2.30100.024.40100.01,7450.4991.60.50
Pull-Up16.20704.075.40309.000.000.00.50

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %135 %150 %
Current (Amps)0.901.101.501.902.302.602.803.033.40
Rated Output (KW)0.110.200.290.390.490.560.600.650.72
Efficiency (%)0.049.366.073.776.277.877.977.877.4
Power Factor (%)51.876.886.189.891.691.992.392.592.5
Speed (RPM)1,7951,7851,7751,7601,7451,7351,7301,7201,710
Temp. Rise @ FL0.00.00.00.025.00.030.00.00.0
Torque (ft-lbs)0.006.1012.2018.3024.4028.1030.5033.0036.60
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1/2HP
Frame
56C
