/Products/Electric Motors/Single Phase/Leeson Single Phase Electric Motors/ecoSaver/Drip Proof, C-Face less Base/E100055.00 Leeson 0.75HP General Purpose ecoSaver Electric Motor, 3600RPM
Click Image to Expand

Product ID: E100055.00

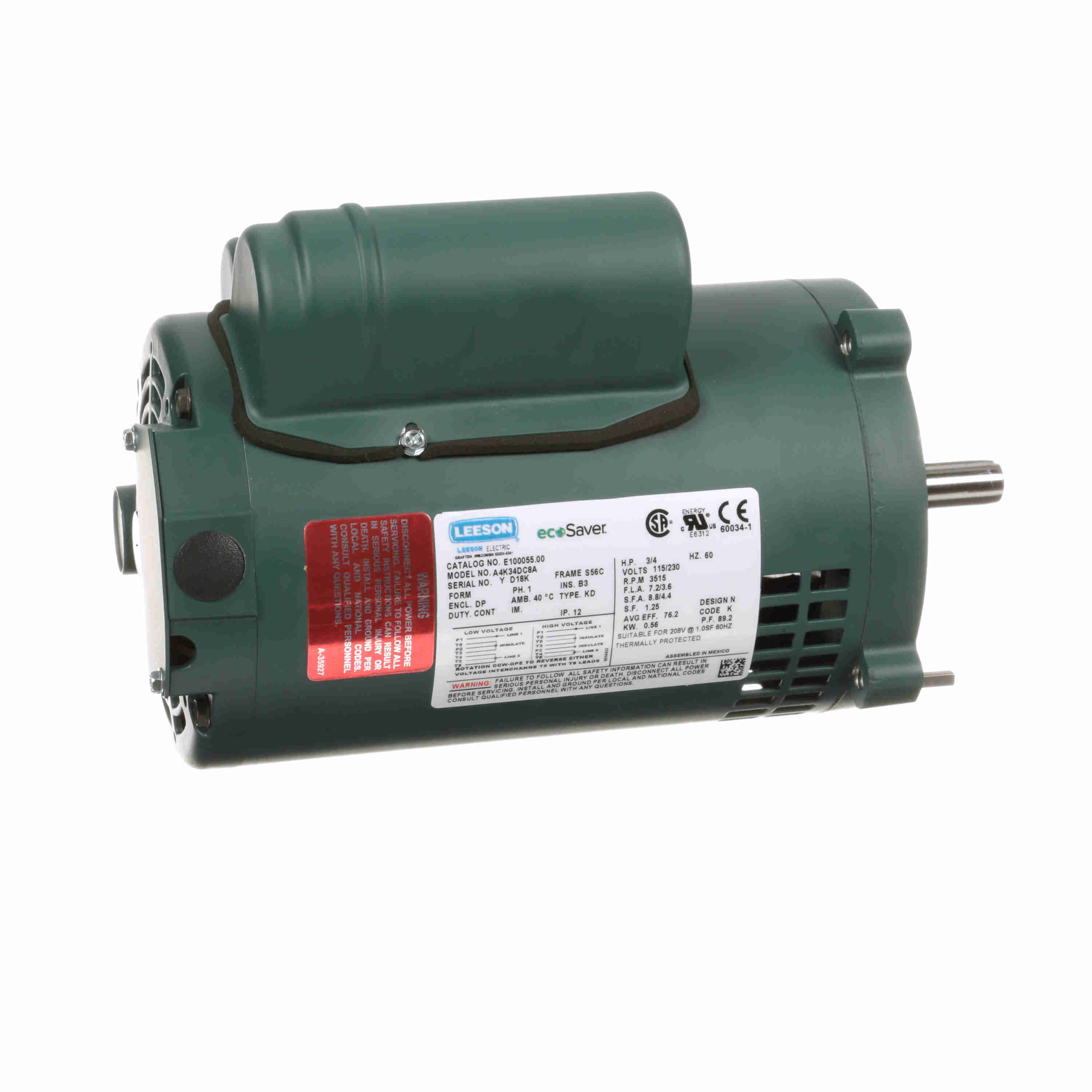

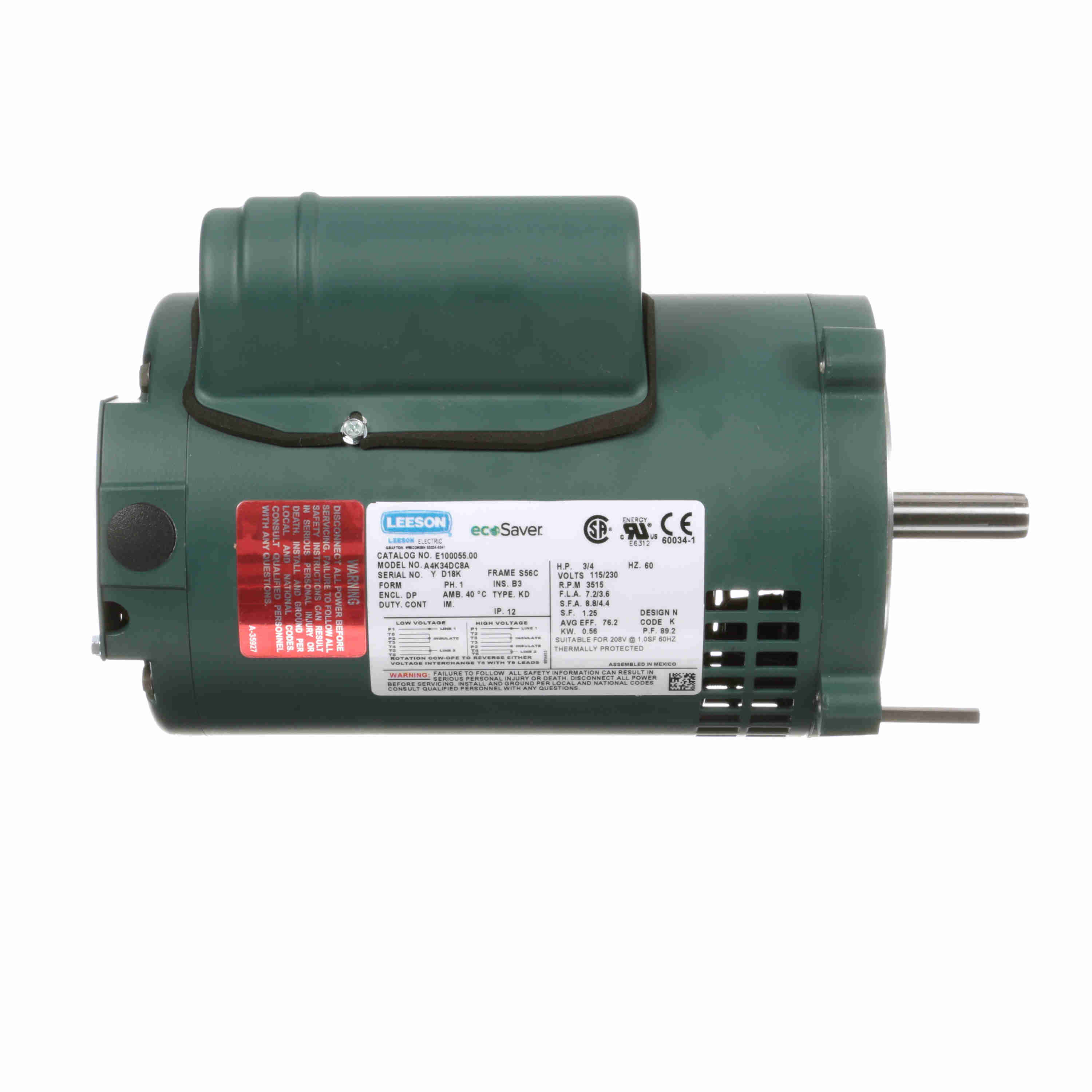

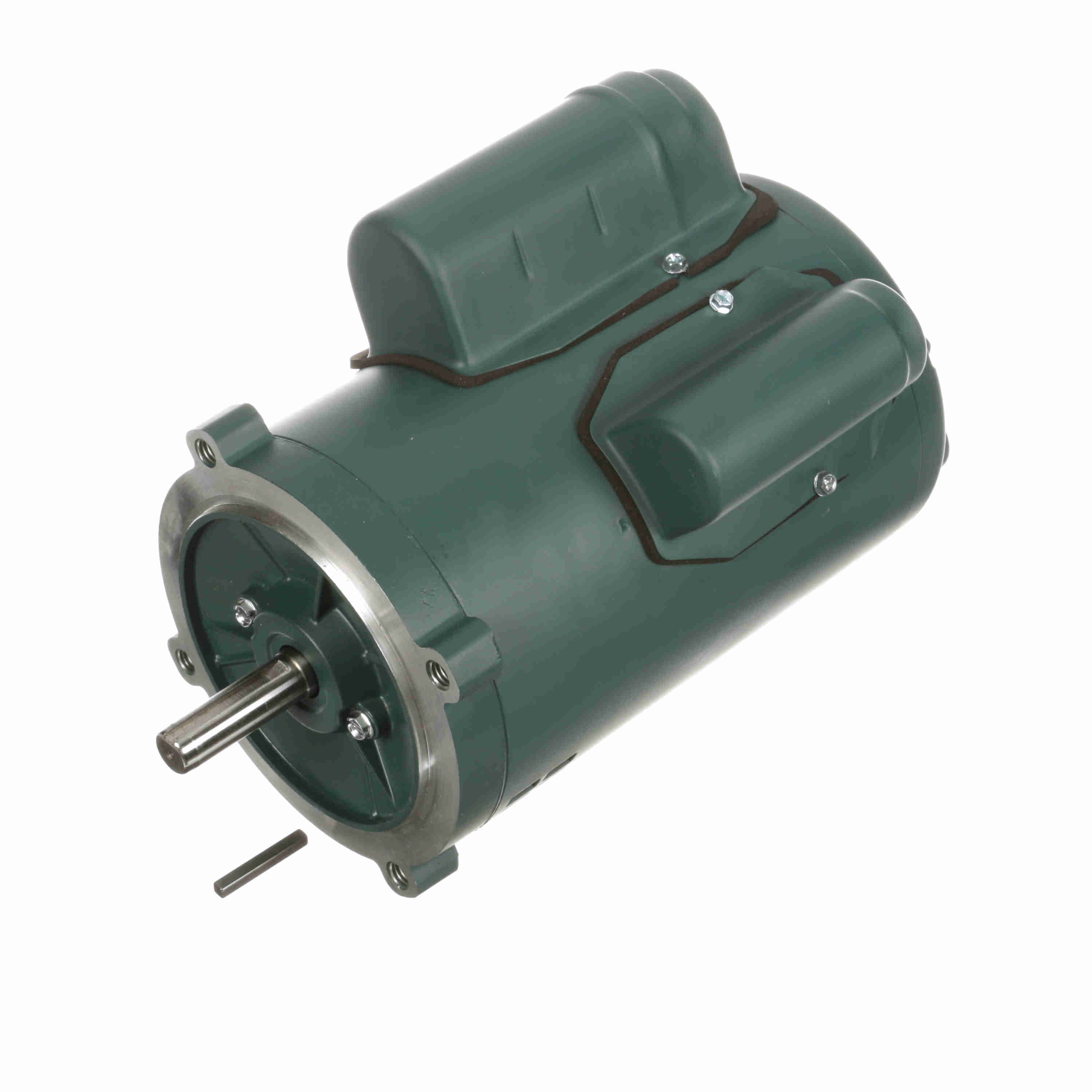

E100055.00 Leeson 0.75HP General Purpose ecoSaver Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: E100055.00

Selected accessories will also be added to cart
$499.97 / Each
Quantity:
ODP, 56C Frame, 115/230VAC Single Phase 60Hz, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC:691720991022Weight:27.00 LB
Packaged Length:13.75 INPackaged Width:7.88 IN
Packaged Height:8.75 IN

Nameplate Specifications

Output HP:0.75 HpOutput KW:0.56 kW
Frequency:60 HzVoltage:115/230 V
Current:7.2/3.6 ASpeed:3515 rpm
Service Factor:1.25Phase:1
Efficiency:76.2 %Power Factor:89.2
Duty:ContinuousInsulation Class:B
Design Code:NKVA Code:K
Frame:S56CEnclosure:Drip Proof
Thermal Protection:AutomaticAmbient Temperature:40 ?C
Drive End Bearing Size:6203Opp Drive End Bearing Size:6203
UL:RecognizedCSA:Y
CE:YIP Code:12

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:2Rotation:Selective Counterclockwise
Resistance Main:0 OhmsMounting:Round
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:NEMA 56Overall Length:11.49 in
Frame Length:7.50 inShaft Diameter:0.625 in
Shaft Extension:1.87 inAssembly/Box Mounting:F1 ONLY

Speed & Load Characteristics

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up28.60794.053.10292.000.000.00.75
Locked-Rotor28.77799.054.12297.000.000.00.75
Full Load3.60100.018.20100.03,5150.7489.20.75
Break-Down13.22367.051.00280.03,1002.6486.90.75

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %135 %150 %
Current (Amps)1.361.732.262.923.604.084.404.735.22
Rated Output (KW)0.120.260.410.580.740.850.920.991.10
Efficiency (%)0.055.269.774.176.276.676.576.376.2
Power Factor (%)36.765.879.486.089.290.290.891.291.5
Speed (RPM)3,5953,5753,5553,5353,5153,5003,4903,4803,465
Temp. Rise @ FL0.00.00.00.030.00.035.00.00.0
Torque (ft-lbs)0.004.559.1013.6518.2020.9322.7524.5727.30
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Frame
56C
Enclosure
ODP
Horsepower
3/4HP
