/Products/Electric Motors/Single Phase/Leeson Single Phase Electric Motors/ecoSaver/Drip Proof, C-Face with Base/E113700.00 Leeson 1.5HP General Purpose ecoSaver Electric Motor, 1800RPM
Click Image to Expand

Product ID: E113700.00

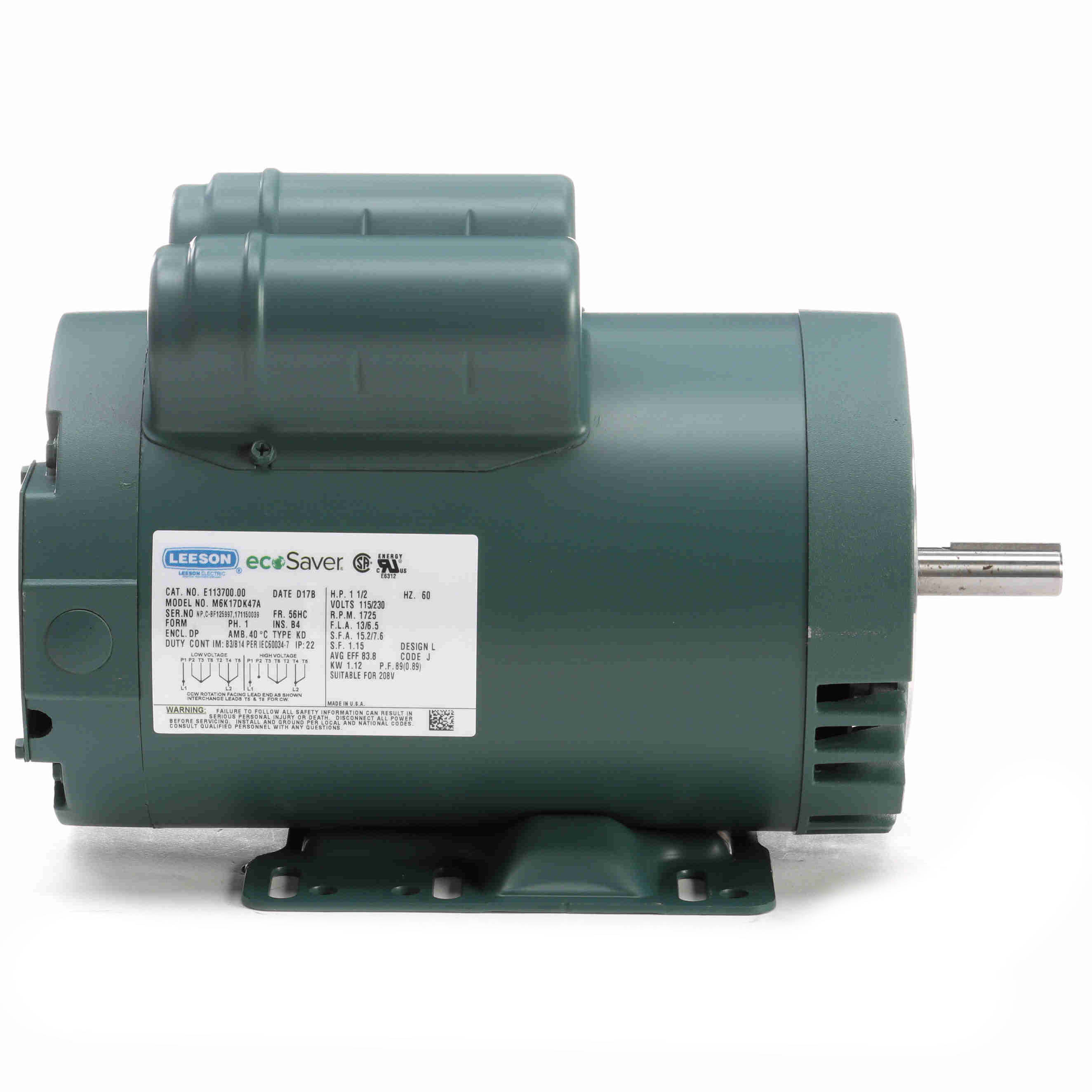

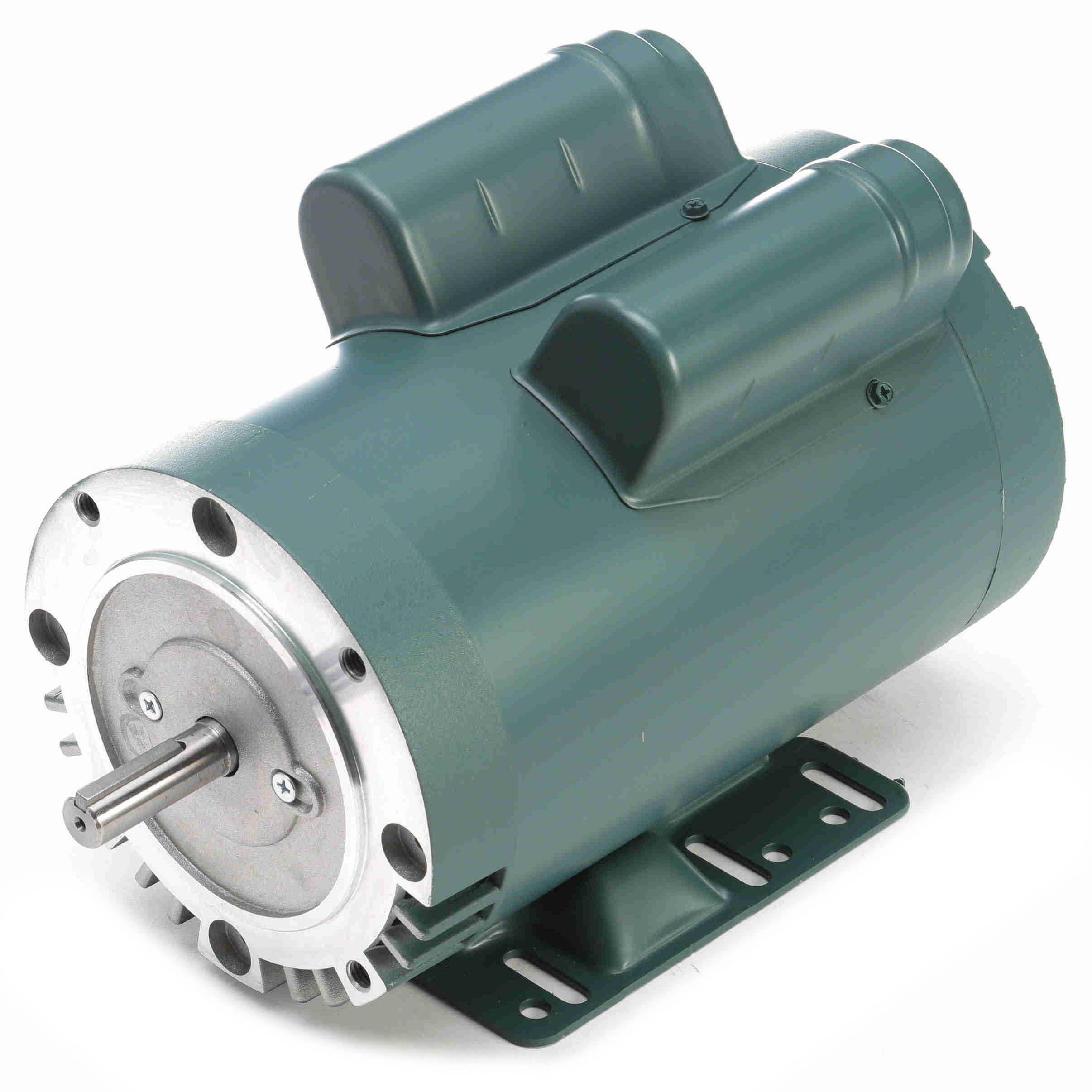

E113700.00 Leeson 1.5HP General Purpose ecoSaver Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: E113700.00

Selected accessories will also be added to cart
$819.97 / Each
Quantity:
ODP, 56HC Frame, 115/230VAC 60Hz Single Phase, C-Face, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Durable rolled steel construction
  • NEMA design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

UPC:691720991152Weight:41.00 LB
Packaged Length:14.63 INPackaged Width:11.25 IN
Packaged Height:8.13 IN

Nameplate Specifications

Output HP:1.50 HpOutput KW:1.1 kW
Frequency:60 HzVoltage:115/230 V
Current:13.0/6.5 ASpeed:1725 rpm
Service Factor:1.15Phase:1
Efficiency:83.8 %Power Factor:89
Duty:ContinuousInsulation Class:B
Design Code:LKVA Code:J
Frame:56HCEnclosure:Drip Proof
Thermal Protection:ManualAmbient Temperature:40 °C
Drive End Bearing Size:6203Opp Drive End Bearing Size:6203
UL:RecognizedCSA:Y
CE:NIP Code:22

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:Across The Line
Poles:4Rotation:Selective Counterclockwise
Resistance Main:0 OhmsMounting:Rigid Base
Motor Orientation:HorizontalDrive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:NEMA 56Overall Length:12.87 in
Frame Length:8.00 inShaft Diameter:0.625 in
Shaft Extension:1.88 inAssembly/Box Mounting:F1 Only

Speed Characteristics

CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)(%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down46.70722.013.26295.08649.1886.01.50
Locked-Rotor47.20730.012.43276.008.9982.51.50
Pull-Up46.64721.011.15248.03308.9983.61.50
Full Load6.47100.04.50100.01,7551.3591.51.50

Load Characteristics

% of Rated Load0 %25 %50 %75 %100 %115 %125 %
Current (Amps)2.402.773.735.006.477.358.00
Rated Output (KW)0.150.400.691.021.351.551.69
Efficiency (%)0.070.682.583.483.082.782.4
Power Factor (%)27.563.680.588.391.592.492.7
Speed (RPM)1,8001,7851,7751,7651,7551,7481,743
Temp. Rise @ FL0.00.00.00.00.00.00.0
Torque (ft-lbs)0.001.132.253.384.505.185.63
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1.5HP
Frame
56HC
