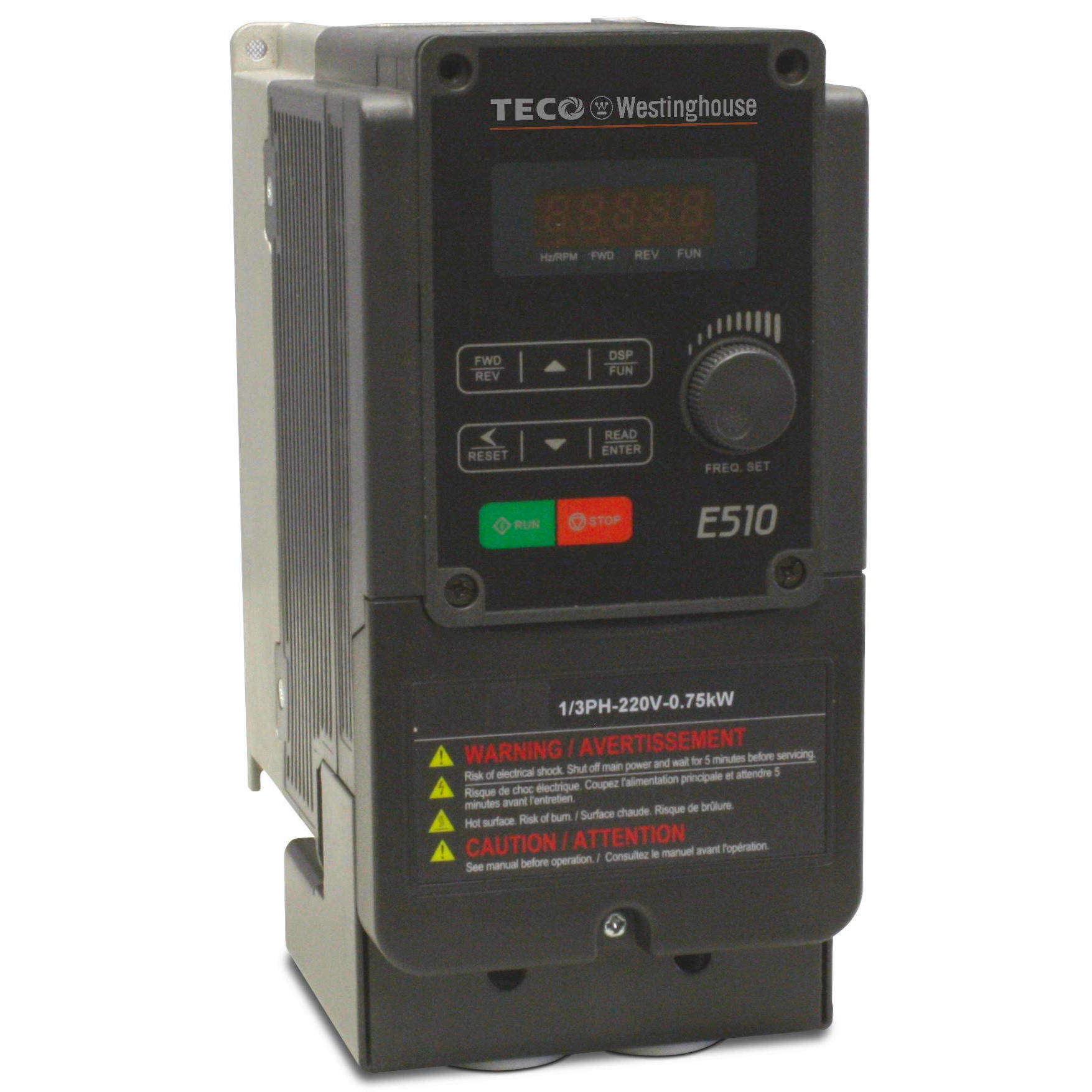

E510-405-H3-U Teco-Westinghouse Compact AC Drive
Enlarge Photo

Product ID: E510-405-H3-U

E510-405-H3-U Teco-Westinghouse Compact AC Drive

MFG: TECO-Westinghouse
MFG Part Number: E510-405-H3-U

Selected accessories will also be added to cart
$456.84 / Each
Quantity:
5 HP, 9.2 Amps, 460V, 3-Phase Input/Output, NEMA 1 Enclosure, 8.29 x 5.07 x 6.00"
Accessories
Select any of the accessories below to purchase them with this inventory item:

Description :

The E510 Compact AC Drive is an easily configured drive that controls many applications. Its compact size is convenient for retrofitting or replacing an older generation variable frequency drives. From simple fixed speed set ups to applications requiring permanent magnet motors, the E510 meets your process and machine requirements. This product replaces Teco-Westinghouse’s legacy product the N3.

Specifications :

Manufacturer Teco-Westinghouse
Model Number E510-405-H3-U
Cross Reference Replaces N3-405-C-U
Dimensions 8.29" Height
5.07" Width
6.00" Depth
Approximate Weight 5.5 lbs
Enclosure NEMA 1
IP20
Frame Size 2
Input Voltage 380-480VAC
50/60 Hz
3-Phase
Output Voltage 0-480VAC
0-599Hz
3-Phase
Horsepower 5 HP, Constant Torque
5 HP, Variable Torque
Output Amps 9.2 Amps, Constant Torque
9.2 Amps, Variable Torque

Inputs and Outputs :

Digital Inputs 6 Configurable digital inputs
Over 39 available selections
Assign each as normally open or normally closed
24V power supply
Pulse Input
Digital Outputs 2 Relay outputs
Over 20 available selections
Assign each as normally open or normally closed
One SPDT, one SPST
250VAC/1A or 30VDC/1A
Analog Inputs 2 Analog Input Channels
Select either as 0-10VDC or 4-20mA
Adjustable gain and bias on each channel
Speed reference or PID feedback
Analog Outputs 1 Analog output
0-10VDC
5 available configurations
Adjustable gain and bias
Safety Input Dedicated safety input (factory jumpered)
RS-485 Select Modbus RTU or BACNet

Features :

  • Parameters grouped by function
  • Built-In PLC Functionality
  • PID Process Control Loop
     Sleep Mode
     0-10VDC or 4-20mA feedback
     Loss of feedback/tracking detection
  • Built-in Modbus & BACnet Protocols
  • 5 Digit Operator’s Keypad with Speed Pot
     Scalable display
     Programming parameteres
     Diagnostics monitoring
  • tal and Analog Inputs and Outputs have Extremely Fast (~4 msec) Update Time
  • Auto Run Mode (Cyclic Operation)
  • Power Loss Ride Through
  • Automatic Voltage Regulation (AVR)
  • Complies with IEC 60018-2-78, UL, cUL, CE, & RoHS

Applications :

  • Conveyors
  • Mixing Equipment
  • Fans and Blowers
  • Pumps
  • Lathes and Mills
  • AC Contactor Replacement
