Available Stock: 4

Selected accessories will also be added to cart

$497.97 / Each

Quantity:

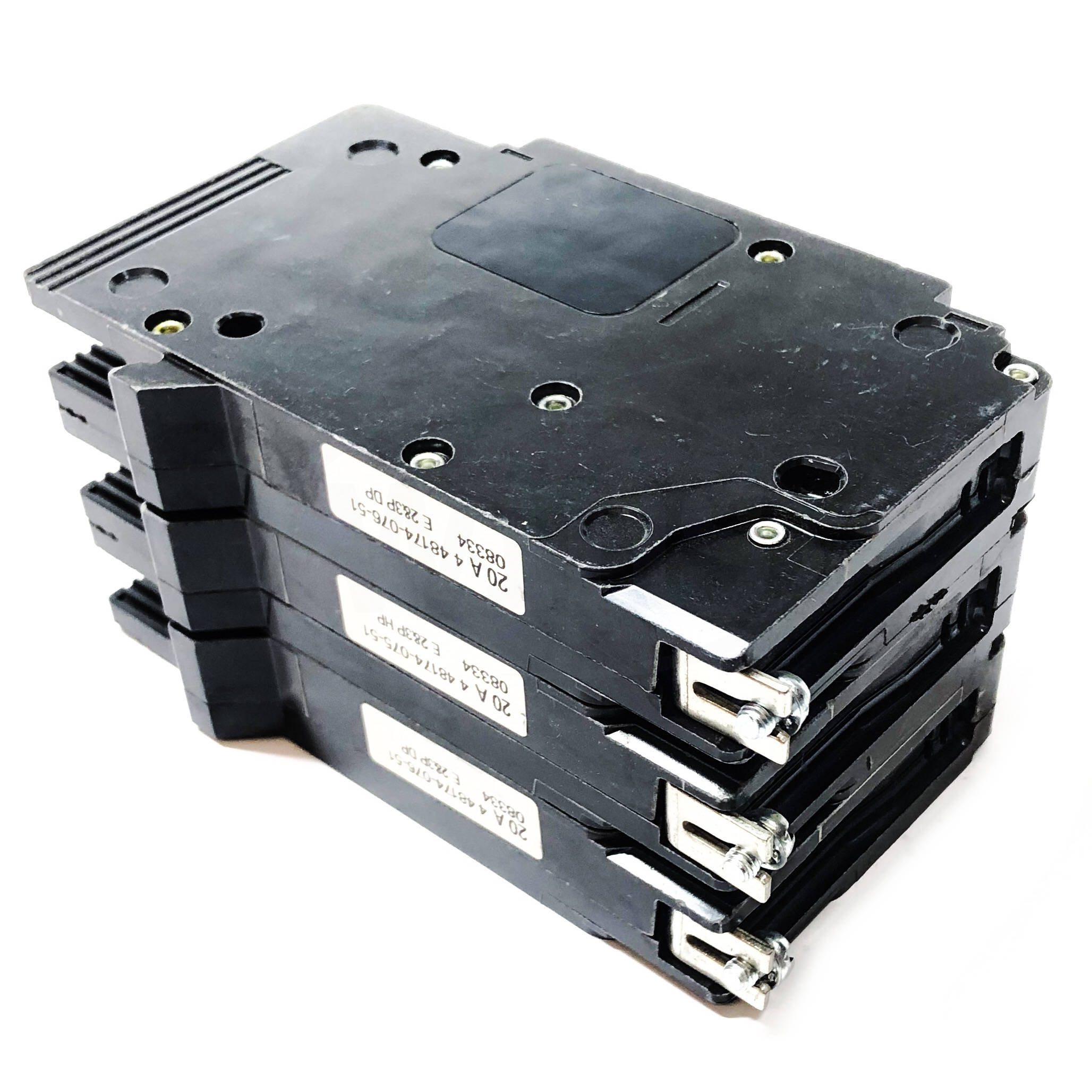

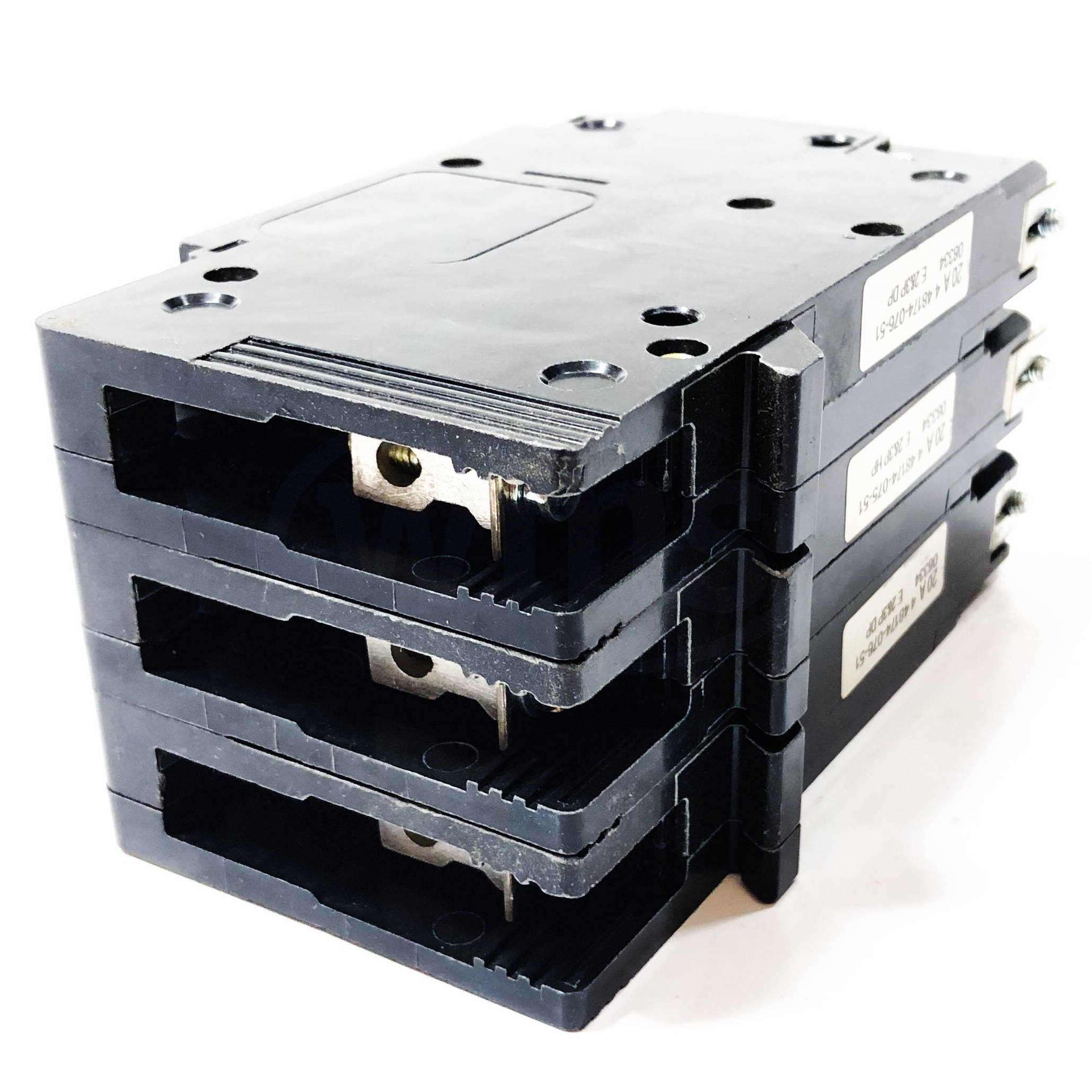

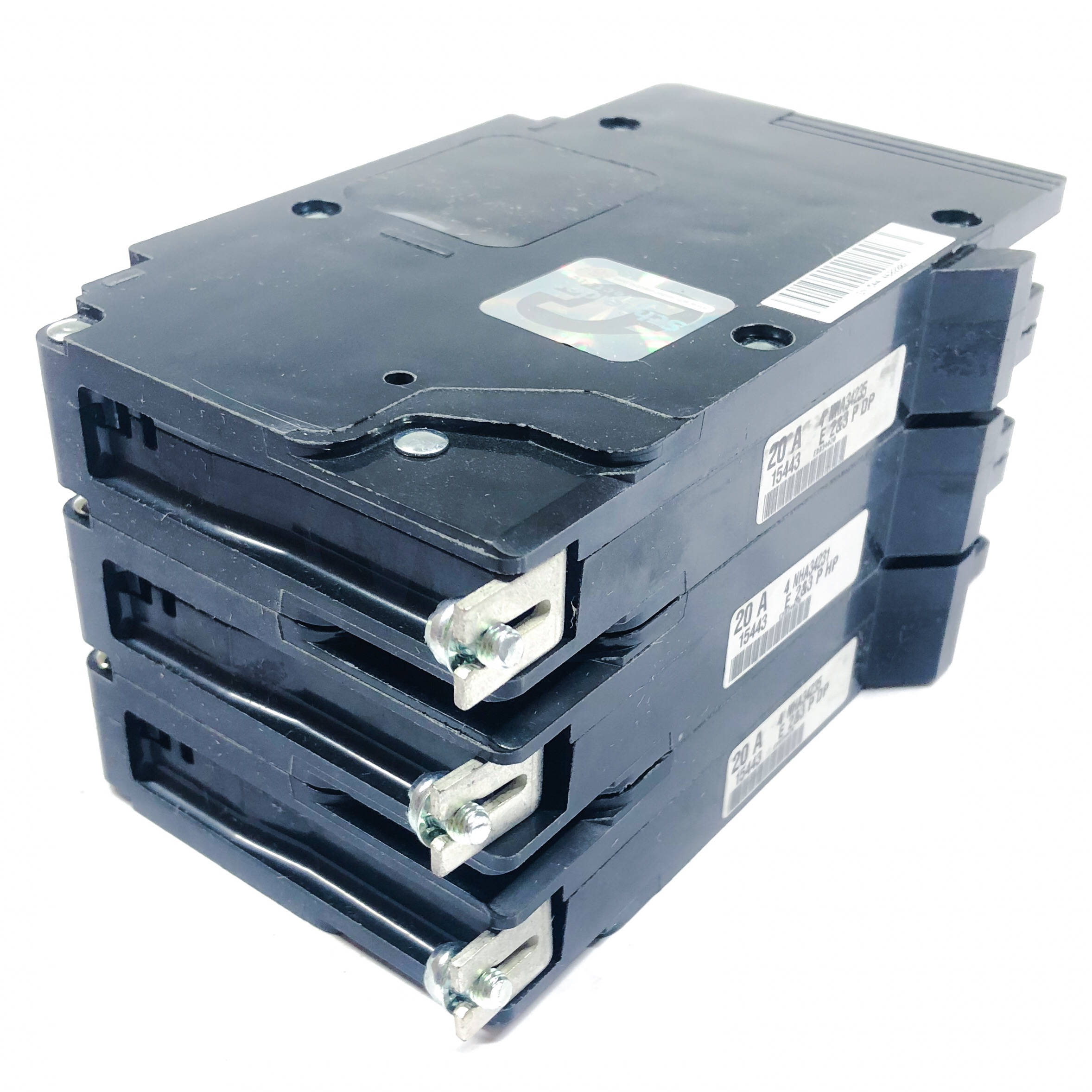

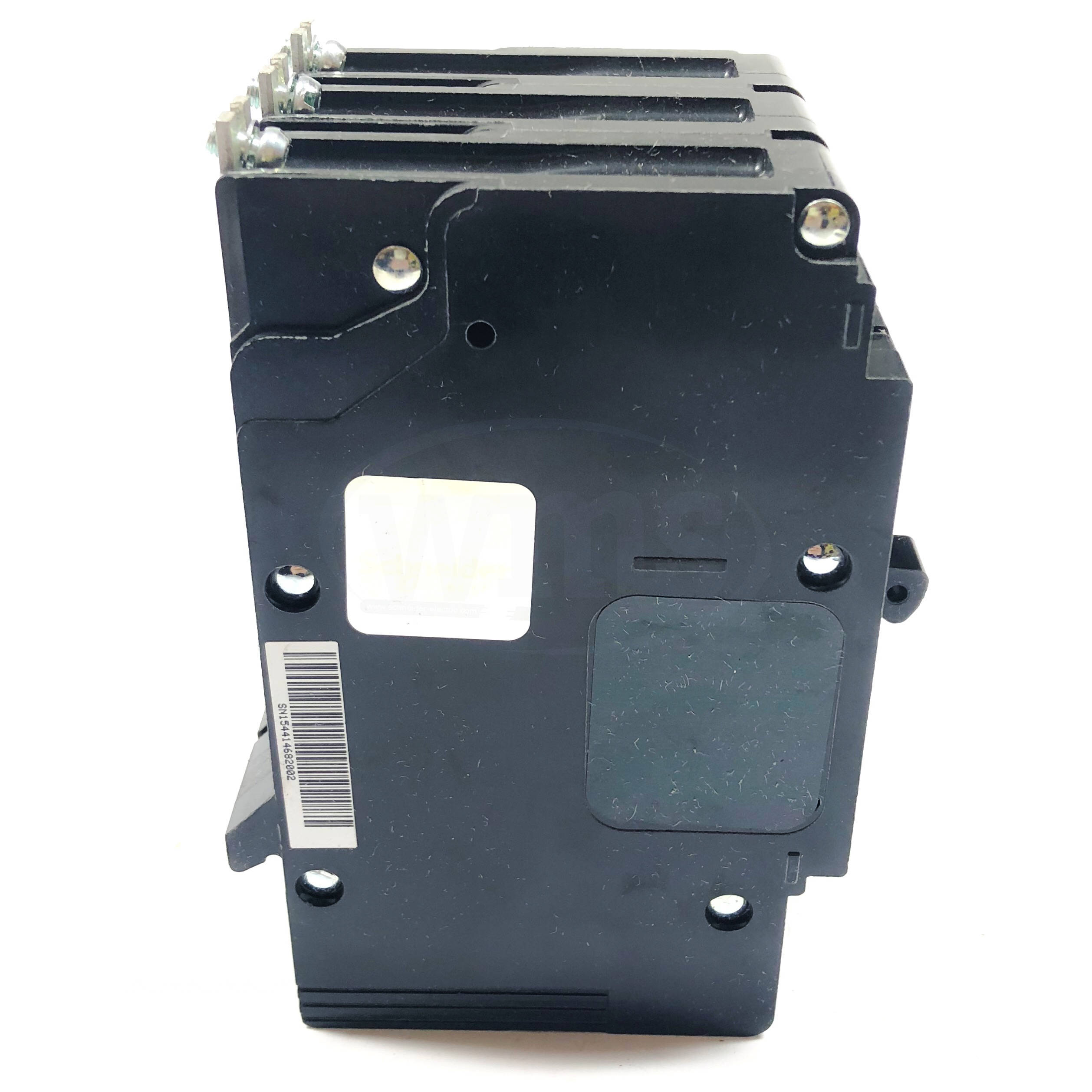

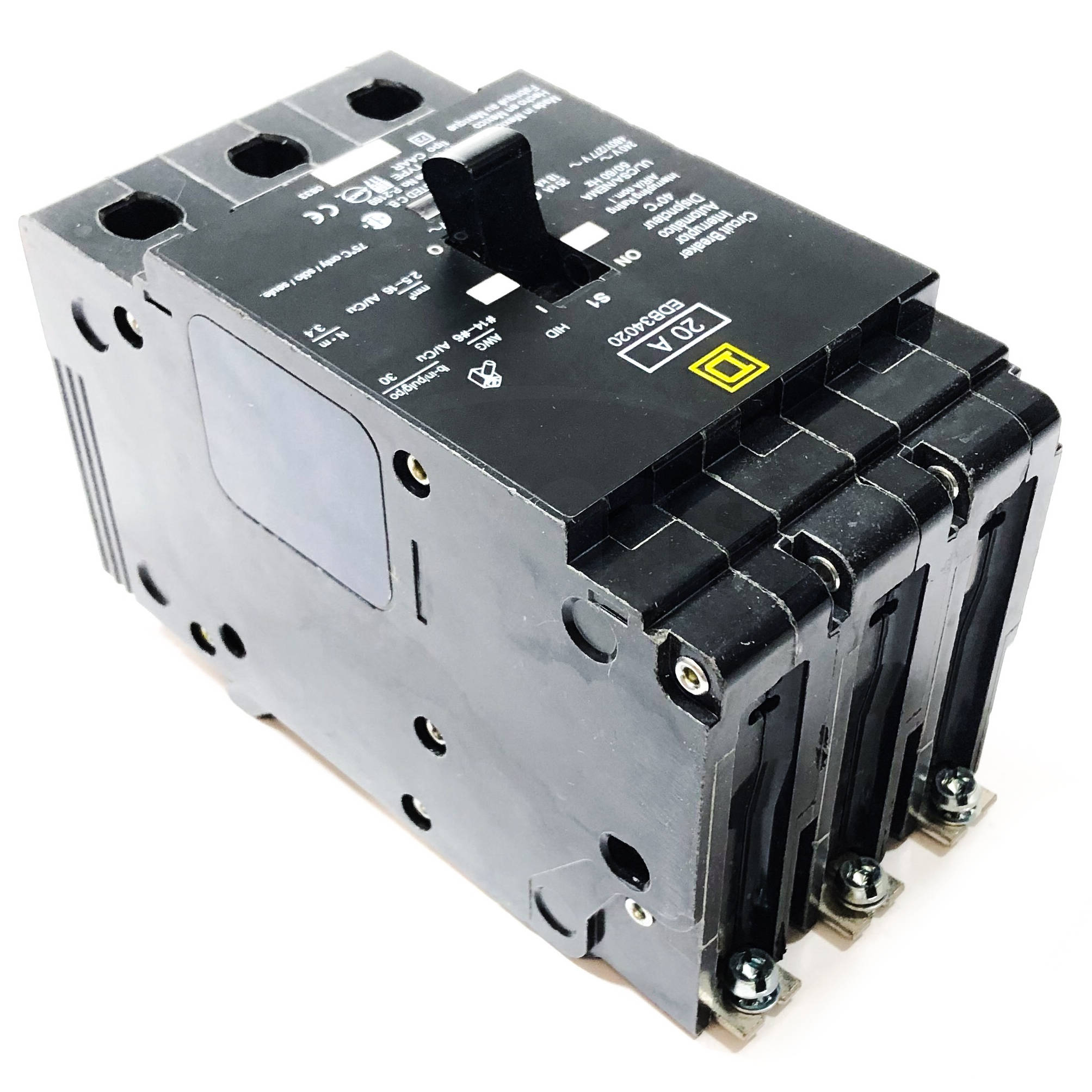

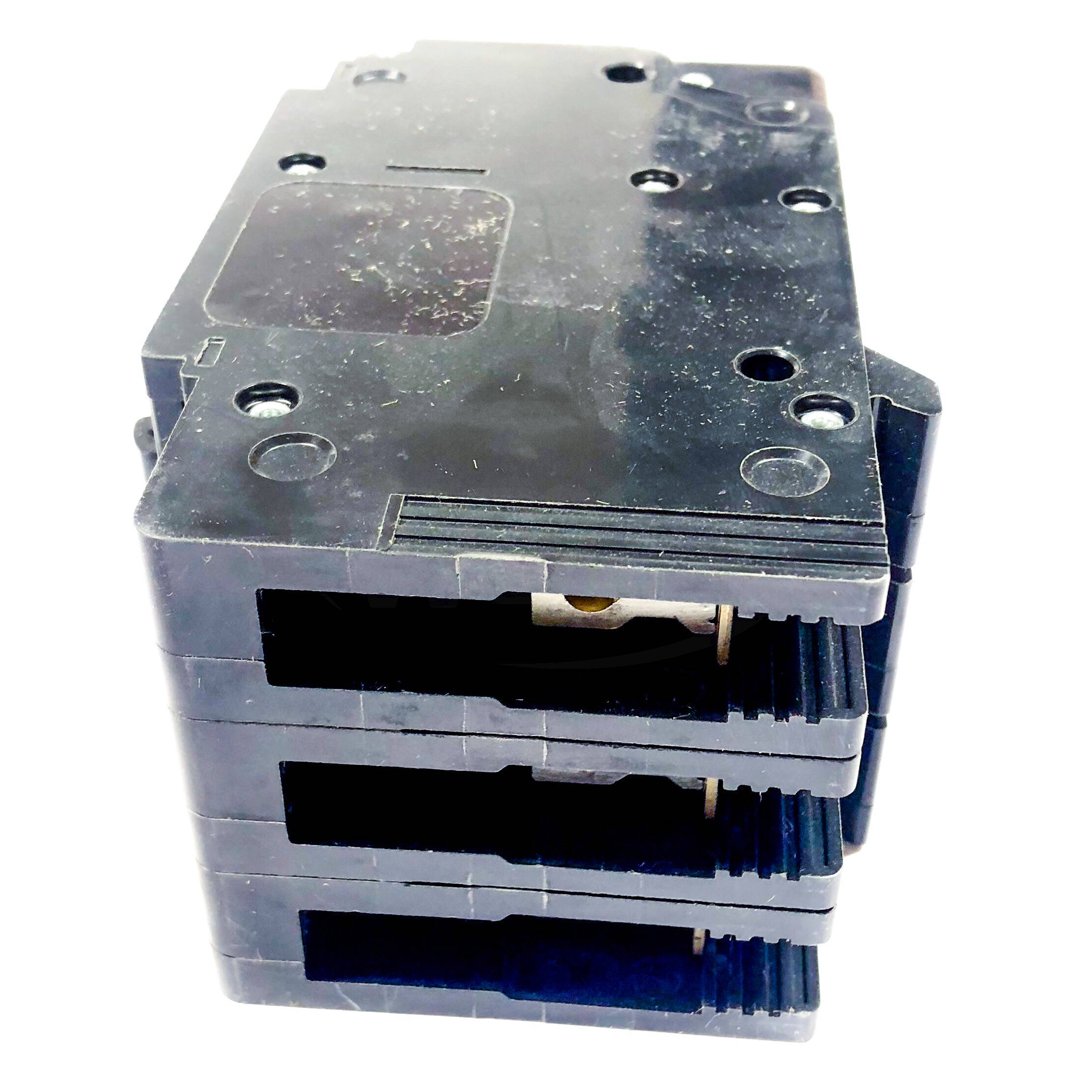

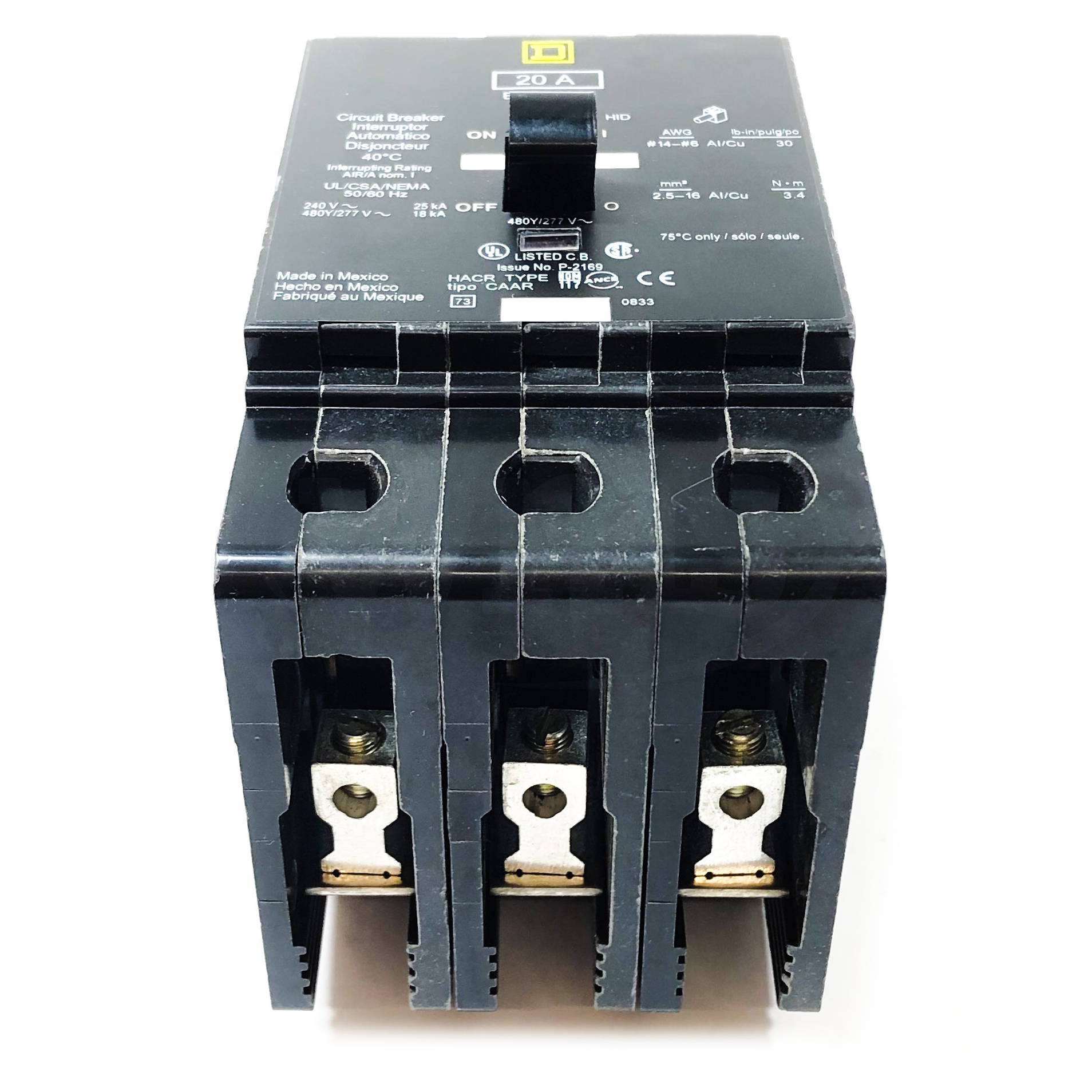

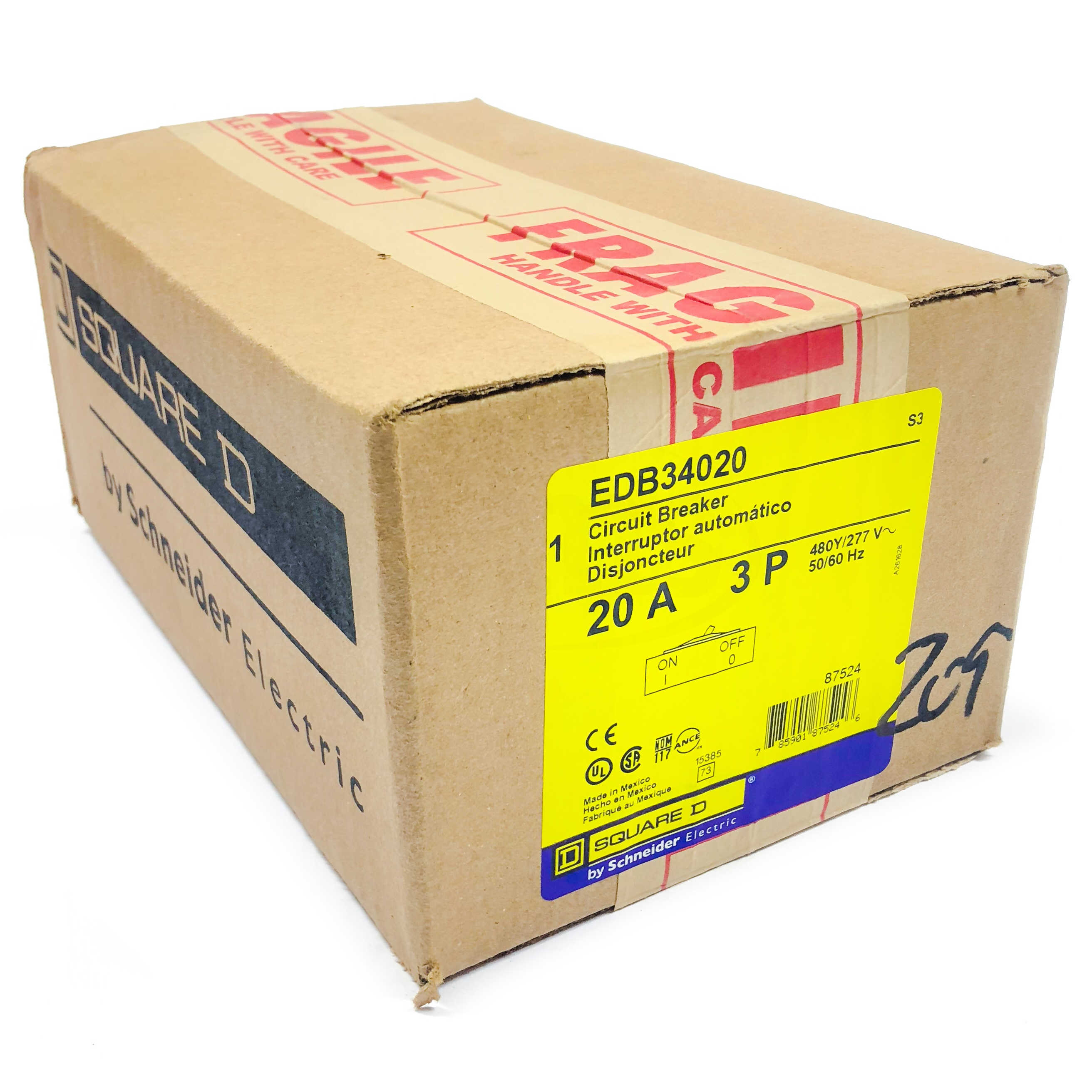

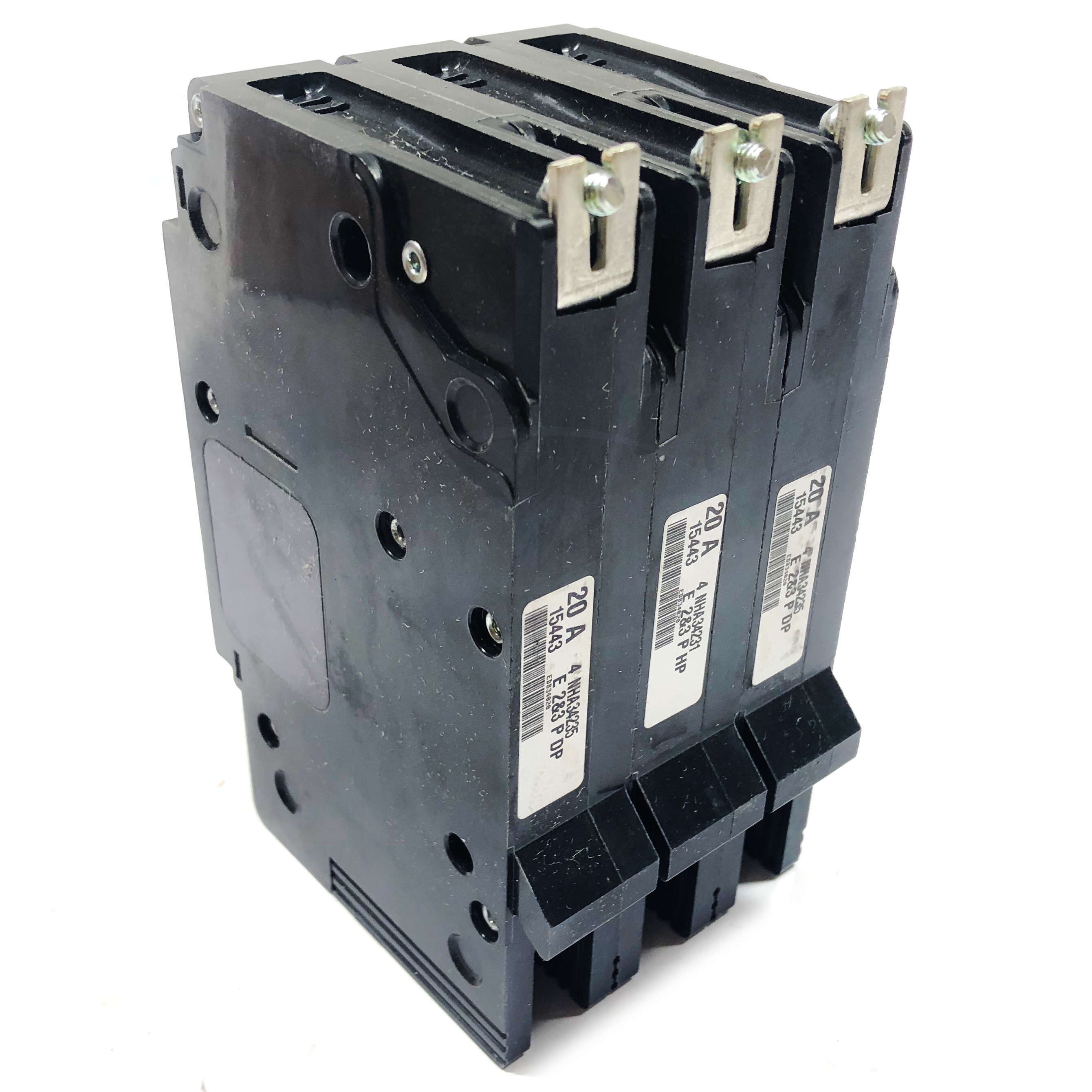

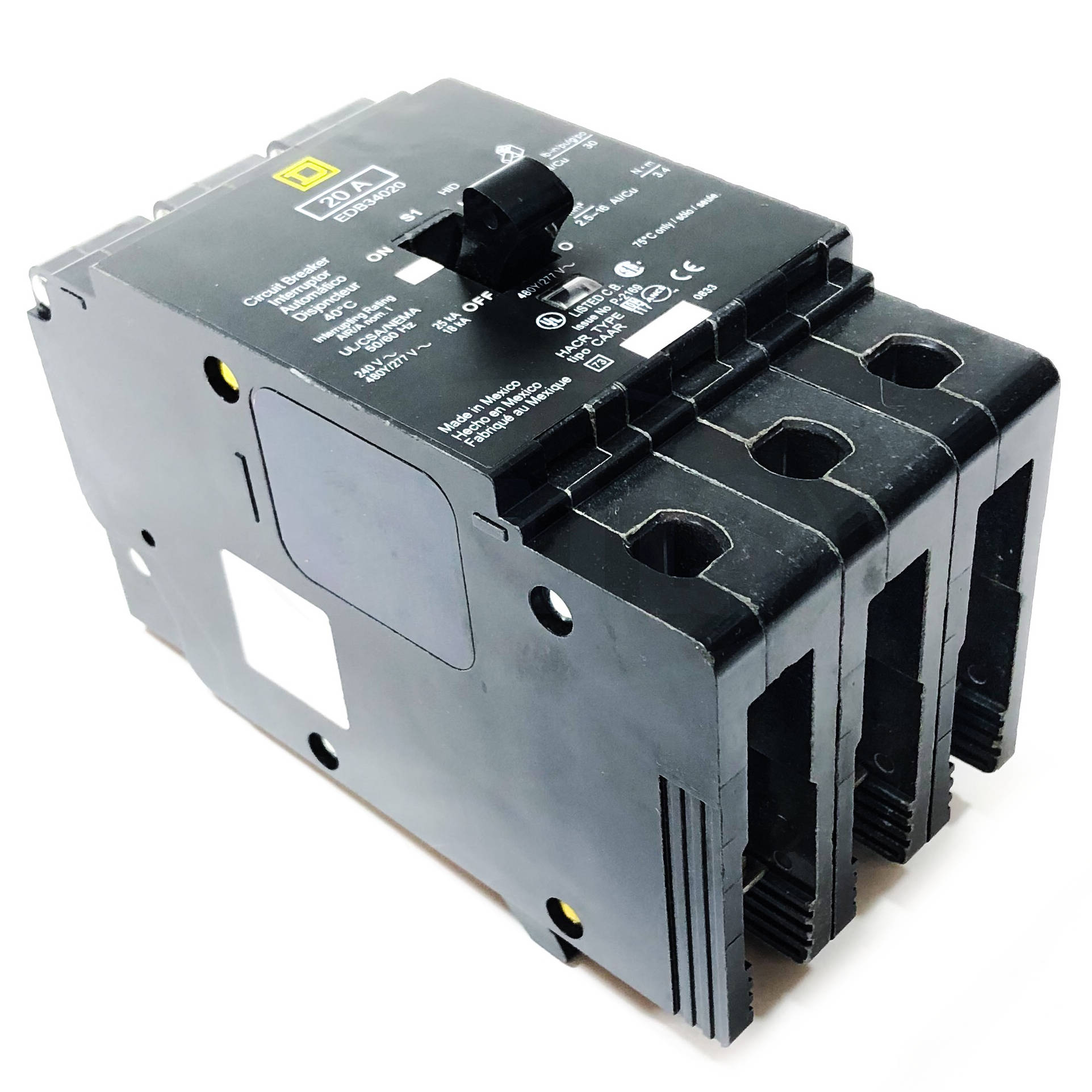

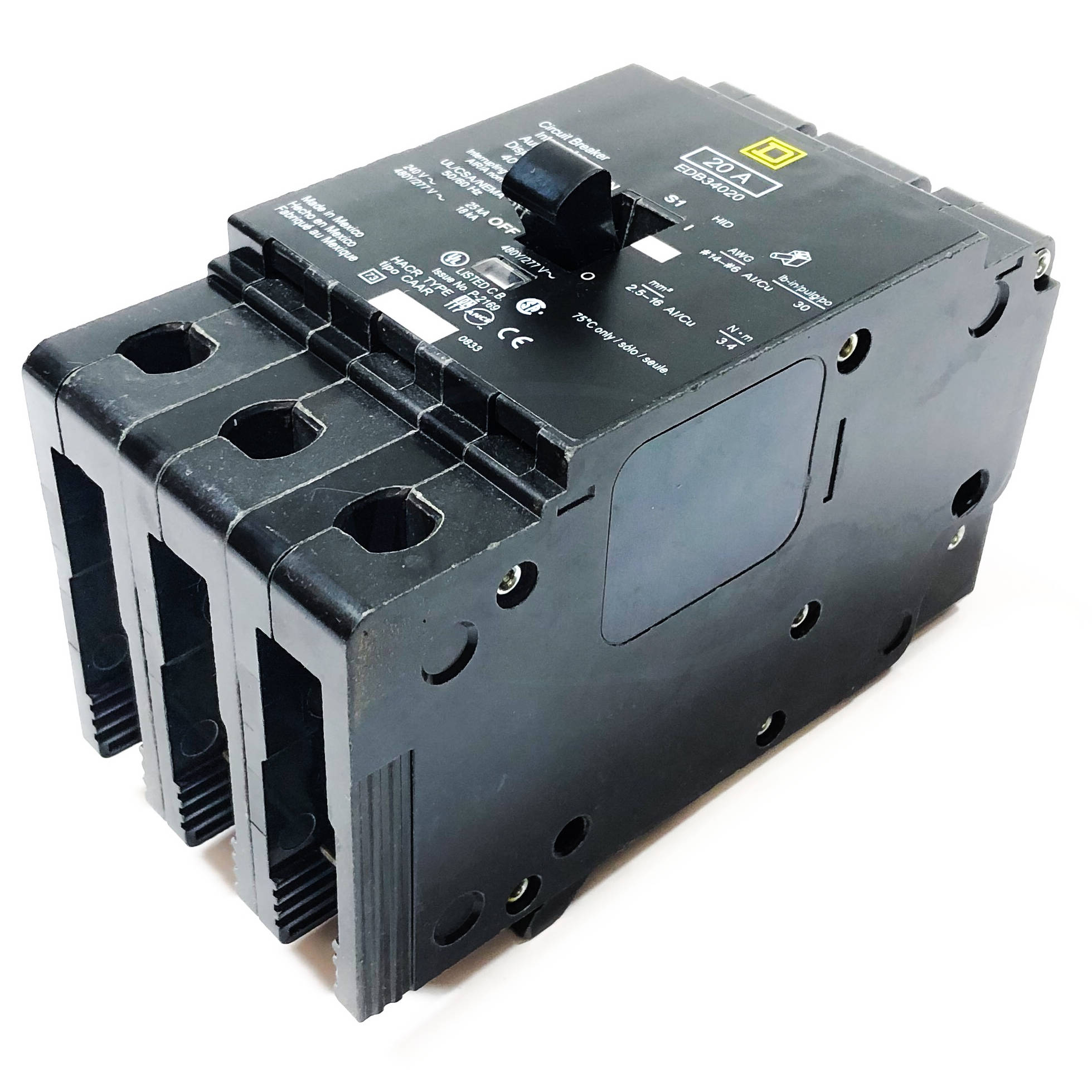

New, Surplus Stock. 480Y/277VAC 50/60Hz, 87524

Complementary
Line Rated Current	20 A
System Voltage	480Y/277 V AC
AWG gauge	AWG 14...AWG 6 copper AWG 12...AWG 6 aluminium
breaking capacity	18 kA 277 V AC 18 kA 480Y/277 V AC 25 kA 120 V AC 25 kA 120/240 V AC 25 kA 240 V AC
circuit breaker application	HACR rated HID rated
depth	4.05 in
electrical connection	Lugs aluminium
height	5.66 in
holding current	270 A
local signalling	Trip indicator
mounting mode	Bolt-on
number of poles	3
number of spaces	3
number of spaces required	3
product destination	Panelboard NF
product weight	4 lb(US)
protection type	Short-circuit Overload
width	2.94 in
trip unit technology	Thermal-magnetic
breaking capacity code	D

Environment
product certifications	cULus
ambient air temperature for operation	104 °F (40 °C)
