Available Stock: 4

Selected accessories will also be added to cart

$499.97 / Each

Quantity:

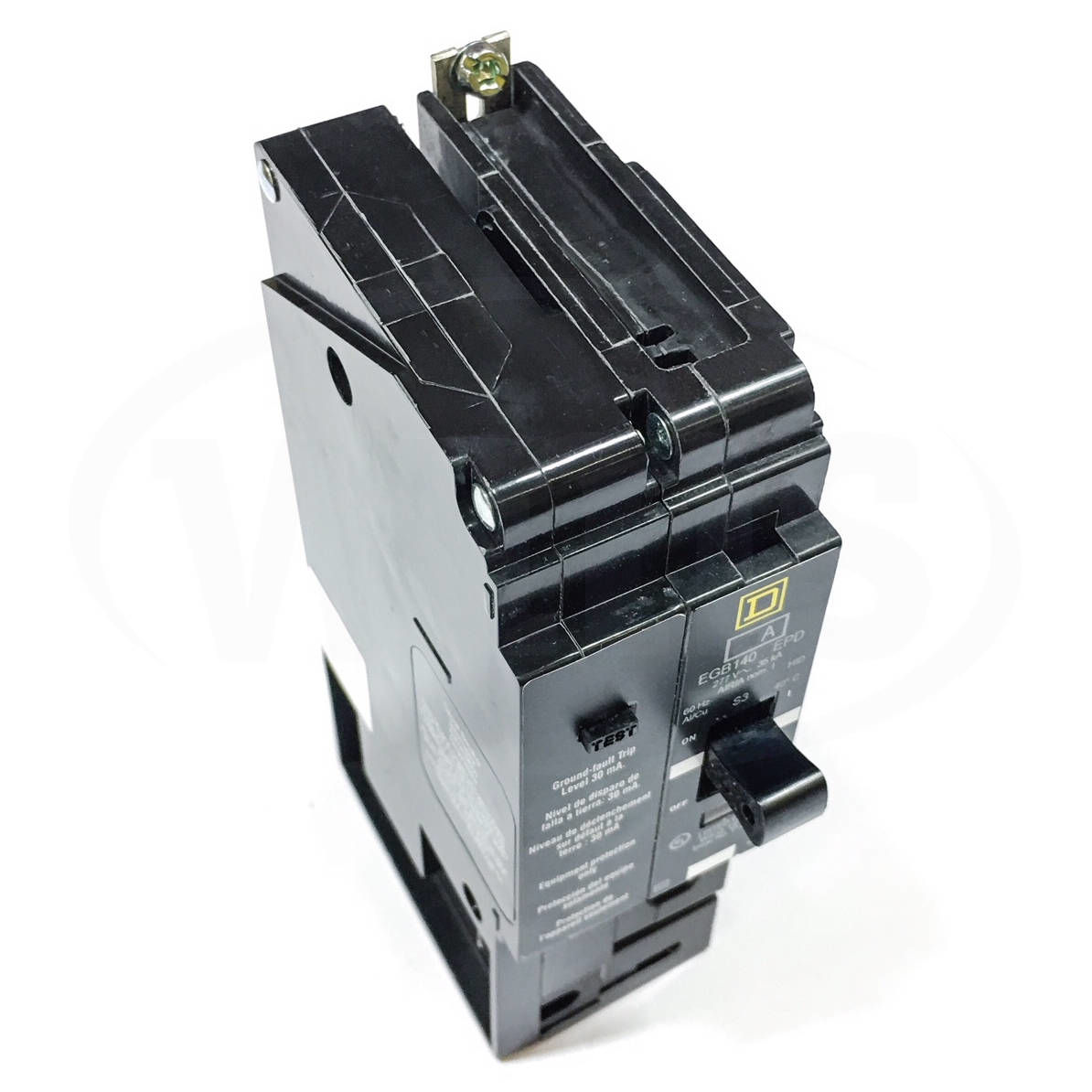

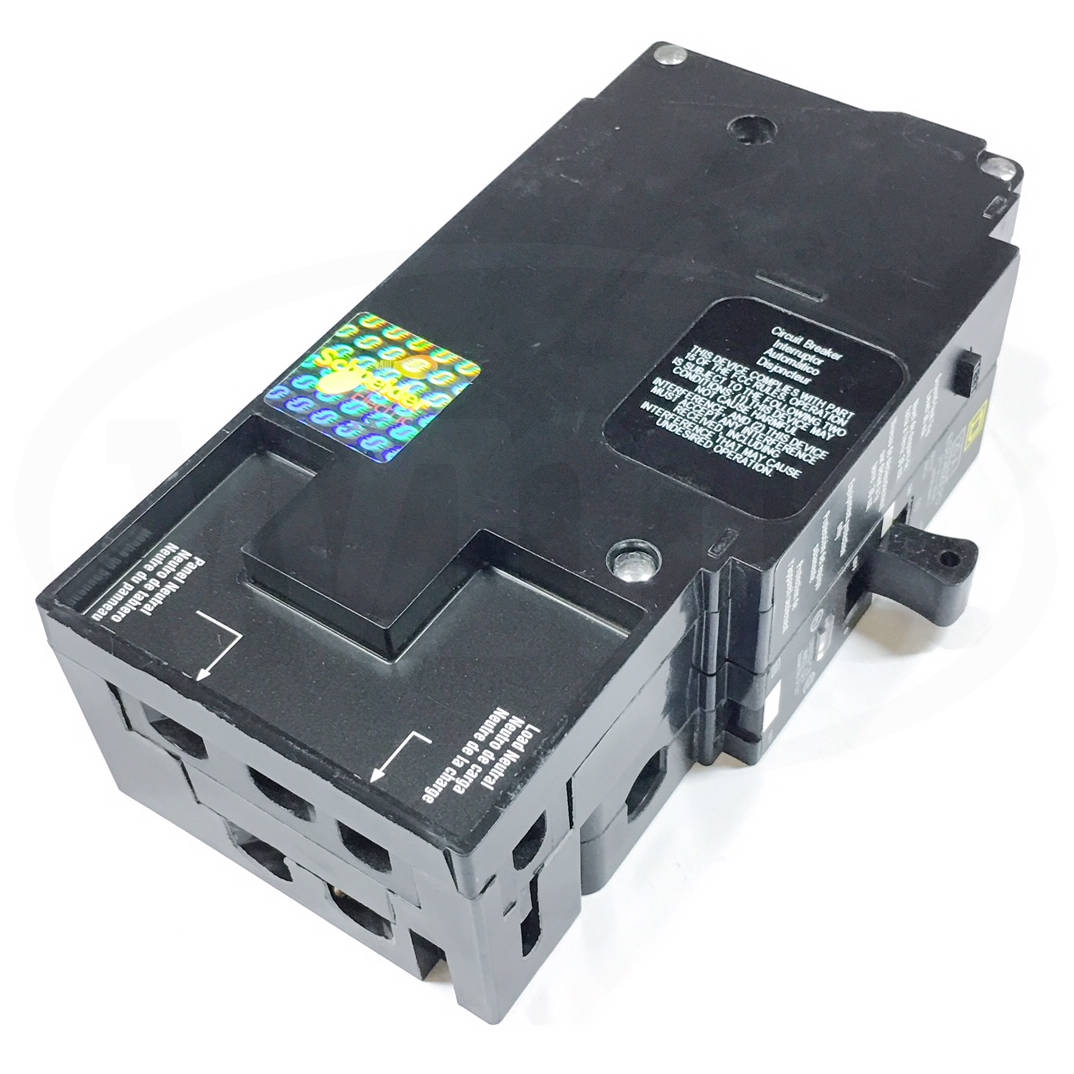

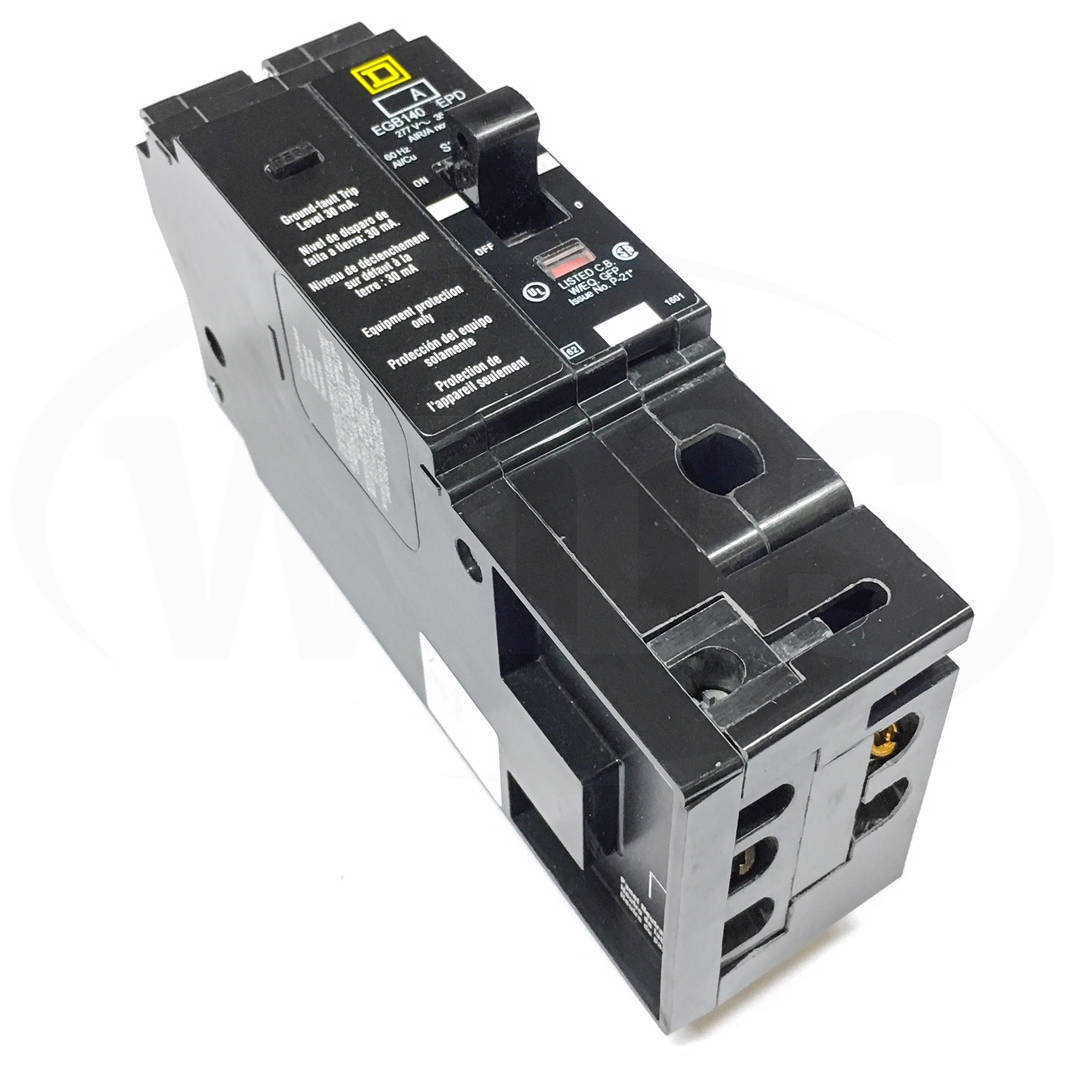

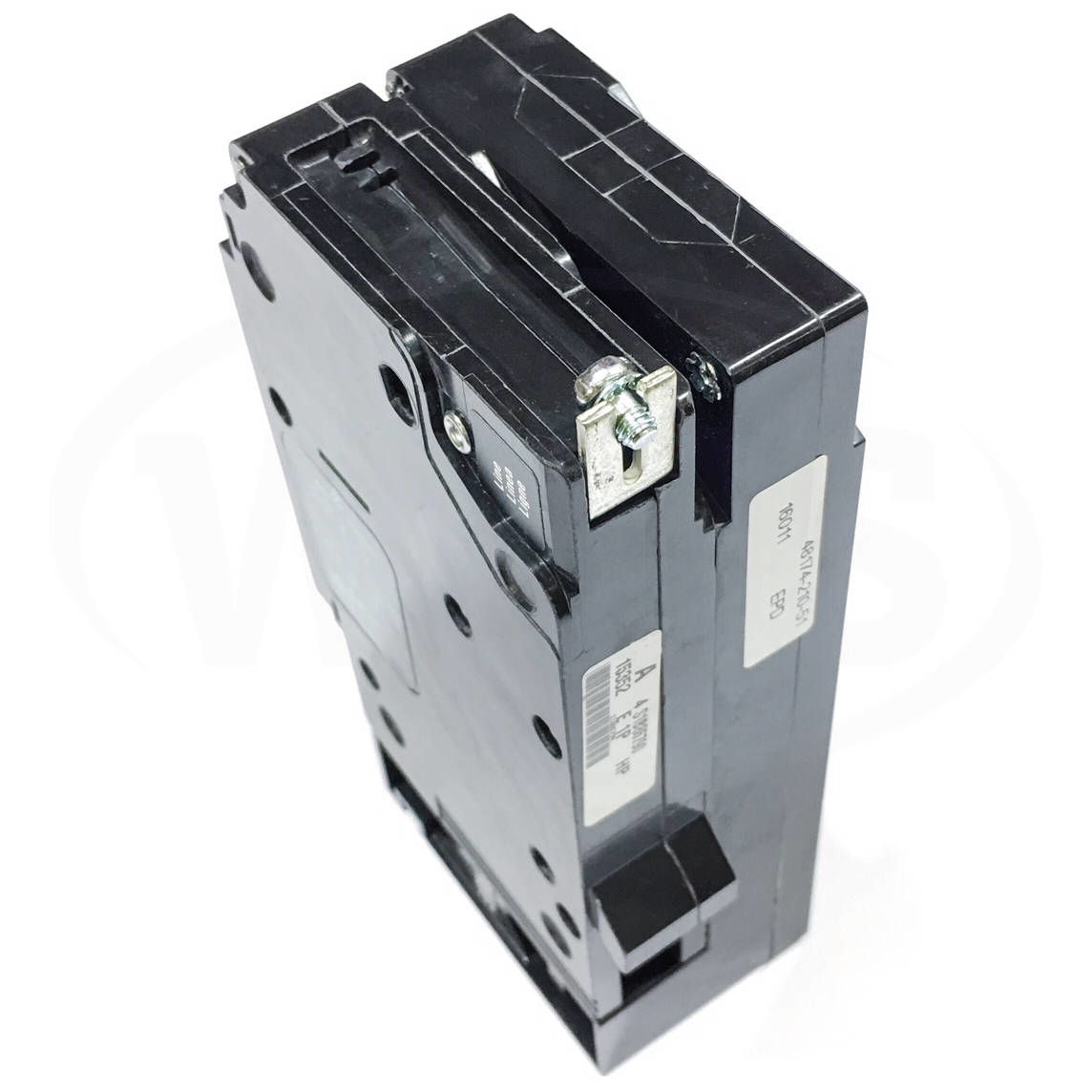

New, Surplus Stock. 1-Pole, 277VAC 60Hz, GFI

Main
range of product	125 A Frame EDB-EGB-EJB
product or component type	Miniature circuit-breaker
device short name	EGB
earth-leakage protection class	Class B
module type	E-Frame
trip unit rating	875 A

Complementary
Line Rated Current	15 A
System Voltage	277 V AC
AWG gauge	AWG 14...AWG 6 copper AWG 12...AWG 4 aluminium
breaking capacity	35 kA 277 V AC 35 kA 240 V AC 65 kA 120 V AC 35 kA 120/240 V AC
circuit breaker application	HACR rated Switching Duty rated HID rated
depth	4.05 in
earth-leakage sensitivity	30 mA
electrical connection	Lugs
height	6.64 in
holding current	270 A
local signalling	Trip indicator
mounting mode	Bolt-on
number of poles	1
number of spaces	2
number of spaces required	2
product destination	Panelboard NF
product weight	2 lb(US)
protection type	Short-circuit Overload
width	1.96 in
trip unit technology	Thermal-magnetic
breaking capacity code	G

Environment
product certifications	cULus
ambient air temperature for operation	104 °F (40 °C)
